Description

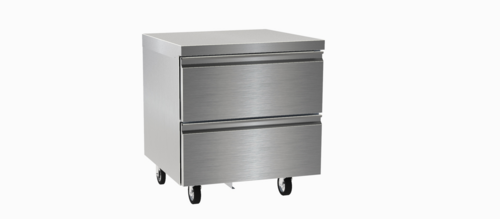

Delfield D4432NP-12M Mega Top Refrigerated Prep Tables
Product Description
Model D4432NP-12M • 10.1 cu ft • 12-Pan Capacity
Keep ingredients fresh, organized, and within easy reach. Delfield's front-breathing Mega Top drawer base slides into tight kitchen spaces, while its patented air screen locks in cold air, even with the lid open during a busy service.
Key features:
- The refrigeration system is located at the rear, allowing the unit to be placed against a wall or other surfaces without requiring additional clearance on the sides or back.
- The patented air screen keeps the pan rail temperature between 33-41°F, maintaining the freshness of the stored food items without drying them out.
- Includes 12 sturdy, 1/6-size, 4-inch-deep poly pans, along with positive-placement adapter bars for easy pan management.
- The 8-inch-wide, dishwasher-safe polyethylene cutting board spans the full 32-inch width of the unit, providing a convenient work surface.
- The top, front, and sides are made of 22-gauge stainless steel, with dent-resistant ABS interior liners, backed by a lifetime warranty.
- The dual-level pan brackets allow you to lower the pans an extra inch, improving temperature holding capabilities.
- The high-efficiency R290 hydrocarbon refrigeration system with a 0.3 HP compressor and ACT electronic control ensures reliable performance.
- Mounted on 5-inch swivel casters (with the front two being locking) and equipped with a 10-foot cord and NEMA 5-15P plug for easy mobility and placement.
- Certified for open food storage, with cULus, UL-EPH, and NSF 7 listings.
Perfect for:
- Pizzerias and sandwich shops that need maximum cold storage in a small space.
- Quick-serve or ghost-kitchen businesses that require equipment that can be placed directly against walls.
- Food trucks or cafés seeking energy-efficient R290 refrigeration.
Product Specs
| Specification | Value |
|---|---|
| Pan rail capacity | 12 × 1/6-size, 4" deep pans (included) |
| Storage volume | 10.10 ft³ (286 L) |
| Drawers | 2 (top: 2 × 12" × 20" × 4–6"; bottom: 2 × 12" × 20" × 4") – pans not included |
| Exterior dimensions | 32.13" W × 31.50" D × 44.50" H (36" to work surface) |
| Work surface | Poly board 32" W × 8" D × 0.5" H |
| Temperature range | Cabinet 33–40 °F | Pan rail 33–41 °F @ 86 °F ambient |
| Compressor | 0.3 HP, front-breathing |
| Refrigerant | R290 hydrocarbon |
| Electrical | 115 V / 60 Hz / 1 Ph, 4.0 A, NEMA 5-15P (10' cord) |
| Casters | 5" plate casters, front locking (2.5" floor clearance) |
| Construction | Stainless steel exterior & ABS interior sides; foamed-in-place polyurethane insulation |
| Ship weight | 293 lb (133 kg) |
| Warranty | 3-yr parts & labor • 5-yr compressor • 10-yr drawer tracks • Lifetime ABS liners |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Brand Name | Mega Top |
| Certifications | NSF, UL |
| Height | 44.5in |
| Width | 32.13in |
| Depth | 31.5in |
| Shipping Weight | 293.0lbs |
| Width (side - side) | 32" - 35" wide |
| Compressor Style | front breathing |
| Sections | 1 section |
| No of Drawers | 2 drawers |
| Refrigeration | self-contained, rear mounted |
| Pan Capacity (Top) | 12 pan |
| Exterior Finish | stainless steel front, top & sides |
| Access Type | drawers |
| Specifications | Mega Top Refrigerator, single-section, 32" W, 10.10 cubic feet, (2) drawers, stainless steel top with polyethylene cutting board & (12) 1/6 size plastic pans, ABS interior sides, stainless steel front & sides, 5" casters, front-breathing rear-mounted refrigeration system, R290 Hydrocarbon refrigerant, 0.3 hp, cUL, UL, NSF |
