Description

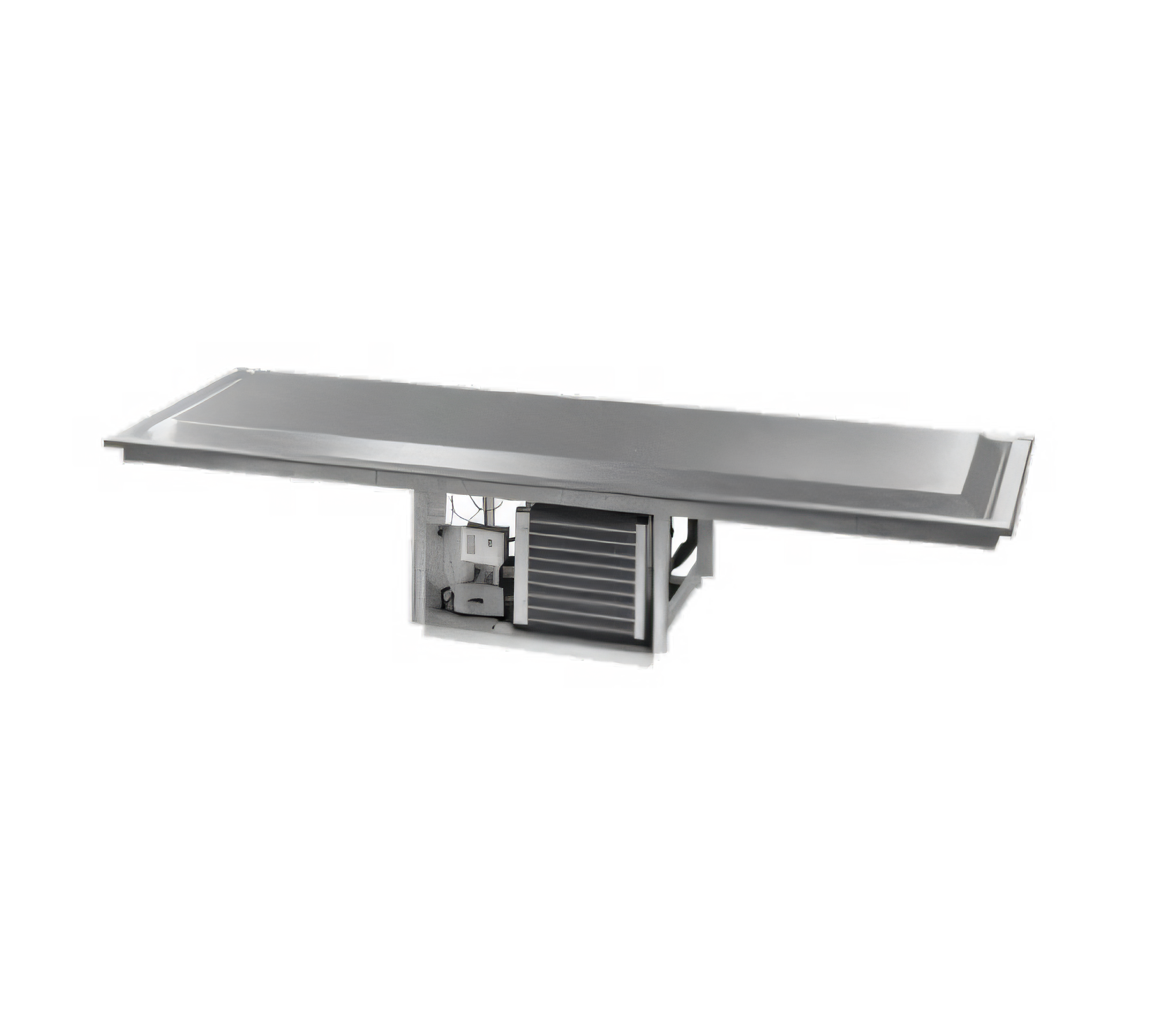

Delfield N8273P Refrigerated Prep Tables
Product Description
This self-contained, stainless-steel frost top with a 1-inch raised surface transforms any counter into an eye-catching, ice-cold display for cakes, pastries, salads, sushi, or grab-and-go beverages without the mess of ice or forced-air wells. The dimensions and amperage may vary slightly based on the production run or optional accessories. For more information on the warranty and coverage, please contact us.
Why you'll love it:
- The 1-inch elevated heavy-gauge stainless-steel top keeps condensation off the counter.
- The full-perimeter drain trough with a 1/2-inch drain speeds up cleanup and prevents puddling.
- The generous 2-inch overhang creates a clean, integrated look.
- The high-density polyurethane foam insulation locks the cold where it belongs.
- The GreenGenius™ R290 refrigeration system delivers powerful cooling with low environmental impact.
- The factory-installed push-in perimeter gasket drops straight into new or existing cut-outs, without requiring a silicone bead.
- The on/off toggle switch and 8-foot cord with a NEMA 5-15P plug allow for true plug-and-play installation.
- The included stainless-steel louver is for field-installed airflow.
- It is cULus & NSF certified for safe food contact and electrical compliance.
Quick install checklist:
- Make sure to provide the listed cut-out and maintain at least 1 inch of space around the louvered side for air flow.
- Route the 1/2 inch drain line to a floor sink or condensate evaporator.
- Plug the unit into a dedicated 15-amp, 120-volt electrical outlet - no hard-wiring is required.
- Turn on the toggle switch and wait 30-45 minutes for the surface to frost before loading any product.
Product Specs
| Specification | Value |
|---|---|
| Exterior cut-out required | 72 3⁄8 in. × 25 in. (184 cm × 64 cm) |
| Display surface (raised top) | Approx. 65 in. × 18 in. (165 cm × 46 cm) |
| Compressor | 1⁄3 HP, self-contained |
| Refrigerant | R290 (eco-friendly propane blend) |
| Electrical | 115 V / 60 Hz / 1 Ph, 5.0 A, NEMA 5-15P |
| Clearance below counter | 8 in. (20 cm) to bottom of compressor assembly |
| Top elevation | 1.68 in. (4 cm) above counter surface |
| Drain connection | ½ in. ID stainless-steel |
| Shipping weight | ≈ 210 lb (95 kg) |
| Certifications | cULus, NSF 7 |
| Warranty | 1-year parts & labor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Certifications | NSF, UL |
| Height | 15.75in |
| Width | 73.38in |
| Depth | 26.0in |
| Shipping Weight | 209.0lbs |
| Width (side - side) | 72 - 120 inches |
| Compressor HP | 1/4 HP compressor |
| Depth (front - back) | 25" |
| Specifications | Drop-In Frost Top, stainless steel 1" elevated top with drain trough & 2" overhang, galvanized steel exterior housing, on/off toggle switch, self-contained refrigeration, R290 refrigerant, 1/3 hp, (72-3/8" x 25" cutout required), cUL, UL, NSF |
