Delfield N8275-STP Refrigerated Prep Tables

Product Description

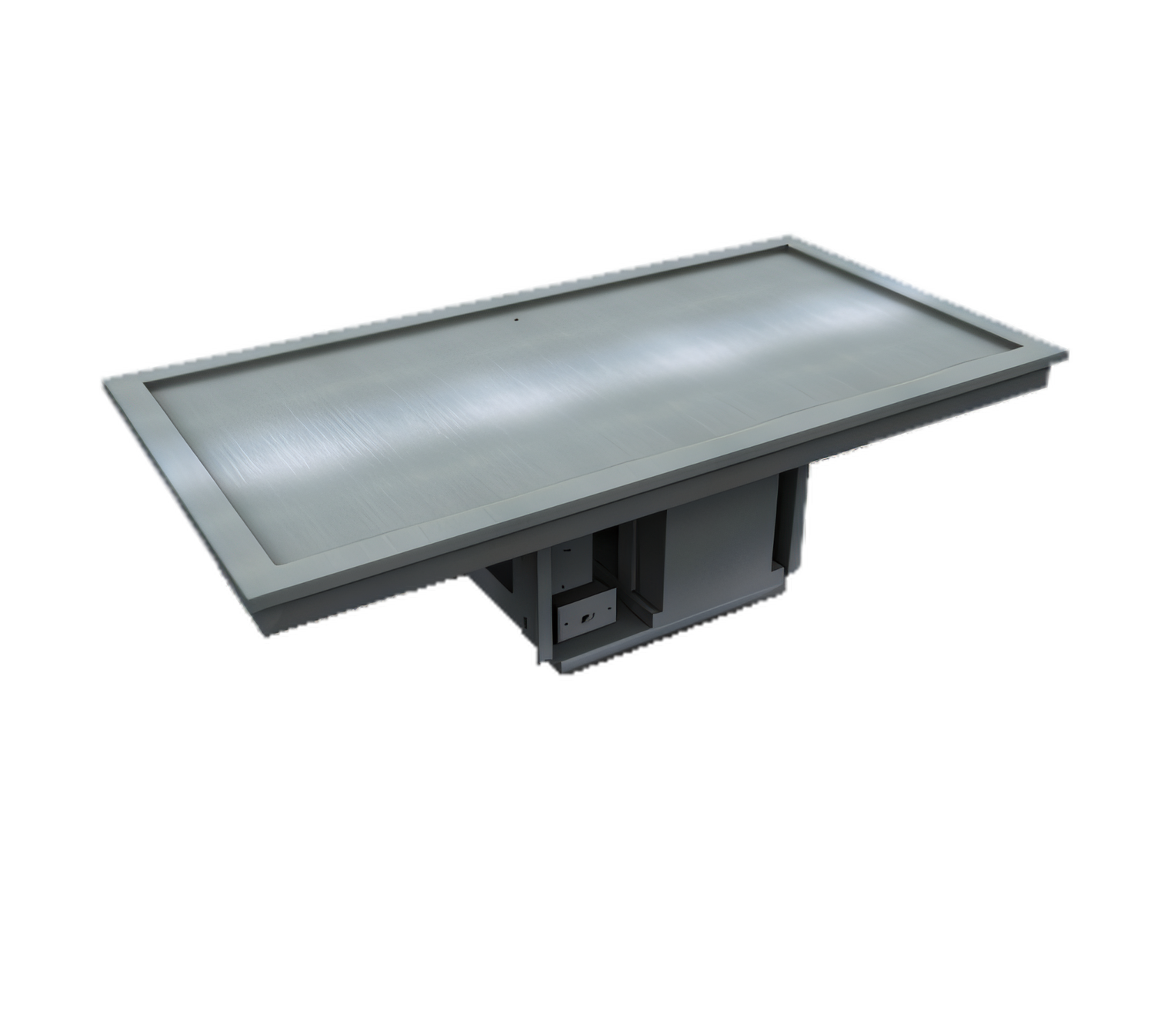

75" self-contained frost top unit holds four 18" × 26" sheet pans (tall left-to-right). Move the product from the cooler to your customer in one simple step. The Delfield N8275-ST keeps an entire 4-pan display ice-cold while sitting flush in your counter for a clean, professional presentation. Built with heavy-duty materials, GreenGenius™ R290 refrigeration and plug-and-play installation features, it's the reliable way to boost merchandising and speed of service on buffets, bakery lines, grab-and-go concepts and more. Installation requires an additional rear air intake/exhaust opening for proper condenser ventilation.

Key features:

  • Fits up to 4 full-size (18" × 26") sheet pans without needing to rearrange them.
  • Uses eco-friendly GreenGenius™ R290 refrigerant that keeps surfaces frosted without harming the environment.
  • Has a 1/3 HP self-contained condensing unit that is factory-mounted for easy installation.
  • Features a one-piece heavy-gauge stainless steel top that is recessed 0.75" to securely hold pans below counter level.
  • Has a heavy-gauge galvanized steel exterior housing that can withstand the demands of busy kitchens.
  • Utilizes polyurethane foam insulation to lock in temperature and reduce energy use.
  • Includes a push-in perimeter gasket that forms a tight, non-marring seal against the counter cut-out.
  • Comes with an ON/OFF toggle switch and an 8' cord with a NEMA 5-15P plug, allowing for a simple drop-in and plug-in installation.
  • Includes a ½" stainless steel drain and a field-installed stainless louver for quick, code-compliant installs.
  • Certified to NSF, UL, and cUL standards for food safety and electrical safety.

Factory options & accessories:

  • Choose between single or double-service flip-up sneezeguards.
  • Install a remote toggle switch assembly that mounts in the counter face.
  • Opt for a compressor relocation or remote refrigeration package.
  • Select a 220 V / 50 Hz electrical configuration.
  • Enroll in extended warranty programs for added protection.

Product Specs

Specification Value
Pan capacity 4 full-size 18" × 26" sheet pans (tall orientation, left-to-right)
Overall length × width 75.50" × 29.60" (192 cm × 75 cm)
Required counter cut-out 74.50" × 28.75" (189 cm × 73 cm)
Top recess 0.75" (1.9 cm) below counter surface
Refrigerant / charge R290 (propane), GreenGenius™ eco-friendly system
Compressor 1/3 HP, air-cooled, self-contained
Voltage / phase 115 V / 60 Hz / 1-phase
Full-load amps 7.5 A
Cord & plug 8' (2.4 m) cord with NEMA 5-15P
Drain connection ½" (1.27 cm) stainless steel
Certifications NSF, UL, cUL
Shipping weight 239 lb (108 kg)

Features

Specification Value
Manufacturer Delfield
Certifications NSF, UL
Height 15.69in
Width 75.5in
Depth 29.6in
Shipping Weight 239.0lbs
Depth (front - back) 30"
Compressor HP 1/4 HP compressor
Width (side - side) 72 - 120 inches
Specifications Drop-In Frost Top, holds 4 sheet pans (tall left to right), heavy-gauge galvanized steel exterior housing, on/off toggle switch, perimeter gasket, self-contained refrigeration, R290 refrigerant, 1/3 HP, (74.50" x 28.75" cutout required), cUL, UL, NSF
