Description

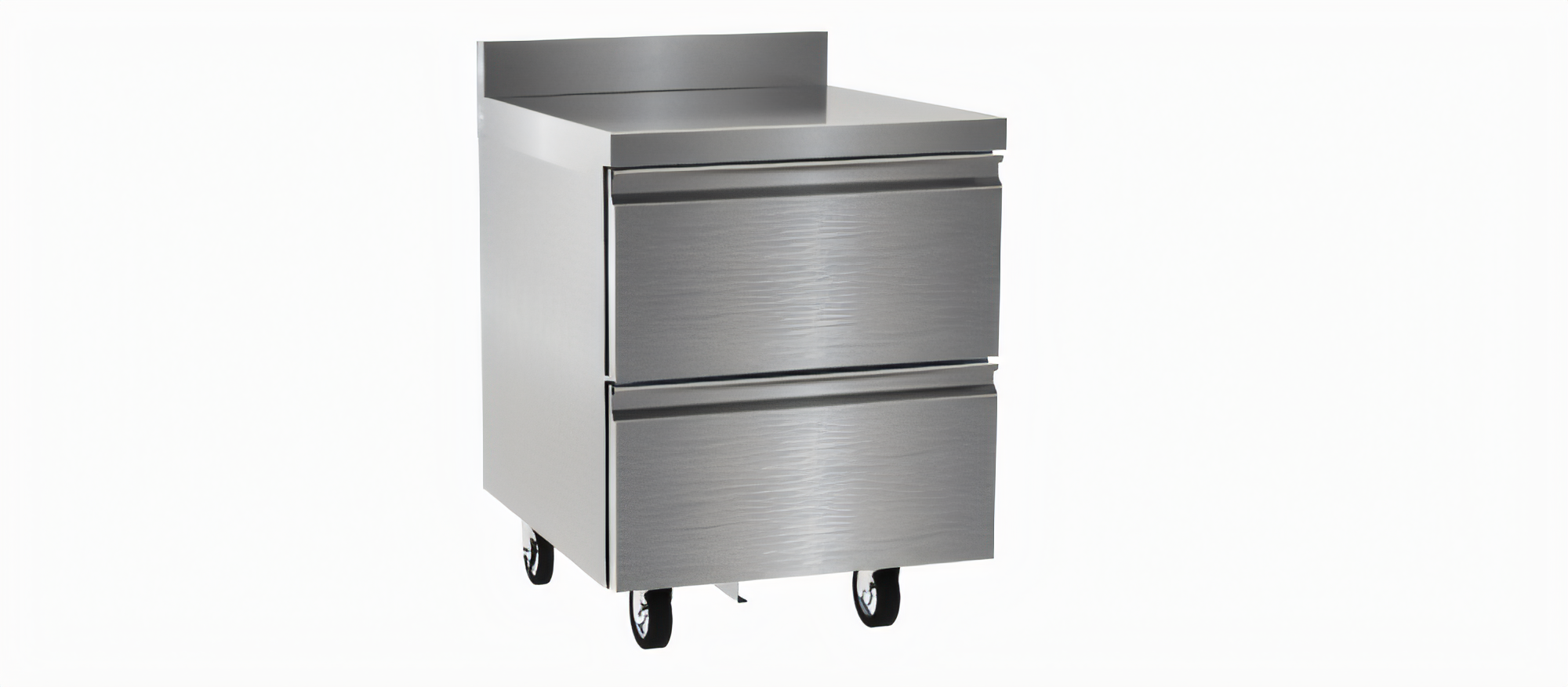

Delfield STD4527NP Undercounter & Worktop Refrigeration
Product Description
The Delfield STD4527NP is a front-breathing, self-contained undercounter freezer base designed for tight kitchen spaces and demanding commercial use. With a compact 27-inch footprint, this freezer can seamlessly fit under counters or alongside existing kitchen equipment. It offers true zero-degree performance and features two heavy-duty drawers, a full-width 4-inch stainless steel backsplash, and a lifetime-backed drawer track system, making it a durable and reliable worktop freezer base choice.
Key benefits:
- The unit can be placed flush against walls or inside cabinets, as it does not require any side or rear clearance.
- The rugged construction includes a 22-gauge stainless steel exterior, 12-gauge drawer frames, and dent-proof ABS interior sidewalls, all covered by a lifetime warranty.
- The two full-extension drawers, also covered by a lifetime track warranty, can each accommodate: - (1) full-size 12" × 20" pan - (3) 1/6-size pans, with the top drawer being 4-6" deep and the bottom drawer being 4" deep (pans not included).
- The ACT solid-state controller maintains a consistent cabinet temperature between 0 °F to 5 °F (-18 °C to -21 °C), even during busy periods.
- The use of environmentally friendly R290 hydrocarbon refrigerant and high-density, foamed-in-place insulation helps reduce energy costs.
- The unit comes with 5" locking casters for easy cleaning and mobility.
- A 10' factory-installed cord and NEMA 5-15P plug allow for a simple plug-and-play setup.
Popular factory options:
- 18-inch single-tier overshelf, which provides additional storage space above the main work surface.
- Composite or poly (plastic) cutting board, offering a durable and easy-to-clean surface for food preparation.
- Stainless steel back panel, providing a sleek and easy-to-clean finish to the unit.
- Lower-height casters or 3-inch casters (4-inch ride), allowing for easier mobility and adjusting the height of the unit.
- Drawer/door lock kit, which secures the contents of the drawers and doors for added safety and security.
- Stacking collar for double-decker installations, enabling you to stack multiple units vertically to maximize your available workspace.
Product Specs
| Specification | Value |
|---|---|
| Model | STD4527NP |
| Type | One-section worktop / undercounter freezer base with 4" backsplash |
| Exterior dimensions* | 27.13" W × 31.50" D × 40.00" H (incl. backsplash) |
| Interior volume | 7.14 ft³ (202 L) |
| Compressor | 0.35 HP, front-breathing, self-contained |
| Refrigerant | R290 (EPA SNAP compliant) |
| Electrical | 115 V / 60 Hz / 1-phase, 5.2 A, NEMA 5-15P, 10' cord |
| Pan capacity | (2) full-size 12" × 20" pans & (6) 1/6-size pans (pans not included) |
| Casters | (4) 5" plate casters, front two locking |
| Ship weight | 245 lb (111 kg) |
| Certifications | NSF 7, UL EPIQ, ENERGY STAR® (refrigerated base series) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Delfield |
| Height | 36.0in |
| Width | 24" - 32" |
| Depth | 31.5in |
| Shipping Weight | 323.0lbs |
| Exterior Finish | all stainless steel exterior |
| Refrigeration | self-contained, rear mounted |
| Access Type | drawers |
| Size | 1 section |
| Specifications | Freezer Worktop/Undercounter, one-section, 27"W, (2) drawers, 4" backsplash |
