Description

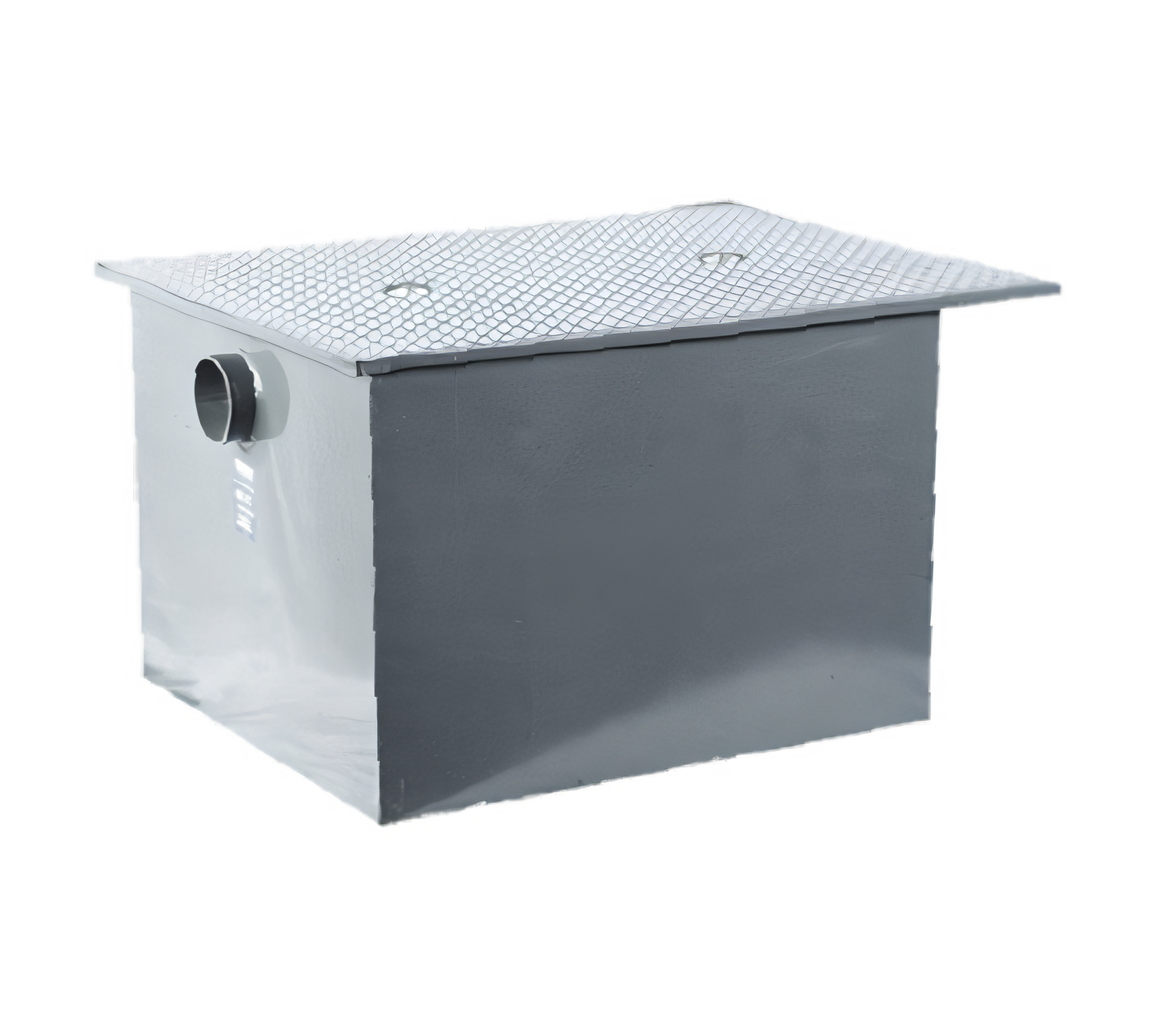

Dormont Manufacturing GI-400-K Watts Grease Interceptors Grease Traps
Product Description
The Watts GI-400-K is a high-capacity epoxy-coated steel interceptor designed for demanding commercial kitchens. With a massive 400 GPM flow rate and 800 lb storage capacity, it's built to handle serious volumes in food-service operations. The rugged, epoxy-coated steel tank drops directly into recessed or floor-mounted installations and arrives ready to plumb with 6" no-hub connections and a factory-installed stainless-steel flow-control plate. The Watts GI-K series interceptors are available in a range of sizes from 75 – 500 GPM, so you can find the right fit for your needs. Contact us for expert sizing assistance.
Features:
- This grease interceptor can handle up to 400 gallons of water per minute while capturing 800 pounds of grease.
- The 6-inch no-hub inlet and outlet connect easily to standard cast-iron soil pipes.
- The integral stainless-steel flow-control plate ensures the water flow is smooth and compliant with building codes.
- The gasketed, skid-proof cover is secured with hex-head center bolts, making it safe to walk on when closed.
- The double-wall deep-seal trap and removable baffle make the interceptor easy to pump out and clean.
- The heavy-duty, epoxy-coated carbon-steel body resists corrosion both inside and out.
- The interceptor is engineered and tested to meet the ASME A112.14.3 performance requirements.
Features:
- Sediment bucket
- Extension sleeve for deeper recess installations
- Floor flange and clamp waterproofing kit
- 10,000-pound traffic-rated cover
- Custom inlet and outlet sizing options
- Stainless-steel construction
- Threaded connections
- Complies with Buy American requirements
Product Specs
| Specification | Value |
|---|---|
| Model | GI-400-K |
| Flow rate | 400 GPM (1,514 L/min) |
| Grease capacity | 800 lb (363 kg) |
| Inlet / outlet size | 6" (152 mm) no-hub |
| Overall length | 83" (2,108 mm) |
| Overall width | 55" (1,397 mm) |
| Overall height | 52" (1,321 mm) |
| Base to center-line | 42" (1,067 mm) |
| Top to center-line | 10" (254 mm) |
| Cover | Gasketed, skid-proof epoxy-coated steel with hex-head bolts |
| Trap configuration | Double-wall deep-seal |
| Flow control | Integral stainless-steel plate |
| Construction | Epoxy-coated carbon steel |
Features
| Specification | Value |
|---|---|
| Manufacturer | Dormont Manufacturing |
| Brand Name | Watts Grease Interceptors |
| Height | 52.0in |
| Width | 83.0in |
| Depth | 55.0in |
| Shipping Weight | 800.0lbs |
| Draw-off | without |
| Flow Rate | 400 GPM |
| Grease Capacity | 500 - 1000 lb |
| Specifications | Watts Grease Interceptor, 400 gallons per minute flow rate, 800 lb grease capacity, 6" inlet & outlet, no hub connections, skid-proof cover with gasket, hex head center bolt(s), removable baffle, double wall deep seal trap, integral stainless steel flow control |
