Description

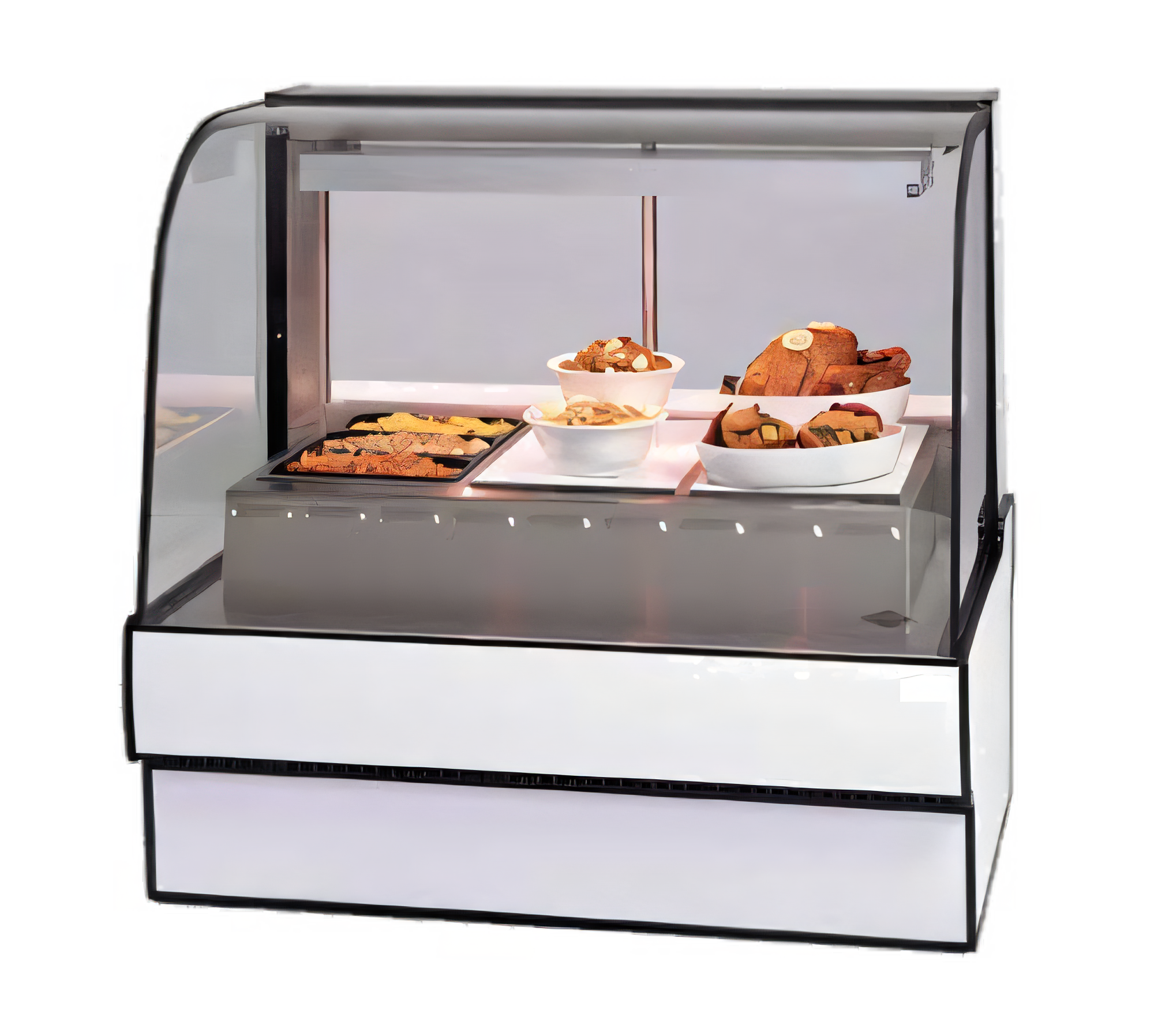

Federal Industries CG5048HD Curved Glass Series Hot Food Displays
Product Description
Give your hot food program the merchandising power it deserves. This self-contained unit combines Federal Industries' signature curved Thermopane glass with independently controlled heating wells and a top-mounted infrared heater. This allows you to keep entrées, sides, and proteins at ideal serving temperatures while maximizing impulse sales, whether using wet or dry heat.
Key Features:
- Three full-size, one-piece stainless-steel wells, each with its own Calrod® element and thermostat for precise temperature control.
- Can be operated wet or dry to suit changing menu requirements.
- Full-length infrared top heater maintains uniform temperatures across the product.
- Curved tilt-out Thermopane front glass and tempered glass ends provide a clear view and easy cleaning.
- Forced-air front-glass defogger eliminates condensation during peak usage periods.
- Bright, energy-efficient LED top lighting showcases food without adding heat.
- Glass sliding rear doors with adjustable moisture vents speed service and help retain heat.
- Removable rear wrapping board and stainless-steel deck simplify preparation and cleanup.
- Heavy-duty steel base available in six standard laminates; includes contrasting black trim.
- Designed for continuous line-ups, with the ability to add additional cases without middle end glass.
- Self-contained drains on each well, eliminating the need for a floor drain hookup.
- Adjustable leg levelers for quick and accurate installation.
- UL & UL EPH Classified for safety and sanitation.
Included With Every Unit:
- Adjustable leg levelers that can be used to level the unit on uneven surfaces.
- Black trim package that provides a stylish and uniform appearance.
- Removable rear wrapping board that can be used for various tasks or removed for easier transportation.
- Operator's manual that provides instructions and guidance for using the unit.
Popular Factory Options:
- Unique base finishes or mirrored interior options available
- Shelf for packages, with lighting option
- Locks for front glass and rear doors
- Platform for weighing items
- Reflective surfaces on ends or rear doors
- Kit to connect multiple cases together in a row
Product Specs
| Specification | Value |
|---|---|
| Model | CG5048HD |
| Overall Dimensions (W × D × H) | 50.13″ × 35.31″ × 48″ (1273 × 897 × 1219 mm) |
| Number of Wells | 3 full-size pans |
| Heat Type | Wet or dry |
| Top Heat | Infrared |
| Lighting | LED, top-mounted |
| Electrical | 120/208-240 V, 60 Hz, 1-ph, 19.6 A (3-wire + ground) |
| Shipping Weight | 585 lb (265 kg) |
| Agency Approvals | UL Safety, UL EPH, ANSI/NSF 4 |
Features
| Specification | Value |
|---|---|
| Manufacturer | Federal Industries |
| Brand Name | Curved Glass Series |
| Certifications | UL, UL EPH Classified |
| Height | 48.0in |
| Width | 50.13in |
| Depth | 35.31in |
| Shipping Weight | 502.0lbs |
| Interior Finish | stainless steel interior |
| Service Type | full service |
| Width (side - side) | 49" - 54" |
| Intermediate Shelves | deck only |
| Exterior Finish | specify exterior |
| Front | curved glass |
| Specifications | Curved Glass Heated Deli Case, 50.13"W x 35.31"D x 48”H, wet or dry heat, (3) wells, independently controlled stainless steel heating wells each with a Calrod® heating element, Infrared top heater, curved Thermopane tilt-front glass, forced air front-glass defogger, LED top light, glass sliding rear doors with moisture vents, stainless steel deck, tempered glass ends, removable wrapping board, designed for continuous lineups, choice of laminate, black trim, No drain required, UL, UL EPH CLASSIFIED |
Documents
CAD Files
Certifications
Purchase Notice
Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
