Description

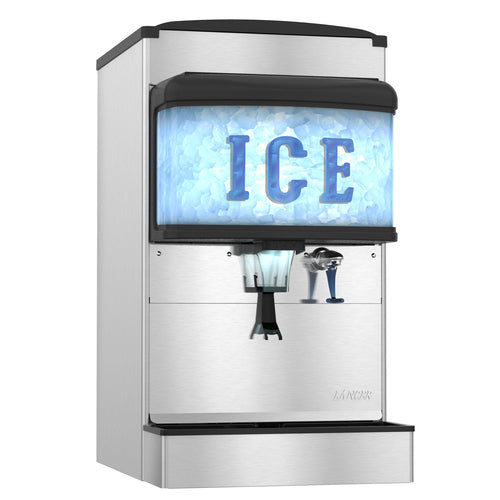

Hoshizaki DM-4420N Ice & Water Dispensers
Product Description
The DM-4420N countertop ice and water dispenser provides a compact, self-service solution for convenience stores, healthcare facilities, and quick-service restaurants. With a rugged stainless-steel build, 200-lb ice capacity, and auger-driven dispensing, this unit delivers chewable cubelet ice and chilled water from a 22" W × 30.5" D × 40" H footprint.
Key Features:
- The exterior is made of heavy-duty stainless steel, which resists dents, corrosion, and fingerprints.
- It has a 200 lb internal ice storage capacity (with 170 lb of dispensable ice), allowing it to keep up with high demand.
- The auger agitator with an exclusive Hex Drive system prevents ice from bridging, ensuring smooth and reliable dispensing.
- It has dual push levers - one for ice, one for water - providing versatility for a beverage bar.
- The illuminated, interchangeable front graphics (with a 15 W fluorescent bulb included) can boost impulse sales.
- The oversized drip tray captures any overfill, reducing slip hazards and cleanup time.
- It has standard 4" adjustable legs, making it easy to clean under the unit.
- It comes with an 8 ft factory-installed cord with a NEMA 5-15P plug, allowing for plug-and-play on a 115 V, 15 A circuit.
Ideal Applications:
- Convenience stores and travel rest stops, where easy access and quick service are important.
- Hospital patient floors and nursing stations, where a clean and organized space is crucial for patient care.
- Office breakrooms and micro-markets, providing a comfortable and functional area for employees to take breaks and access refreshments.
- Fast casual and quick-service restaurants, where efficient food preparation and serving is essential.
Product Specs
| Specification | Value |
|---|---|
| Model | DM-4420N |
| Exterior Dimensions | 22" W × 30.5" D × 40" H (559 × 775 × 1015 mm) |
| Ice Storage Capacity | 200 lb (90.7 kg) |
| Dispensable Ice | 170 lb (77.1 kg) |
| Ice Type | Cubelet (soft, chewable pellets) |
| Dispense Method | Auger agitator / push-lever |
| Electrical | 115 V / 60 Hz / 1-ph, 3.0 A |
| Plug | NEMA 5-15P, 8 ft cord |
| Recommended Circuit | 15 A |
| Water Inlet | 3/8" barb (tubing not included) |
| Drain Connections | 3/4" slip-fit pan drain & 3/4" barb dispense drain Includes 6 ft insulated tubing plus 90° & 180° fittings |
| Operating Water Pressure | 25 – 65 PSI |
| Clearance for Manual Fill | 16" (41 cm) above unit |
| Shipping Weight | 185 lb (84 kg) |
| Certifications | NSF, cETLus, CE |
| Warranty | 3 years parts & labor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Certifications | NSF, CE, cETLus |
| Height | 40.0in |
| Width | 22.0in |
| Depth | 30.5in |
| Shipping Weight | 235.0lbs |
| Style | countertop |
| Capacity | 200 - 399 lb capacity |
| Type | ice & water |
| Specifications | Ice & Water Dispenser, 22"W, counter model, 200-lb. ice capacity, accommodates FD-650, FD-1002 or FS-1022 ice machine, auger agitator dispensing, stainless steel exterior, 4" legs standard, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, NSF, cETLus, CE |
