Description

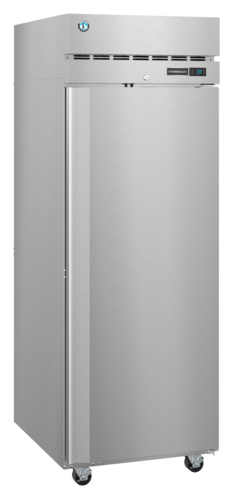

Hoshizaki F1A-FS Steelheart Reach-In Refrigerators & Freezers
Product Description
The Steelheart F1A-FS is a top-mounted freezer built for the demands of commercial kitchens. With a spacious 23.1 cubic foot capacity and a compact 27.5-inch footprint, this stainless steel freezer offers full-size performance in a slim design. The high-efficiency ¾ HP refrigeration system and smart digital controls maintain food safety while minimizing energy use and maintenance. Backed by a 5-year parts and labor warranty on the entire cabinet and a 7-year parts warranty on the compressor, the Steelheart F1A-FS is supported nationwide by Hoshizaki's authorized service network.
Why chefs choose Steelheart:
- The Steelheart provides a spacious 23.1 cubic feet of storage capacity, which is the most in its class per square inch.
- The stainless steel interior, front, sides, and top are built to withstand years of heavy use and are easy to clean.
- The dynamic ducted airflow and TXV metering system ensure even and fast-recovery temperatures.
- The solid-state controller has an LED readout that displays the temperature in Fahrenheit or Celsius, plus audible and visual alarms for temperature and voltage.
- The Steelheart is ENERGY STAR® qualified and uses the natural R290 hydrocarbon refrigerant.
- The spring-assisted solid door is right-hinged and field-reversible, self-closes, and stays open past 90 degrees.
- The exclusive "stepped" seal-saver door design protects the recessed magnetic gasket.
- The unit has three heavy-duty, epoxy-coated wire shelves that can be adjusted on stainless steel pilasters in 1-inch increments.
- Bright, energy-saving LED interior lighting provides clear visibility of the contents.
- The 4-inch polyolefin casters, with the front two being locking, allow the Steelheart to be easily rolled through a standard 80-inch doorway.
- The removable condenser air filter and slide-out refrigeration module simplify service and maintenance.
Product Specs
| Specification | Value |
|---|---|
| Model | F1A-FS (right-hinge) |
| Capacity | 23.1 cu ft (AHAM) |
| Exterior Dimensions (W × D × H) | 27.5" × 33.5" × 79.5" (with 4" casters) |
| Door Opening (W × H) | 21.75" × 59.25" |
| Shelves | (3) epoxy-coated wire, 21.25" × 26" |
| Temperature Range | –10 °F to +12 °F |
| Refrigeration System | Top-mounted, self-contained, ¾ HP, R290, TXV controlled |
| Electrical | 115 V / 60 Hz / 1-phase, 8.46 A, NEMA 5-15P (10 ft cord) |
| Energy Consumption | 6.25 kWh/day (ASHRAE) |
| Heat Rejection | 1,178 BTU/hr (NSF) |
| Ambient Rating | 45 °F – 100 °F |
| Insulation | 2 ⅜" CFC-free foamed-in-place polyurethane |
| Casters | (4) 4" polyolefin (2 locking) |
| Certifications | cETLus • ETL-Sanitation • ENERGY STAR |
| Shipping Weight | 345 lb (crated) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Brand Name | Steelheart |
| Certifications | cETLus, ETL-Sanitation |
| Height | 79.5in |
| Width | 27.5in |
| Depth | 33.5in |
| Shipping Weight | 355.0lbs |
| Exterior Finish | stainless steel front & sides |
| Door Style | full hinged |
| Interior Finish | all stainless steel interior |
| Capacity | 10 - 23 cu. ft. |
| Door Type | solid door(s) |
| Size | 1 section |
| Refrigeration | self-contained, top mounted |
| Compressor HP | 3/4 HP |
| Specifications | Steelheart Series Freezer, reach-in, one-section, 23.1 cu. ft., top mounted self-contained refrigeration system, (3) epoxy-coated wire shelves, (1) full-height solid right hinged door, digital temperature display/controls, audible & visual alarms, LED interior lighting, stainless steel exterior front & sides, stainless steel interior, (4) 4" casters (2 with brakes), R290 Hydrocarbon refrigerant, 3/4 HP, NEMA 5-15P, cETLus, ETL-Sanitation |
