Description

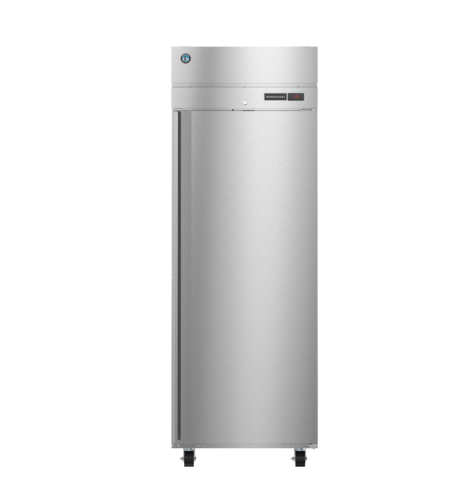

Hoshizaki HC1A-FS Heated Cabinets & Holding Shelves
Product Description
The Hoshizaki HC1A-FS upright heated cabinet provides 22.7 cubic feet of storage space in a compact 27.5-inch wide footprint. Featuring sturdy stainless-steel construction and precise digital controls, this ENERGY STAR-qualified cabinet keeps food hot, safe, and ready to serve in any commercial kitchen. If a GFCI is required by local code, Hoshizaki recommends using a GFCI circuit breaker.
Features:
- The oven has a top-mounted heating element with a high-temperature fan for even heat circulation.
- It has a solid-state digital controller with an LED display for temperature (°F/°C), and it includes high/low temperature and voltage alarms.
- The interior, front, sides, and top are made of all-stainless-steel, making it easy to sanitize and resistant to corrosion.
- The oven has a full-height, self-closing stainless steel door with a stay-open feature and a keyed lock.
- It includes (3) 21.25" × 26" adjustable epoxy-coated wire shelves, which can hold up to 12 full-size sheet pans or 20-24 tray slides.
- The oven has 2-3/8" foamed-in-place CFC-free polyurethane insulation for maximum heat retention.
- The energy-efficient 6 000 K LED interior lighting activates when the door opens.
- It has factory-installed 4" polyolefin casters (front two locking) for easy mobility.
- The oven operates on a 115 V power supply with a 10-ft cord and NEMA 5-15P plug.
- It is certified cETLus, ETL-Sanitation, NSF, UL, and ENERGY STAR®.
Features:
- This appliance can be installed with no extra space needed on the sides, back, or top.
- The door can be easily flipped to open in the opposite direction, adapting to changes in the layout.
- The unique stepped door design protects the hidden magnetic seal from getting damaged.
- The durable hinge plates are made of thick 8-gauge stainless steel with welded pins for long-lasting use.
- The gaskets can be quickly snapped in and out without any tools, making routine maintenance easier.
Features:
- The shelves are made of wire and have an epoxy coating for durability.
- There are 4-inch casters, with 2 of them being locking casters to keep the unit in place.
- The power cord is 10 feet long and has a NEMA 5-15P plug.
- The unit comes with a factory-installed door lock and keys.
Features:
- You can add extra shelves made of epoxy or stainless steel.
- Sliding kits are available for pans and wire racks (choose from 1, 2, 4, 6, or 8 slides).
- Adjustable stainless steel legs that can be set to 6 inches in height.
- Foot-operated door opener that works with right-hinged doors.
Product Specs
| Specification | Value |
|---|---|
| Model | HC1A-FS (Full Stainless Door) |
| Capacity | 22.7 cu. ft. (AHAM) |
| Standard Shelves | (3) 21.25" W × 26" D epoxy-coated wire |
| Pan Capacity | Up to 12 full-size (18" × 26") sheet pans |
| Exterior Dimensions | 27.5" W × 33.5" D × 79.5" H (with 4" casters) |
| Door Opening (W × H) | 21.75" × 59.25" |
| Depth with Door at 90° | 59.25" |
| Controller Set-Point Range | 140 °F – 180 °F |
| Voltage / Phase | 115 V / 60 Hz / 1-phase |
| Amperage | 10 A (15 A HACR breaker recommended) |
| Plug Type | NEMA 5-15P |
| Energy Consumption | 143.4 W (ASTM 2140-11) |
| Ambient Operating Range | 45 °F – 100 °F |
| Shipping Weight | ≈ 340 lb |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Certifications | NSF, UL, cETLus, ETL-Sanitation, ENERGY STAR |
| Height | 79.5in |
| Width | 27.5in |
| Depth | standard depth |
| Shipping Weight | 340.0lbs |
| Interior configuration | shelves |
| Interior Finish | stainless steel interior |
| Size | 1 section |
| Energy Efficiency | ENERGY STAR® |
| Exterior Finish | all stainless steel exterior |
| Doors | hinged solid |
| Specifications | Heated Cabinet, upright, one section, reach-in, full stainless steel doors, (3) 21.25" x 26" shelf capacity, solid state digital controller, temperature alarm, LED display, insulated cabinet and doors, stainless steel interior & exterior, 4" casters, cETLus, ETL-Sanitation, UL, NSF, ENERGY STAR® |
