Description

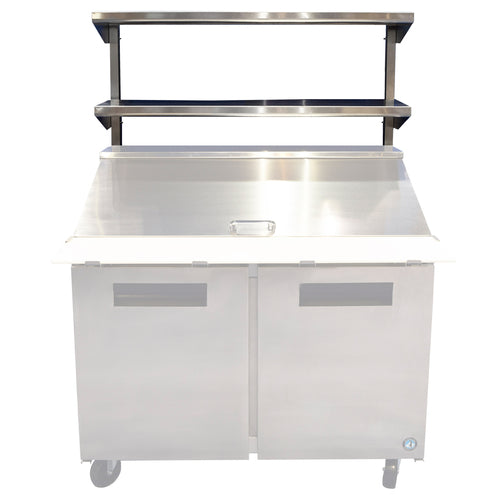

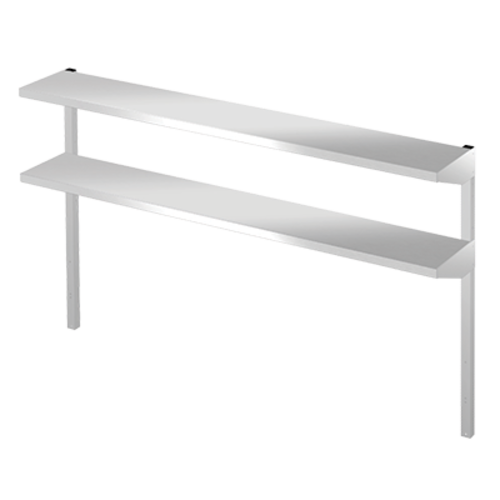

Hoshizaki HS-5166 Stainless Steel Shelving
Product Description
The Steelheart Series provides a heavy-duty storage solution with its 16-gauge stainless steel construction. This compact shelf unit installs quickly on any 72-inch Hoshizaki base cabinet, giving you additional pass-through shelving without taking up extra floor space. The sturdy design allows you to expand your prep or storage capacity right where you need it most.
Key Features:
- The double-tier design allows for maximum vertical storage space.
- The top shelf can be lowered by 2 inches or 4 inches, and the bottom shelf can be lowered by 2 inches or 3 inches, providing customizable clearance.
- The shelves are made from durable 16-gauge stainless steel, ensuring long-lasting use and easy cleaning.
- The 1.5-inch tubular stainless steel uprights provide stability and prevent wobbling or twisting.
- The shelves can be installed without tools on a variety of surfaces, including undercounter, worktop, sandwich prep, mega top, or pizza prep units (including drawer models).
Compatible 72" Base Cabinets:
- UR72A Series undercounter cabinets are compatible with this size.
- WR72A Series work tables with a 72-inch width can be used with these cabinets.
- SR72A-18M sandwich and mega top prep tables with a 72-inch width work with these cabinets.
- PR72A pizza prep tables with a 72-inch width can be paired with these cabinets.
- Any Steelheart unit manufactured after March 2016 with serial numbers FXXXXXC and later are also compatible.
Product Specs
| Specification | Value |
|---|---|
| Accessory Model | HS-5166 |
| Type | Double Overshelf (pass-thru) |
| Compatible Cabinet Width | 72" (1829 mm) |
| Number of Shelves | 2 |
| Shelf Adjustability | Top: lowers 2" or 4"Bottom: lowers 2" or 3" |
| Overall Dimensions (W × D × H) | 72" × 12" × 48" (1829 × 305 × 1219 mm) |
| Material Thickness | 16-gauge stainless steel |
| Pole Diameter | 1 ½" (38 mm) |
| Shipping Dimensions | 79" × 17" × 5.5" |
| Shipping Weight | 58 lb (26 kg) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Height | 48.0in |
| Width | 72.0in |
| Depth | 12.0in |
| Shipping Weight | 56.0lbs |
| Construction | stainless steel |
| Depth (front - back) | 12" |
| Gauge | 16 gauge |
| Shelves | double |
| Width (side - side) | 61" - 72" |
| Specifications | Double Overshelf, for 72" W cabinet, adjustable, 16 gauge stainless steel (compatible with models manufactured after March 2016 (Serial number FXXXXXC & after)) |
Documents
CAD Files
