Description

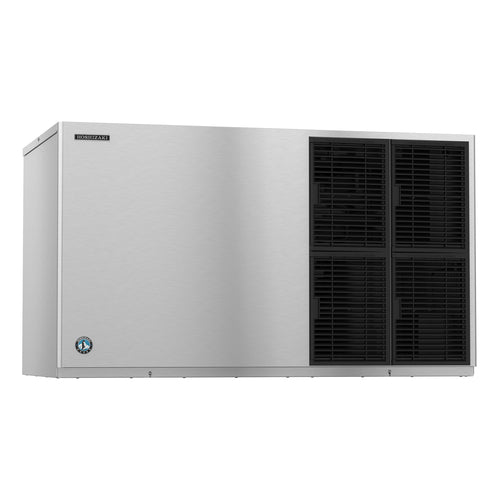

Hoshizaki KM-1301SAJ-E Ice Machines
Product Description
The KM-1301SAJ-E ice machine, built on the powerful KMEdge™ platform, produces more ice with fewer cycles, resulting in lower energy costs and exceptional reliability. Its dual-sided stainless steel evaporator freezes the cleanest water, rinsing away impurities to create Hoshizaki's signature crystal-clear crescent cubes that flow freely, displace more liquid, and last longer in the glass. This 50 Hz, air-cooled, self-contained unit measures 48" wide.
Key Features:
- This ice machine can produce up to 624 kg of ice every 24 hours when the air temperature is 21°C and the water temperature is 10°C.
- When the air temperature is 32°C and the water temperature is 21°C, the machine is AHRI Certified to produce 501 kg of ice per day.
- The energy-saving CycleSaver™ design produces the same amount of ice while running fewer cycles, saving energy.
- The exclusive dual-sided stainless steel evaporator resists mineral buildup, extending the machine's service life.
- The EverCheck™ audible and visual alert system simplifies diagnostics and maintenance.
- The removable, field-cleanable air filters help maintain peak condenser efficiency.
- The machine is stackable, allowing you to double the output to 1,248 kg per day by adding a second head on the same bin.
- The durable, all-stainless steel exterior is food-safe and uses R-404A refrigeration.
- The machine is certified to meet NSF and CE standards.
Installation Notes:
- Make sure there is at least 150 mm (6 inches) of clearance at the rear, sides, and top of the unit to allow for proper ventilation and maintenance.
- Connect the water supply using a 10 mm outer diameter copper pipe (or equivalent) for the cold water line.
- Install a 18 mm outer diameter hard pipe for the gravity drain.
- The unit is shipped without a power cord, so it must be hard-wired by a qualified electrician (use a GFCI breaker when required).
Optional Bins & Accessories:
- You can use compatible ice bins: B-800, B-900, B-1150SS, B-1300SS, B-1500SS, B-1650SS. You may need a bin top kit for these.
- There is a HS-5252 stainless steel tamper-proof front panel kit available for high-security installations.
- Hoshizaki offers water filtration systems and the EcO Ice3 ozone sanitation device to ensure superior ice quality.
Product Specs
| Specification | Value |
|---|---|
| Ice type | Individual crescent cubes (≈38 mm × 28 mm × 13 mm*) |
| Maximum production | 624 kg / 24 hr @ 21 °C air / 10 °C water |
| AHRI production | 501 kg / 24 hr @ 32 °C air / 21 °C water |
| Energy use | 4.52 kWh per 45 kg of ice |
| Potable water use | 132 L per 45 kg of ice |
| Refrigerant / charge | R-404A / 1.9 kg |
| Heat rejection | 16,100 BTU/hr |
| Electrical | 220–240 V • 50 Hz • 1-phase • 11.35 A (20 A min. circuit) |
| Dimensions (W × D × H) | 1219 × 695 × 695 mm (48″ × 27-3/8″ × 27-3/8″) |
| Net / ship weight | 136 kg / 154 kg |
| Ambient temp range | 7 °C – 38 °C |
| Water temp range | 7 °C – 32 °C |
| Water pressure | 69 – 779 kPa |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Certifications | NSF, CE, AHRI |
| Height | 27.38in |
| Width | 48.0in |
| Depth | 27.38in |
| Shipping Weight | 340.0lbs |
| Production per 24 hr | 1301 - 1400 lb = 591 - 635 kg |
| Refrigeration | self-contained refrigeration |
| Ice Type | crescent cubes |
| Condenser Type | air-cooled |
| Width (side - side) | 40 - 49" wide |
| Specifications | (50hz Model) Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 624 kg/24 hours at 70°/50° (501 kg AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 220-230v/50/1-ph, 11.35 amps, NSF |
