Description

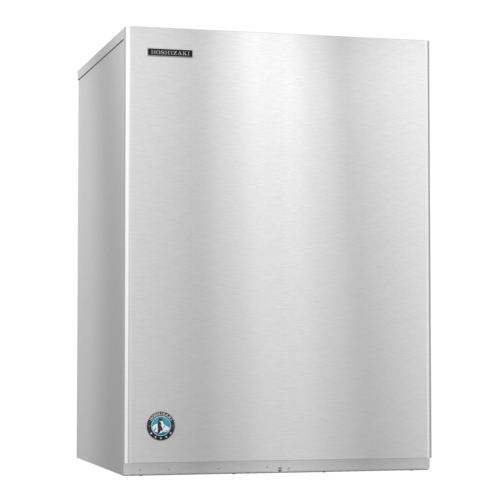

Hoshizaki KM-1601MRJZ Ice Machines
Product Description
Remote air-cooled, 1-phase ice machine that can produce up to 1,594 pounds of ice every 24 hours. Engineered for high-volume, energy-efficient ice production, the KM-1601MRJZ is ideal for busy food-service, hospitality, healthcare, and seafood operations that require a reliable supply of crystal-clear crescent ice cubes. Its durable stainless-steel cabinet and evaporator, paired with Hoshizaki's exclusive CycleSaver™ design, deliver more ice in fewer cycles, helping to keep utility costs low and extend component life. For the condenser, choose the URC-22FZ remote condenser and matching brazed line set (available in 25 ft, 35 ft, or 55 ft lengths). Always pair "Z" model ice makers with "Z" model condensers. For more information on warranty and coverage, please contact us.
Key benefits:
- This ice machine can produce up to 1,594 lbs of ice per day when the air temperature is 70°F and the water temperature is 50°F. It is AHRI certified to produce 1,550 lbs of ice per day when the air temperature is 90°F and the water temperature is 70°F.
- The ice cubes it produces are individual crescent-shaped, measuring approximately 1 ⅛ inches wide, 1 ½ inches long, and 1 ½ inches tall. These cubes are free-flowing, making them perfect for filling tight glasses.
- The remote air-cooled design keeps the heat and noise outside of the kitchen. It can be paired with the matching URC-22FZ remote condenser, which is sold separately.
- The heavy-duty stainless-steel exterior and evaporator are corrosion-resistant, ensuring years of reliable service.
- The EverCheck™ control board provides audible and visual diagnostics to help minimize downtime.
- The ice machine uses environmentally friendly R-404A refrigerant.
- The ice machine is NSF and UL listed, and it meets the U.S. Department of Energy's 2024 standards.
Compatible ice storage bins:
- The B-500SF, B-700SF, B-800SF, and B-900SF are compatible ice storage bins.
- The B-1150SS and B-1300SS are also compatible ice storage bins.
- For two-unit stacked applications, the B-1500SS or B-1650SS are compatible ice storage bins.
Product Specs
| Specification | Value |
|---|---|
| Ice type | Crescent cube |
| Daily production (70 °F / 50 °F) | 1,594 lb |
| Daily production (90 °F / 70 °F, AHRI) | 1,550 lb |
| Energy use | 4.35 kWh per 100 lb (90 °F / 70 °F) |
| Water use | 18 gal per 100 lb (potable water only – air-cooled) |
| Heat rejection | 24,300 BTU/hr |
| Refrigerant charge | 8 lb 2.5 oz (head only) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Certifications | NSF, UL, AHRI |
| Height | 41.62in |
| Width | 30.0in |
| Depth | 27.38in |
| Shipping Weight | 316.0lbs |
| Condenser Type | air-cooled |
| Width (side - side) | 30 - 39" wide |
| Ice Type | crescent cubes |
| Refrigeration | remote (refrigeration not included) |
| Production per 24 hr | 1501 - 1600 lb = 682 - 726 kg |
| Specifications | Ice Maker, Cube-Style, 30"W, air-cooled, remote condenser (priced separately), production capacity up to 1594 lb/24 hours at 70°/50°(1550 lb AHRI certified at 90°/70°), stainless steel finish, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL (always pair “Z” model ice machines with “Z” model remote condenser) |
