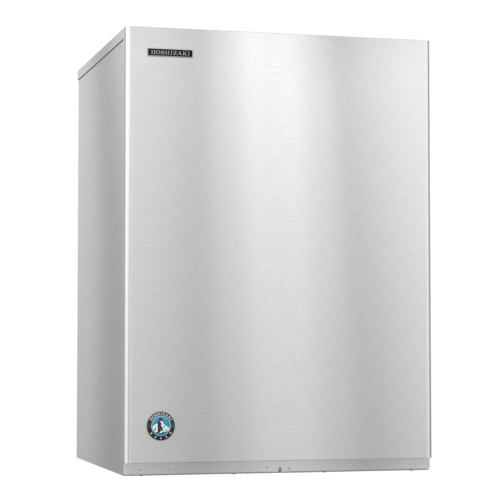

Remote air-cooled head – 30 in W – up to 1,653 lb / 24 hr Engineered for the busiest restaurants, hotels, and healthcare facilities, the KM-1601MRJZ3 delivers a large amount of clear crescent ice while directing heat and fan noise outdoors with a matching remote condenser (sold separately). Expect reliable, energy-efficient performance thanks to Hoshizaki's KMEdge™ technology, stainless steel construction, and industry-leading warranty coverage. *Approximate cube size; actual dimensions may vary slightly. A top-mounting kit may be required—see individual bin spec sheets. For more information on warranty and coverage, please contact us.

Features:

• This ice machine can produce up to 1,653 pounds of ice per day at 70°F air temperature and 50°F water temperature. It is AHRI certified to produce 1,550 pounds of ice per day at 90°F air temperature and 70°F water temperature.
• The remote air-cooled design moves the heat and noise away from the kitchen, improving comfort and efficiency.
• The CycleSaver™ technology produces the same amount of ice with fewer cycles, reducing wear and energy use.
• The EverCheck™ alert system provides audible and visible diagnostics to speed up troubleshooting and reduce downtime.
• The durable stainless steel exterior panels and evaporator resist corrosion, ensuring years of worry-free service.
• The individual crescent-shaped ice cubes are hard, clear, cool quickly, resist clumping, and maximize drink yield.
• The ice machine is certified as food-safe by NSF, UL, and AHRI.
• It uses eco-friendly R-404A refrigerant and operates efficiently at 208-230 V / 60 Hz / 3-phase, with a low running current of only 12.9 amps.

Features:

• The B-500SF, B-700SF, B-800SF, and B-900SF are different models of the product.
• The B-1150SS and B-1300SS are additional models.
• The B-1500SS and B-1650SS are designed for two-machine installations.

Features:

• The remote condenser is a URC-22FZ model, which is factory-matched to the "Z" series condenser.
• The refrigerant line sets are brazed and come in three lengths: 25 feet (HS-5323), 35 feet (HS-5324), or 55 feet (HS-5325).

Features:

• The compressor and air-cooled condenser coil are covered by a 5-year warranty for the parts.

Features:

• Make sure to use a "Z" model remote condenser that matches your "Z" model ice machine. They are designed to work together.
• The refrigerant lines must be connected using brazing techniques. This work should only be done by qualified refrigeration technicians.
• Leave at least 6 inches of clearance around the sides, back, and top of the ice machine to allow for service access and proper airflow.
• If the installation requires GFCI (ground fault circuit interrupter) protection, use a GFCI circuit breaker rather than a GFCI electrical outlet.
