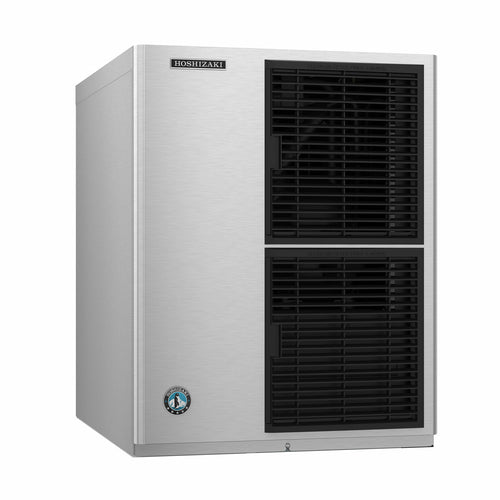

The KM-660MAJ-E ice machine offers reliable, high-capacity ice production in a compact design. Capable of generating up to 280 kg of hard, crystal-clear crescent ice cubes per day, this air-cooled, self-contained unit operates at 50 Hz. With a slim width of just 559 mm, it is an ideal solution for restaurants, bars, cafes, and hotels seeking maximum ice output from minimal floor space. The ice storage bin is sold separately.

Key Advantages:

• Produces a high output of 280 kg/24 hr at 21 °C air / 10 °C water, or 262 kg/24 hr certified at 32 °C / 21 °C.
• Generates individual crescent-shaped ice cubes that last longer, improve drink displacement, and never bridge together.
• Dual-sided stainless-steel evaporator provides the industry's most efficient heat exchange.
• CycleSaver™ technology makes the same amount of ice in half as many cycles, lowering energy and water use.
• EverCheck™ control board offers audible diagnostics and self-adjusts to changing conditions.
• CleanAssist™ one-hour automated cleaning cuts labor and downtime.
• Factory-installed ultrasonic bin control, eliminating the need for mechanical probes that require adjustment or cleaning.
• Tool-free, removable air filters and snap-fit components allow for quick and easy service access.
• Durable stainless-steel exterior resists corrosion and wipes clean easily.
• Charged with R-404A refrigerant and CE & NSF certified for global peace of mind.

Installation Requirements:

• Allow at least 150 mm (6 inches) of clearance at the rear, sides, and top of the unit to ensure proper airflow and allow access for servicing.
• The ambient temperature should be between 7 – 38 °C, and the water temperature should be between 7 – 32 °C.
• The water pressure should be between 69 – 779 kPa, and the supply line should be a 6 mm OD copper pipe.
• The gravity drain should be an 18 mm OD hard pipe or an equivalent.
• If a GFCI (Ground Fault Circuit Interrupter) protection is required, use a breaker rather than a receptacle.
• The compatible storage bins are: B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS (a top kit may be required).

The Crescent Cube Difference:

• The cubes are made to drop individually, so they won't clump together or stick to each other in the bin.
• The ice is hard and clear, which makes it melt slowly and look high-quality in any glass.
• The crescent shape of the cubes maximizes the amount of liquid they can displace, which increases the amount of your beverage.
• The cubes are designed to slide easily into narrow-mouth bottles and tall, straight-sided glasses like highball glasses.
