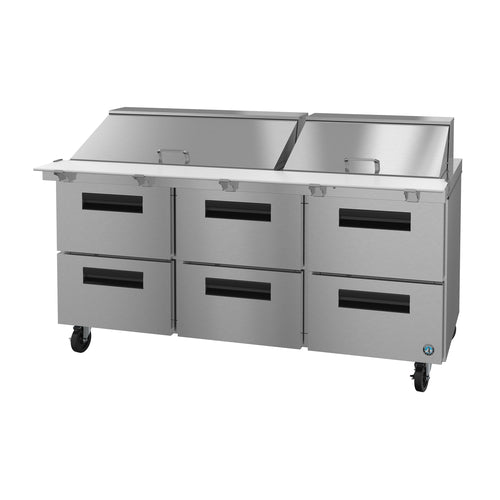

Hoshizaki SR72B-30MD6 Steelheart Refrigerated Prep Tables
Product Description
The SR72B-30MD6 is a robust and versatile refrigeration unit designed for the demands of a busy commercial kitchen. Featuring a spacious 72-inch width, 18 cubic feet of storage, and a 30-pan rail, this stainless steel mega top provides ample space to keep ingredients chilled and organized. Six heavy-duty drawers offer convenient access, while the full-length cutting board and pan rail streamline preparation tasks. For GFCI protection, a GFCI breaker can be used in place of a GFCI receptacle to prevent nuisance trips. Additional accessories such as divider bars, overshelves, and casters are available upon request. For more information on warranty and coverage, please contact the manufacturer.
Why You'll Love It:
- This refrigerator can maintain NSF-7 performance even in ambient temperatures up to 100°F, so it can handle the heat during busy rush hours.
- The self-contained, rear-mounted front-breathing refrigeration system requires zero side or rear clearance, making it easy to install.
- It uses environmentally responsible R290 hydrocarbon refrigerant and a 1/3 HP compressor for efficient, fast recovery cooling.
- The expanded 30-pan mega rail comes stocked with thirty 1/6-size polycarbonate pans (4" deep) and stainless steel adapter bars, and it can also accommodate 6" deep pans for 50% more capacity.
- The six all-stainless steel drawers ride on acetal rollers and ball bearings, which have been life-tested for 300,000 cycles and can each hold up to 175 lbs.
- The top and bottom drawers can hold a variety of pan configurations, including (1) 1/2-size and (1) 1/3-size pan (6" deep) or other combinations for maximum flexibility.
- A 10" deep x 1/2" white polyethylene cutting board spans the full 72" width and is simple to remove for cleaning.
- The hot-gas condensate removal and e-coated evaporator coil reduce maintenance time and costs.
- Four 6" stem casters, with two locking, allow you to roll the unit through standard doorways for easy installation and cleaning.
Built for the Toughest Kitchens:
- The 2-inch CFC-free foamed-in-place insulation helps keep the cold air inside, reducing your utility bills.
- The exclusive "stepped" pan rail design keeps the gasket away from the food area, extending its lifespan.
- The removable stainless steel prep-rail guard catches messy drips and can be easily taken out for cleaning.
- The magnetic drawer gaskets can be snapped out without tools when you need to thoroughly clean the equipment.
Product Specs
| Specification | Value |
|---|---|
| Model | SR72B-30MD6 |
| Capacity | 18 cu. ft. (three-section) |
| Exterior Dimensions | 72 ″ W × 34 ″ D × 44.25 ″ H (with 6 ″ casters) |
| Depth w/ Cutting Board | 37.5 ″ |
| Depth w/ Drawer Open | 52 ″ (includes 1 ″ bumper) |
| Pan Rail | 30 × 1/6-size pans, 4 ″ deep (included) |
| Drawer Count | 6 stainless steel drawers, flush handles |
| Temperature Range | 32 °F – 52 °F adjustable |
| Compressor | 1/3 HP, rear-mounted, front-breathing |
| Refrigerant | R290 Hydrocarbon (2.6 oz charge) |
| Electrical | 115 V / 60 Hz / 1 Φ, 4 A, NEMA 5-15P, 10 ft cord |
| Energy Use | 5.05 kWh / day (@ NSF) |
| Shipping Weight | 539 lb |
| Certifications | cETLus, ETL-Sanitation, AQ (NSF-7) |
| Warranty | 5 yr labor • 6 yr parts • 7 yr compressor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Brand Name | Steelheart |
| Certifications | cETLus, ETL-Sanitation |
| Height | 44.25in |
| Width | 72.0in |
| Depth | 34.0in |
| Shipping Weight | 539.0lbs |
| Refrigeration | self-contained, rear mounted |
| Exterior Finish | stainless steel front, top & sides |
| Pan Capacity (Top) | 30 pan |
| No of Drawers | 6 drawers |
| Compressor Style | side / rear breathing |
| Access Type | drawers |
| Width (side - side) | 70" - 95" wide |
| Sections | 3 section |
| Specifications | Steelheart Series Mega Top Refrigerator, three-section, 72"W, 18 cu. ft., self-contained rear mounted refrigeration system, (6) drawers, provided with (30) 1/6 pans 4" deep, 6" maximum pan depth (drawer & top rail), 10" D x 1/2" thick white polyethylene cutting board & a full set of adapter bars, stainless steel exterior, stainless steel exterior front, hot gas condensate removal, sides & top hinged cover, (4) 6" casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, NEMA 5-15P, cETLus, ETL-Sanitation |
