Description

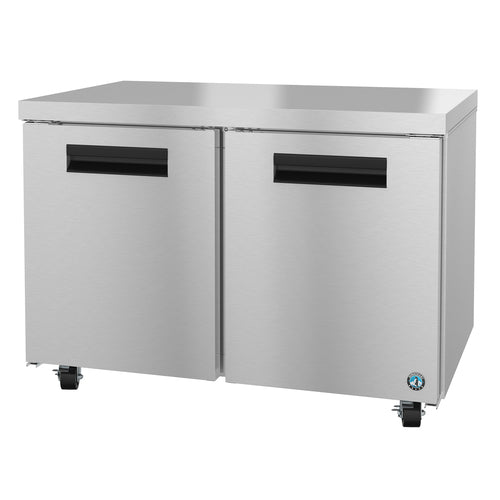

Hoshizaki UF48B-01 Steelheart Undercounter & Worktop Refrigeration
Product Description
The Steelheart UF48B is a high-performance freezer designed to provide reliable frozen storage in your workplace. With a spacious 13.66 cubic feet of capacity, this freezer delivers the NSF-7 freezing power you need, even in ambient temperatures up to 100°F. Its compact two-section design fits seamlessly under standard 34-inch counters, maximizing your available floor space without compromising storage capabilities. Backed by Hoshizaki's renowned quality and efficiency, the Steelheart UF48B ensures your frozen goods remain safe and secure.
Why chefs choose the UF48B:
- The unit is front-breathing, with the self-contained refrigeration system located at the rear, eliminating the need for side or rear clearance.
- The all-stainless steel interior and exterior provide unmatched sanitation and corrosion resistance.
- It is engineered to maintain NSF-7 temperatures even in sweltering 100°F kitchens.
- The eco-friendly R290 hydrocarbon refrigerant results in only 3.6 kWh/day of energy use.
- It has (2) field-reversible solid doors with a cylinder lock, spring-assisted self-close, and stay-open feature at 90 degrees.
- The exclusive "stepped" door design shields the magnetic gasket from damage.
- It features (2) heavy-duty epoxy shelves that are adjustable every ½ inch, maximizing storage flexibility.
- The 4-inch stem casters, with 2 locking, allow for easy cleaning and mobility.
- It has a 10-ft cord with a NEMA 5-15P plug, allowing you to simply roll it in and plug it in to start freezing.
Popular accessories:
- 2.25-inch or 6-inch casters that can be easily attached to the bottom of the unit for mobility.
- Additional epoxy or stainless-steel shelves that can be added to increase storage capacity.
- Overshelf kit that provides extra overhead storage space.
- Foot-pedal door opener (available in left or right mount) for hands-free operation.
- Stacking kit (model HS-5112) that allows you to securely stack multiple units on top of each other.
Product Specs
| Specification | Value |
|---|---|
| Model | UF48B (Steelheart Series) |
| Storage capacity | 13.66 cu. ft. (AHAM 12 cu. ft.) |
| Sections / doors | 2 sections / 2 locking, solid, field-reversible doors |
| Shelves supplied | (2) epoxy-coated, 21.5" W × 16" D – adjustable in ½" increments |
| Exterior dimensions | 48" W × 30" D × 33.75" H (with 4" casters) |
| Depth w/ door open 90° | 52.5" |
| Temperature range | -10 °F to 10 °F (factory preset -4 °F) |
| Ambient rating | 45 °F–100 °F |
| Refrigerant / charge | R290 / 2.6 oz |
| Compressor | 1/3 HP (2,431 BTU/h) |
| Energy consumption | 3.6 kWh per day (ASHRAE) |
| Electrical | 115 V / 60 Hz / 1Ø, 3.6 A, NEMA 5-15P |
| Casters | (4) 4" polyolefin stem, (2) with brakes |
| Certifications | cETLus, ETL-Sanitation (NSF-7) |
| Warranty | 5 yr labor • 6 yr parts • 7 yr compressor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Brand Name | Steelheart |
| Certifications | cETLus, ETL-Sanitation |
| Height | 33.75in |
| Width | 48"- 59" |
| Depth | 31.0in |
| Shipping Weight | 258.0lbs |
| Refrigeration | self-contained, rear mounted |
| Doors | solid door(s) |
| Exterior Finish | stainless steel front & sides |
| Access Type | doors |
| Size | 2 section |
| Compressor HP | 1/3 HP |
| Specifications | Steelheart Series Undercounter Freezer, reach-in, two-section, 48"W, 13.66 cu. ft., self-contained rear mounted refrigeration system, (2) reversible solid hinged doors, cylinder door lock, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), R290 hydrocarbon refrigerant, 1/3 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation (Special Order) |
