Description

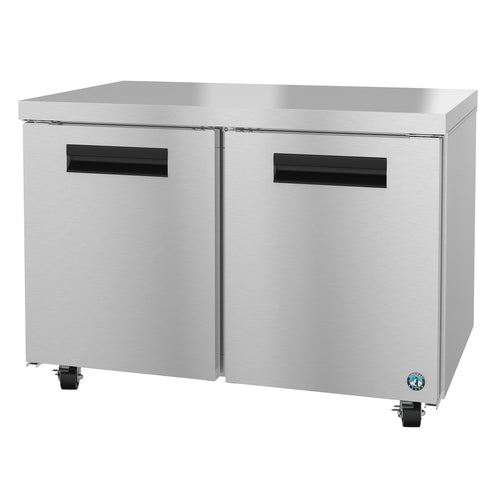

Hoshizaki UF48B Steelheart Undercounter & Worktop Refrigeration
Product Description
The Steelheart UF48B undercounter freezer keeps temperatures between -10°F and 10°F, even in kitchens up to 100°F. This compact, 48-inch model fits seamlessly under your counter while providing the durable, all-stainless steel construction, energy-efficient R290 refrigeration, and industry-leading 7-year warranty that commercial kitchens require. Complete line drawings and manuals are available in the "Files" tab. For more details on the warranty and coverage, please contact us.
Why you'll love it:
- This unit is designed to maintain NSF-7 compliant temperatures even in ambient temperatures up to 100°F, making it ideal for use in the hottest environments.
- The spacious 13.66 cubic foot interior features two height-adjustable, epoxy-coated shelves, providing ample storage space.
- The front-breathing, rear-mounted 1/3 HP system allows for zero-clearance installation, saving valuable floor space.
- The field-reversible, spring-assisted doors automatically self-close under 90° and stay open over 90°, for easy access.
- The exclusive "stepped" door edge protects the gasket and helps to reduce energy loss.
- The all-stainless steel interior and exterior (front, sides, top) provides unmatched durability and makes cleaning and sanitation easy.
- Four 4-inch stem casters, two with brakes, make it simple to clean around the unit and relocate it as needed.
- The use of natural R290 refrigerant and 2-inch foamed-in insulation results in an impressively low daily energy consumption of only 3.6 kWh.
- The 10-foot power cord with a NEMA 5-15P plug means no hard-wiring is required for installation.
Perfect for:
- Storing proteins or partially cooked items right next to the cooking area.
- Bakery and pastry stations that need frozen dough, butter, or desserts within easy reach.
- Bars that serve chilled glassware or frozen drink mixers.
- Ghost kitchens, food trucks, and quick-service restaurants where every bit of space is valuable.
Product Specs
| Specification | Value |
|---|---|
| Model | UF48B (Steelheart Series) |
| Capacity | 13.66 cu. ft. (12 cu. ft. AHAM) |
| Exterior dimensions (W × D × H) | 48" × 30" × 33.75" (with 4" casters) |
| Depth with 1" bumper | 31" |
| Depth with door at 90° | 52.5" |
| Door opening (W × H) | 19.5" × 23" |
| Doors / sections | (2) solid, reversible, hinged |
| Shelves | (2) adjustable epoxy shelves, 21.5" × 16" |
| Temperature range | –10 °F to 10 °F |
| Refrigeration system | 1/3 HP, rear-mounted, front-breathing |
| Refrigerant / charge | R290, 2.6 oz. |
| Electrical | 115 V / 60 Hz / 1 ph, 3.6 A, NEMA 5-15P |
| Energy use | 3.6 kWh / day (ASHRAE) |
| Heat rejection | 756 BTU / hr |
| Shipping weight | 258 lb |
| Certifications | cETLus, ETL Sanitation |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Brand Name | Steelheart |
| Certifications | cETLus, ETL-Sanitation |
| Height | 33.75in |
| Width | 48"- 59" |
| Depth | 31.0in |
| Shipping Weight | 258.0lbs |
| Access Type | doors |
| Refrigeration | self-contained, rear mounted |
| Exterior Finish | stainless steel front & sides |
| Compressor HP | 1/3 HP |
| Size | 2 section |
| Doors | solid door(s) |
| Specifications | Steelheart Series Undercounter Freezer, reach-in, two-section, 48"W, 13.66 cu. ft., self-contained rear mounted refrigeration system, (2) reversible solid hinged doors, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), R290 hydrocarbon refrigerant, 1/3 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation (Special Order) |
