Description

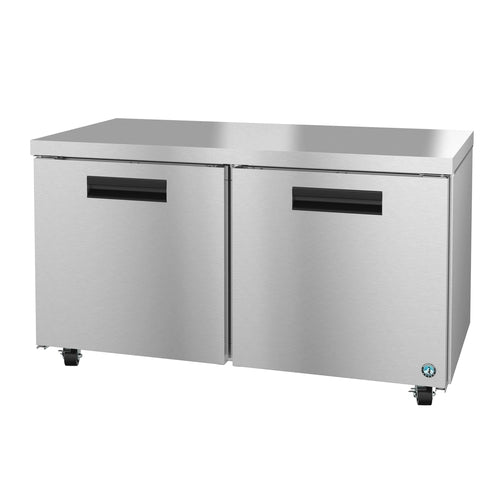

Hoshizaki UF60B Steelheart Undercounter & Worktop Refrigeration
Product Description
The Steelheart UF60B is a versatile and durable undercounter freezer built to withstand the demands of busy kitchens. With a spacious 15 cubic foot capacity and a two-section design, this freezer can accommodate a variety of frozen items while fitting seamlessly beneath a 34-inch counter. Constructed entirely of stainless steel and featuring front-breathing ventilation, the UF60B is not only built to last but also energy-efficient, thanks to its R290 refrigeration system. Complete with standard 4-inch casters, this workhorse freezer is the ideal solution for your commercial kitchen needs.
Features:
- This unit is designed to maintain NSF-7 safe temperatures even in ambient temperatures up to 100°F.
- The durable stainless-steel exterior and interior are easy to clean and corrosion-resistant.
- The front-breathing design allows the unit to be installed with zero side or rear clearance.
- The eco-friendly R290 hydrocarbon refrigerant and ENERGY STAR® qualification make this an energy-efficient choice.
- The two spring-assisted, self-closing doors have a stay-open feature at 90° and field-reversible hinges.
- The exclusive stepped door design helps protect the gasket for longer service life.
- The two epoxy-coated, height-adjustable shelves are mounted on anodized aluminum pilasters.
- The hot-gas condensate removal system eliminates the need for electric heaters or floor drains.
- The e-coated evaporator coil resists corrosion in high-humidity environments.
- The unit ships on four 4-inch stem casters, two with brakes, for easy mobility.
Features:
- The product comes with a 5-year labor warranty.
- The parts warranty, including the evaporator and condenser, lasts for 6 years.
- The compressor is covered for 7 years.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 15.1 cu. ft. (AHAM) |
| Exterior Dimensions (W × D × H)* | 60" × 30" × 33.75" |
| Doors / Shelves | (2) solid hinged doors | (2) adjustable shelves |
| Temperature Range | -10 °F to 10 °F |
| Refrigeration System | Self-contained, rear-mounted | 1/3 HP compressor |
| Refrigerant / Charge | R290, 2.6 oz |
| Energy Use | 3.95 kWh per day (ASHRAE) |
| Electrical | 115 V / 60 Hz / 1 Ø • 4 A • NEMA 5-15P • 10 ft cord |
| Heat Rejection | 727 BTU/hr (NSF) |
| Door Opening (W × H) | 25.5" × 23" |
| Depth w/ Door 90° | 58.5" |
| Insulation | 2" CFC-free foamed-in-place polyurethane |
| Shipping Weight | 310 lbs. |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Brand Name | Steelheart |
| Certifications | cETLus, ETL-Sanitation |
| Height | 33.75in |
| Width | 60" - 71" |
| Depth | 31.0in |
| Shipping Weight | 310.0lbs |
| Doors | solid door(s) |
| Refrigeration | self-contained, rear mounted |
| Access Type | doors |
| Size | 2 section |
| Compressor HP | 1/3 HP |
| Exterior Finish | all stainless steel exterior |
| Specifications | Steelheart Series Undercounter Freezer, reach-in, two-section, 60"W, 15.27 cu. ft., self-contained rear mounted refrigeration system, (2) solid hinged doors, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, hot gas condensate removal, sides & top, (4) 4" stem casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/3 HP, NEMA 5-15P, cETLus, ETL-Sanitation |
