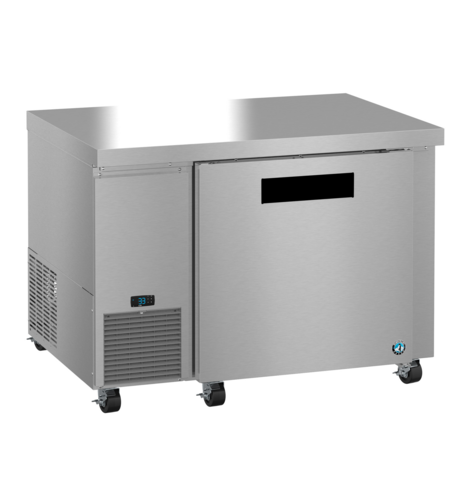

Hoshizaki ULF46B Steelheart Undercounter & Worktop Refrigeration
Product Description
The Hoshizaki ULF46B is a high-performance, ENERGY STAR® certified reach-in freezer designed to excel in the hottest kitchens. This powerful Steelheart model maintains NSF-7 food-safe temperatures even in ambient conditions up to 100 °F, yet it fits neatly beneath standard 34" worktops to keep your workflow smooth, organized, and ice-cold. With a 1" clearance required at the rear for the bumper depth, this freezer is the perfect space-saving solution for your busy kitchen. Always follow local codes and the installation manual for safe operation, and consider using a GFCI breaker if required.
Why chefs choose the ULF46B:
- The front-breathing, side-mounted refrigeration requires only 1 inch of rear clearance, making it perfect for tight installations.
- The 11.78 cubic foot interior can hold two full-size sheet pans on 120-pound rated epoxy-coated shelves.
- The all-stainless interior, front, sides, and top provide superior sanitation and long-lasting durability.
- The field-reversible solid door has a flush aluminum handle, spring-assisted self-close, and stays open at 90 degrees.
- The exclusive "stepped" door edge protects the gasket, and the magnetic gaskets snap out for quick cleaning.
- The digital controller has a set-point range of -10°F to 10°F (factory set at 2°F) and an easy-to-read temperature display.
- The environment-friendly R290 refrigerant and ENERGY STAR® efficiency result in only 3.36 kWh/day of energy use.
- The hot-gas condensate removal and removable air filter keep maintenance simple and tool-free.
- It ships on four 4-inch polyolefin stem casters (3 with brakes) and a 10-foot NEMA 5-15P cord.
Popular factory options:
- Casters that are either 2 inches or 6 inches in size
- A single overhead shelf or a double overhead shelf
- Additional epoxy or stainless steel shelves
- A hands-free foot pedal door kit that can be installed on the left or right side of the door
Product Specs
| Specification | Value |
|---|---|
| Model | ULF46B (Steelheart Series) |
| Capacity | 11.78 cu ft (AHAM) |
| Exterior dimensions* | 46" W × 33.25" D × 33.875" H (with 4" casters) |
| Depth with door 90° | 60.5" |
| Shelves (standard) | 2 adjustable epoxy-coated; 28.75" W × 25.5" D; 120 lb capacity each |
| Temperature range | –10 °F – 10 °F (recommended 2 °F) |
| Refrigerant / Charge | R290 Hydrocarbon / 2.6 oz |
| Compressor | 1/3 + HP (2,431 BTU/hr) |
| Defrost | Heated, time-initiated |
| Electrical | 115 V / 60 Hz / 1 ph · 4 A · NEMA 5-15P · 15 A HACR breaker |
| Energy usage | 3.36 kWh per day (ASHRAE) |
| Certifications | ENERGY STAR®, cETLus, ETL-Sanitation, AHAM, NSF-7 |
| Casters | 4" polyolefin stem casters (3 locking) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Hoshizaki |
| Brand Name | Steelheart |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR |
| Height | 33.87in |
| Width | 45" - 47" |
| Depth | 33.25in |
| Shipping Weight | 263.0lbs |
| Energy Efficiency | ENERGY STAR® |
| Exterior Finish | stainless steel front, sides, & top |
| Compressor HP | 1/3 HP |
| Size | 1 section |
| Access Type | doors |
| Refrigeration | self-contained, side mounted |
| Doors | solid door(s) |
| Specifications | Steelheart Series Undercounter Freezer, reach-in, one-section, 46"W, 11.78 cu. ft., self-contained side mounted refrigeration system, (1) solid hinged door, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, hot gas condensate removal, (4) 4" stem casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/3 HP, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR® |
