Description

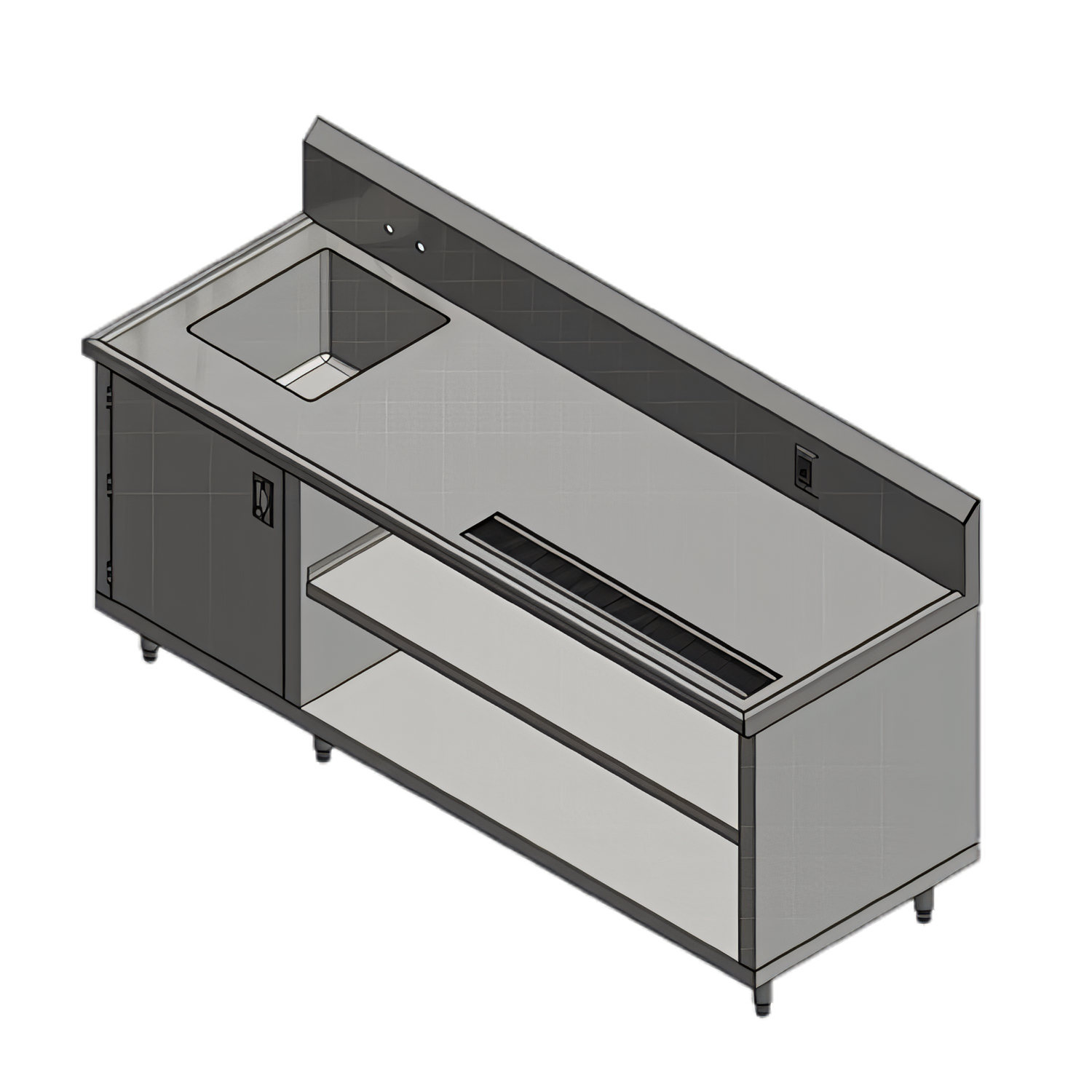

John Boos 4CB4R10-30144-L Bar Equipment
Product Description
This 12-foot John Boos beverage table is engineered for busy cafes, hotels, and banquet facilities. It provides a dedicated zone for brewing, dispensing, and clean-up in one seamless station. Crafted with heavy-duty 14 gauge Type 300 stainless steel, it features a full 10-inch backsplash and built-in utilities to keep your beverage service safe, sanitary, and efficient.
Why you'll love it:
- The expansive 144" x 30" workspace can accommodate multiple brewers, urns, and cambros at the same time.
- The integrated 18" x 18" x 12" sink (on the left) has 4" on-center splash-mount faucet holes and a 3-1/2" drain for quick rinsing.
- The 36" urn trough with a removable louvered grate funnels run-off into a 2" drain, preventing messy spills.
- The marine edge and Stallion Safety Edge keep liquids on the counter, not on your floor.
- The open cabinet base includes an intermediate shelf for storing filters, pitchers, and backup supplies.
- The hinged front door hides the plumbing under the sink while leaving the rest of the base open for easy access.
- The factory-installed 20 A duplex outlet in the backsplash provides power for grinders, blenders, or countertop brewers.
- The unit is NSF listed and fully TIG-welded, ensuring food-safe, rock-solid performance right out of the crate.
Product Specs
| Specification | Value |
|---|---|
| Model | 4CB4R10-30144-L (Sink Left) |
| Overall dimensions | 144" W × 30" D × 45-¾" H (to top of backsplash) |
| Working height | 36" |
| Countertop | 14 GA Type 300 stainless steel, #4 satin polish |
| Backsplash | 10" high, includes duplex GFCI outlet |
| Front / side edges | 1-½" Stallion Safety Edge (front) & square turndown (ends) with non-drip marine edge |
| Sink bowl | 18" W × 18" F-B × 12" deep, 3-½" basket drain, 4" O/C faucet holes |
| Urn trough | 36" length, louvered grate, 2" drain connection |
| Base construction | 18 GA Type 430 stainless wrap, open front, one hinged door under sink, one intermediate shelf |
| Legs / feet | Removable stainless steel legs with adjustable bullet feet |
| Reinforcement | Sound-deadened top with continuous 2" × 3" reinforcing channels |
| Shipping weight | ≈ 550 lb (ships welded, ready to install) |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | John Boos |
| Certifications | NSF |
| Height | 45.75in |
| Width | 144.0in |
| Depth | 30.0in |
| Shipping Weight | 550.0lbs |
| Depth (front - back) | 30" |
| Style | cabinet base with open shelf(s) |
| Exterior Finish | all stainless steel exterior |
| Width (side - side) | 144" |
| Specifications | Beverage Table, cabinet base with open front, 144"W x 30"D x 45-3/4"H overall size, 14/300 stainless steel top with 10" backsplash, marine edge top, Stallion Safety Edge front and square turndown ends, (1) 18"W x 18" front-to-back x 12" deep sink on left, (1) set of splash mount faucet holes with 4" centers, 3-1/2" drain opening, hinged door in front of sink, 36" urn trough & louvered grate with 2" drain, (1) intermediate shelf, includes 1-ph duplex outlet in backsplash, 18/430 stainless steel wrap with legs & adjustable feet, NSF |
