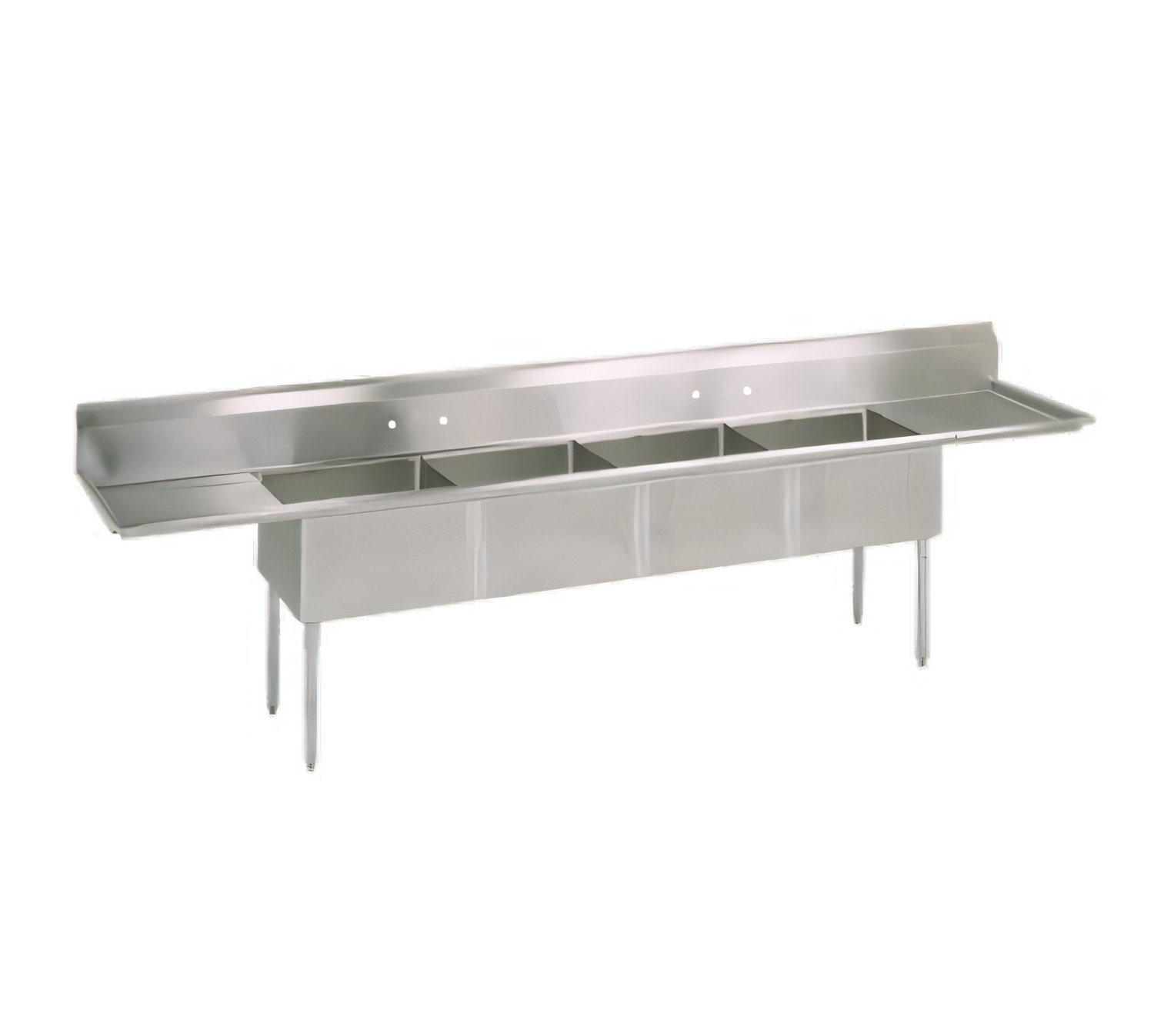

John Boos E4S8-1620-14T18 Compartment Sinks

John Boos E4S8-1620-14T18 Compartment Sinks



Regular price $1,935.46
$1,935.46
Sale price
Regular price
Sale Sold out

From $36.77/week with



Need more information? Contact us today!

John Boos E4S8-1620-14T18 Compartment Sinks

Product Description

Model E4S8-1620-14T18 | 100" W x 25-1/2" D x 43-3/4" H overall This commercial-grade John Boos E-Series compartment sink is built to withstand the demands of a busy kitchen. Crafted from durable 18-gauge, type 300 stainless steel, it features four 14-inch deep bowls for high-volume ware washing and two 18-inch drainboards to keep clean and dirty items separated. Its compact footprint makes efficient use of limited kitchen space.

Key Features:

  • Four bowls, each measuring 16" wide, 20" front-to-back, and 14" deep, with 3/4" radius coved corners for easy cleaning.
  • Two 18" drainboards integrated into the top for efficient landing and drying of dishes.
  • 9-3/4" boxed backsplash with a 45-degree top cap, 2" wall return, and 1" tile edge.
  • Two sets of 1-1/8" faucet holes on 8" centers, ready for splash-mount faucets.
  • 3-1/2" die-stamped drain openings that are compatible with standard basket drains.
  • #4 satin finish that resists corrosion and wipes clean easily.
  • Bull-nosed outer edges for operator safety and a polished, professional look.
  • 1-5/8" diameter galvanized legs and gussets with 1" adjustable plastic bullet feet.
  • NSF and CSA-Sanitation listed for foodservice use.

Care & Cleaning Tips:

  • Wash the item daily using a mild soap or non-chlorine detergent and a soft cloth.
  • Avoid using harsh chemicals or steel wool, as they can scratch the protective finish.
  • Rinse and dry the item after each use to maintain the stainless steel's protective "passive" film.
  • For stubborn stains, use a non-abrasive cleanser like Bar Keepers Friend.

Product Specs

Specification Value
Overall dimensions 100" W x 25-1/2" D x 43-3/4" H (to top of backsplash)
Work height 36" (floor to sink rim)
Compartment (each) 16" W x 20" F/B x 14" D
Drainboards 18" long, left & right
Material & finish 18 ga. type 300 stainless steel, #4 satin polish
Backsplash 9-3/4" H boxed style, 45° top, 2" return
Faucet mounting (2) splash-mount hole sets, 8" on center, 1-1/8" Ø
Drain opening 3-1/2" die-stamped (per bowl)
Legs / feet Galvanized steel legs & gussets, 1" adjustable plastic bullet feet
Certifications NSF, CSA-Sanitation
Shipping weight ≈ 122 lb

Features

Specification Value
Manufacturer John Boos
Certifications NSF, CSA-Sanitation
Height 43.75in
Width 100.0in
Depth 25.5in
Shipping Weight 122.0lbs
Base Type legs
Top Gauge 18 gauge
Sink Depth (rim - drain) 14"
Compartment (front - back) 20"
Compartment Width (side - side) 16"
Overall Length 98" - 113"
Top Stainless Series 300 series
Splash Height 9-3/4"
Drainboards with left & right-hand drainboards
Base Construction galvanized
Specifications E-Series Sink, 4-compartment, 100"W x 25-1/2"D x 43-3/4"H overall size, (4) 16"W x 20" front-to-back x 14" deep compartments, (2) 18" drainboards, 9-3/4"H boxed backsplash with 45° top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
