Description
John Boos FTFG-2436 Commercial Faucets & Plumbing
Product Description

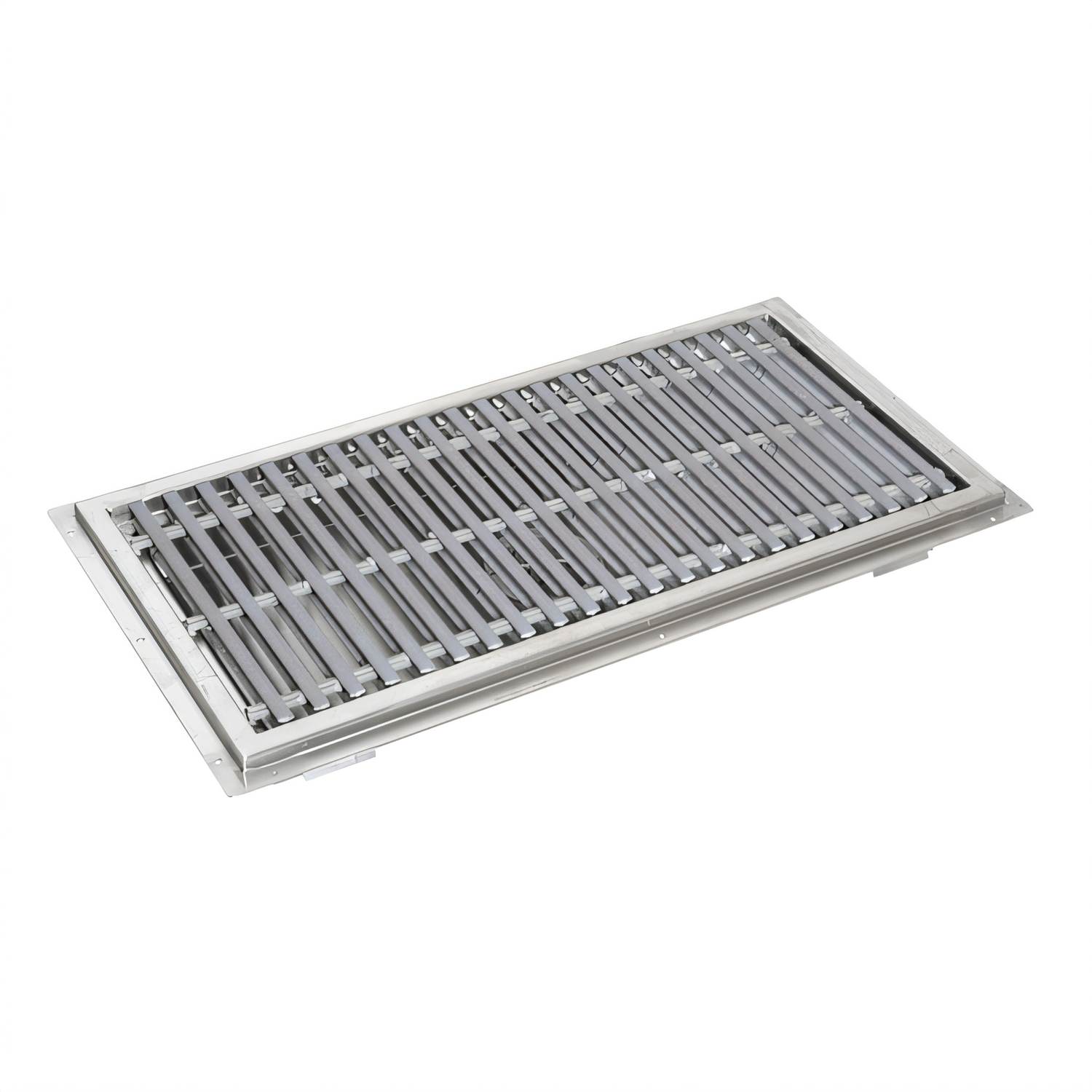

The 14 gauge Type 300 stainless steel pan is designed for the demands of commercial kitchens, food-processing facilities, and high-traffic wash-down areas. It features a removable, non-slip fiberglass grate that helps keep floors dry, safe, and sanitary. The dimensions are typical, with a tolerance of ±0.50", and the manufacturer reserves the right to make product improvements without prior notice.
Key Features:
- The drain pan measures 36 inches long, 24 inches wide, and 4 inches deep. It is made with all-welded construction.
- The pan has a 5-degree built-in slope to promote fast and efficient drainage.
- The surface features a subway-style gray fiberglass grate, spaced 1.5 inches apart, providing superior traction.
- The drain accepts pipes up to 4 inches in outer diameter and 3.25 inches long.

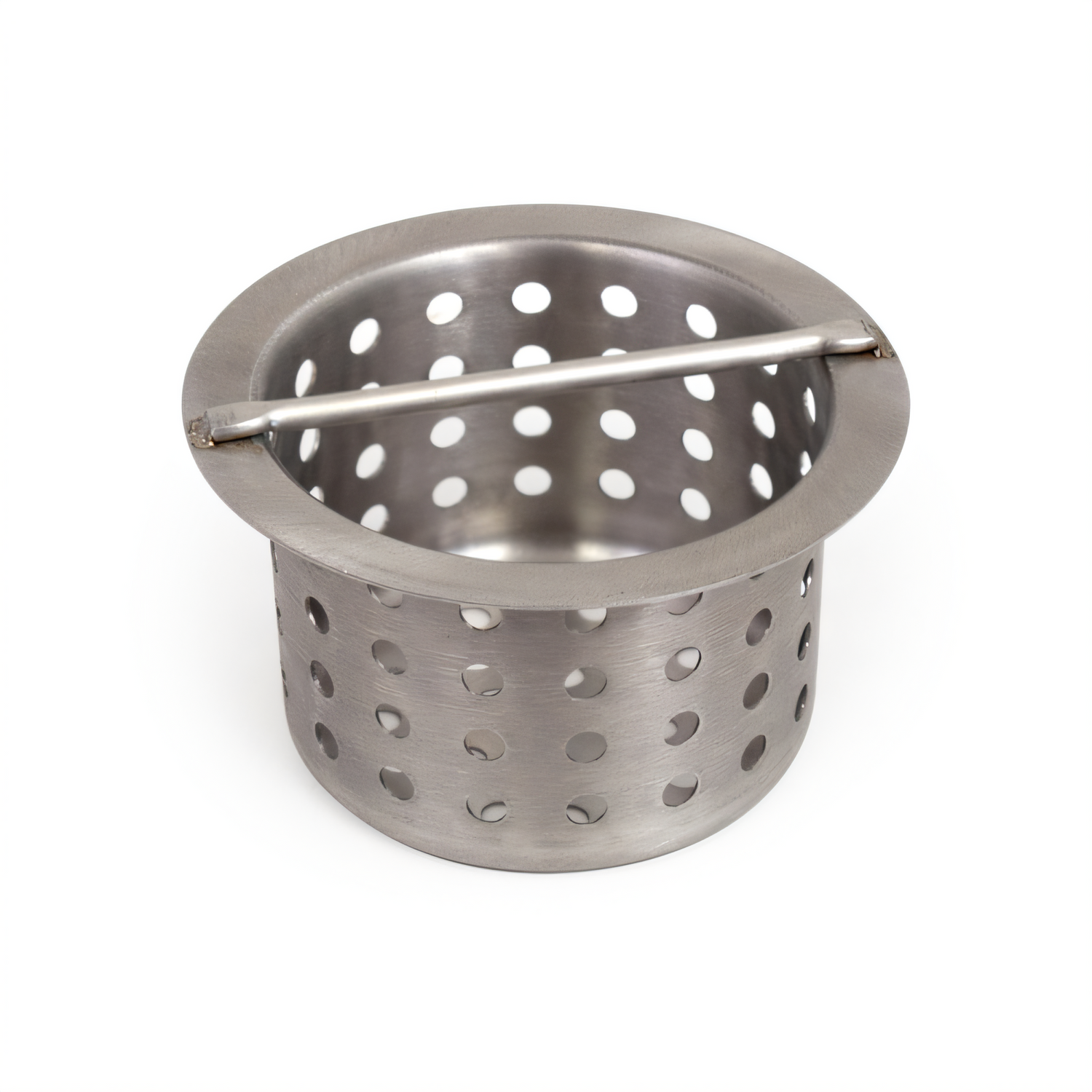

- The centered drain includes a removable, perforated stainless steel strainer.
- The entire unit is constructed with TIG-welded stainless steel, and the exposed welds are polished to match the adjoining surfaces.
- The 14-gauge Type 300 stainless steel construction resists corrosion and is suitable for heavy-duty use.
- This product is NSF-certified and suitable for food service applications, making it ideal for use in kitchens, breweries, dairies, and similar environments.
Product Specs
| Specification | Value |
|---|---|
| Model | FTFG-2436 |
| Overall Size (L × W × D) | 36" × 24" × 4" |
| Pan Material | 14 ga Type 300 stainless steel |
| Grating | Removable gray fiberglass, non-slip surface, 1-½" centers |
| Drain Location | Centered |
| Drain Pipe Capacity | Up to 4" O.D. (3.25" long) |
| Supplied Strainer | Stainless steel, removable, perforated basket |
| Bottom Pitch | 5° (built-in) |
| Approx. Weight | 74 lbs |
Features
| Specification | Value |
|---|---|
| Manufacturer | John Boos |
| Height | 4.0in |
| Width | 36.0in |
| Depth | 24.0in |
| Shipping Weight | 74.0lbs |
| Grate Construction | fiberglass grates |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Trough Construction | 14 ga stainless steel trough |
| Depth (short side) | 24" |
| Grate Type | subway-style grating |
| Width (long side) | 25" - 36" (3 ft) |
| Specifications | Floor Trough, 36"W x 24"D, subway-style fiberglass grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel |
