Description
John Boos FTSG-2472 Commercial Faucets & Plumbing
Product Description

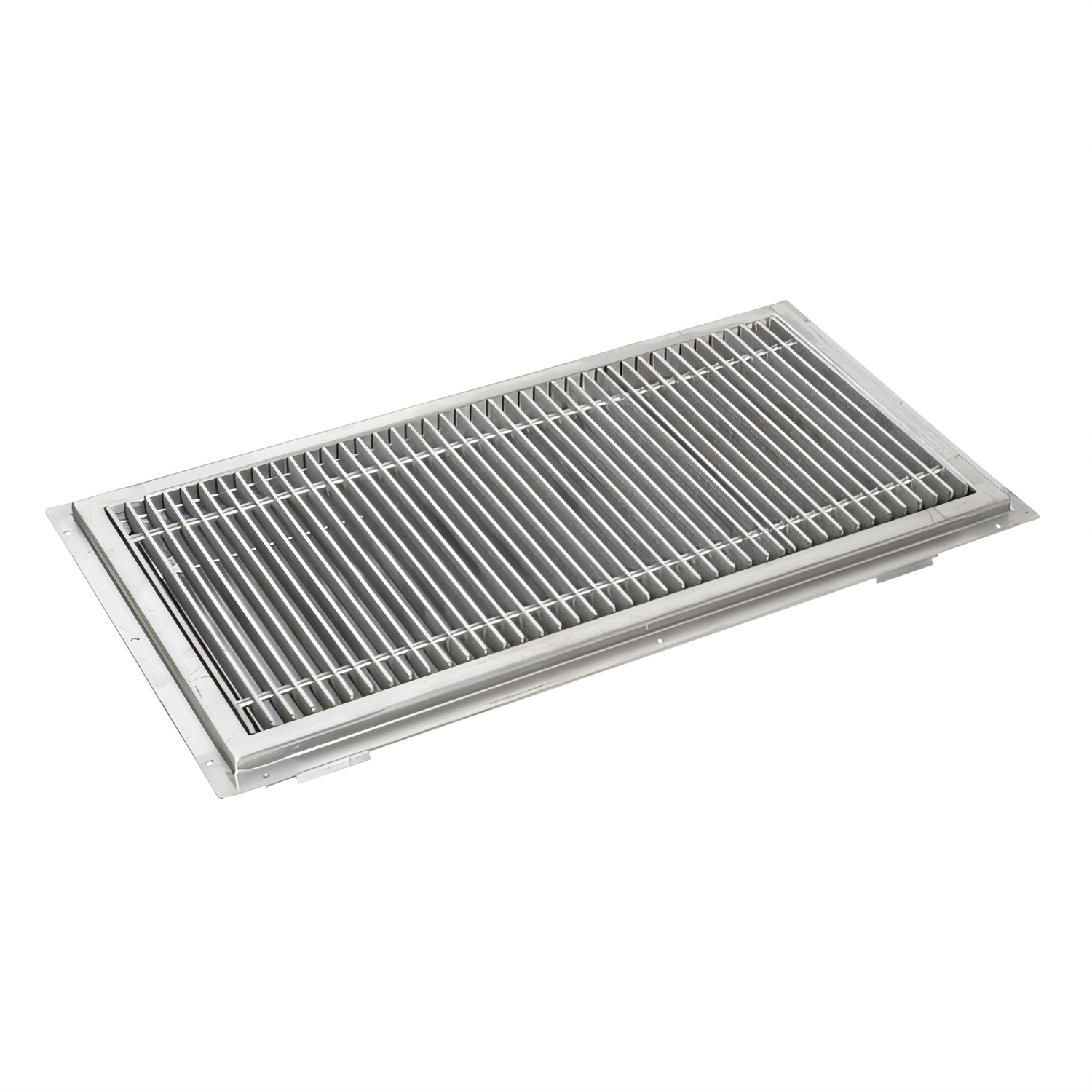

This sturdy floor trough is constructed with 14-gauge 300 series stainless steel and features a subway-style grating design. It is NSF listed, making it suitable for use in commercial kitchens and other food service environments. Built to withstand heavy traffic from pallet jacks, keg carts, and frequent high-pressure cleaning, this trough helps keep aisles dry, safe, and in compliance with industry standards. The dimensions provided are approximate, with a tolerance of plus or minus 0.5 inches.
Key Features:
- The pan is 4 inches deep and made with a single piece of TIG-welded stainless steel, featuring a 5-degree built-in pitch for efficient drainage.
- The removable grate is designed like subway grates, with solid 3/8-inch diameter rods and 3/16-inch by 1-inch bar stock on 3/4-inch centers, providing superior load strength.
- The centered outlet accepts drain pipes up to 4 inches in outer diameter, with a 3.25-inch long stub.

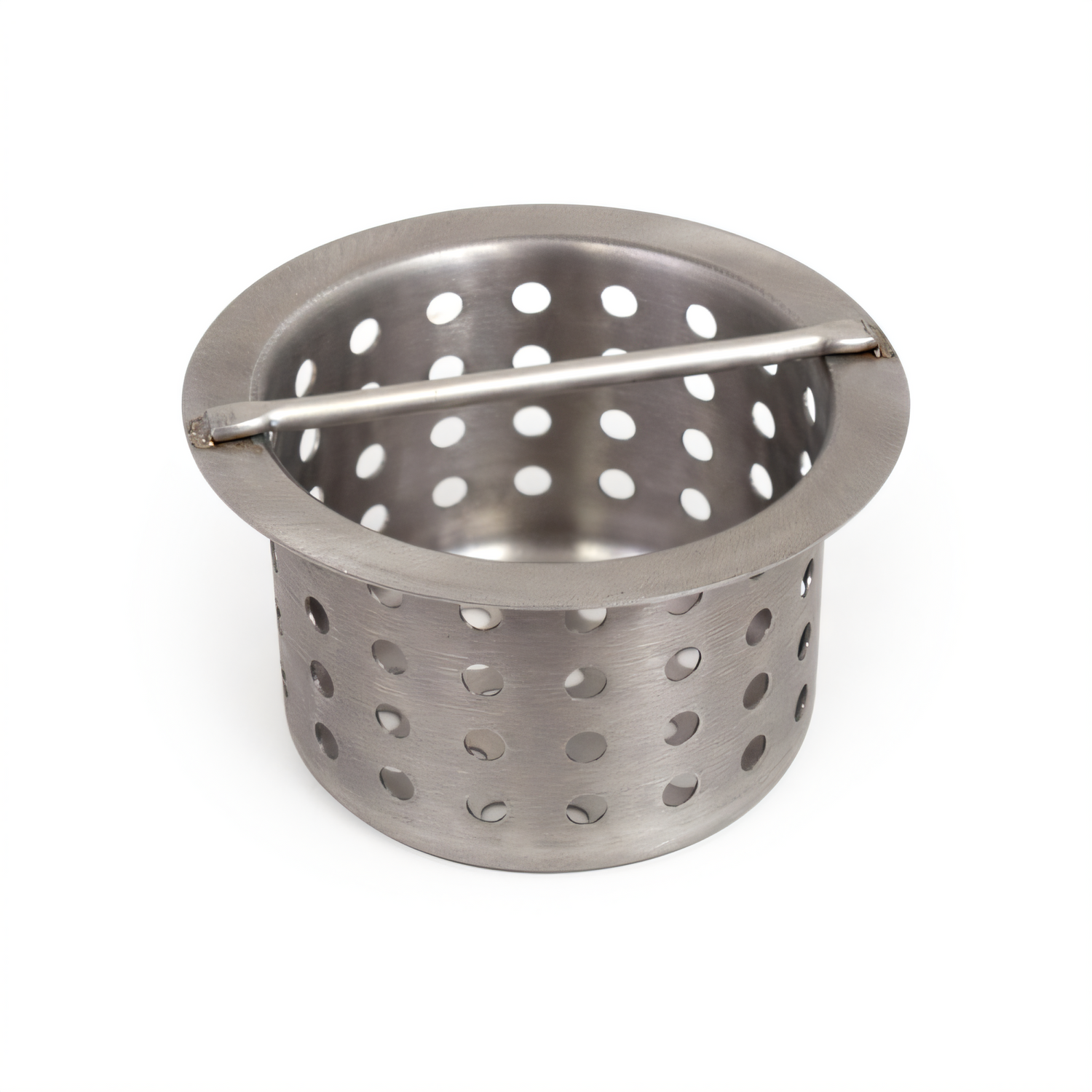

- The stainless steel perforated basket strainer lifts out easily to trap solids and prevent clogs.
- All exposed welds are polished flush for a seamless, sanitary finish.
- Fabricated from heavy-duty 14-gauge, Type 300 stainless steel, ensuring rust resistance and food safety.
- NSF certified and proudly made in Effingham, Illinois, USA.
Care & Maintenance:
- Clean the item regularly using mild soap or Bar Keepers Friend and a soft cloth or plastic scrub pad.
- Rinse thoroughly and wipe dry to maintain the stainless steel's protective coating.
- Avoid using harsh chemicals like chlorides, bleach, or steel wool, as they can scratch or damage the surface.
Product Specs
| Specification | Value |
|---|---|
| Model | FTSG-2472 |
| Overall length | 72" / 1829 mm |
| Overall width | 24" / 610 mm |
| Pan depth | 4" / 102 mm |
| Material & gauge | 14 ga 300 series stainless steel |
| Grate style | Subway-style stainless steel grate |
| Drain location | Centered |
| Drain connection | Up to 4" O.D. pipe (3.25" stub) |
| Included accessory | Removable stainless steel basket strainer |
| Net weight | 150 lb / 68 kg |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | John Boos |
| Height | 4.0in |
| Width | 72.0in |
| Depth | 24.0in |
| Shipping Weight | 150.0lbs |
| Depth (short side) | 24" |
| Deep (pan depth) | 4" |
| Width (long side) | 61" - 72" (6 ft) |
| Pan Type | non anti-splash |
| Trough Construction | 14 ga stainless steel trough |
| Grate Construction | stainless steel grates |
| Grate Type | subway-style grating |
| Specifications | Floor Trough, 72"W x 24"D, subway-style stainless steel grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel |
