Description
John Boos FTFG-18120 Commercial Faucets & Plumbing
Product Description
The John Boos floor trough is engineered for the toughest wash-down environments. It features a heavy-duty 14-gauge stainless steel drain pan and a removable subway-style fiberglass grate to keep large prep and ware-washing areas safe, sanitary, and dry. The trough has dual 4-inch drains for optimal water flow and drainage. All dimensions are typical and carry a tolerance of ± 0.50 inches per manufacturer specifications.
Key Features:
- The shower pan is 120" (10 feet) long and 18" wide, providing a large splash zone.
- The 4-inch deep, all-welded pan has a 5-degree built-in pitch for fast and complete drainage.
- The pan has two 4-inch diameter outlet collars that are 3.25 inches long, allowing connection to standard waste pipes.

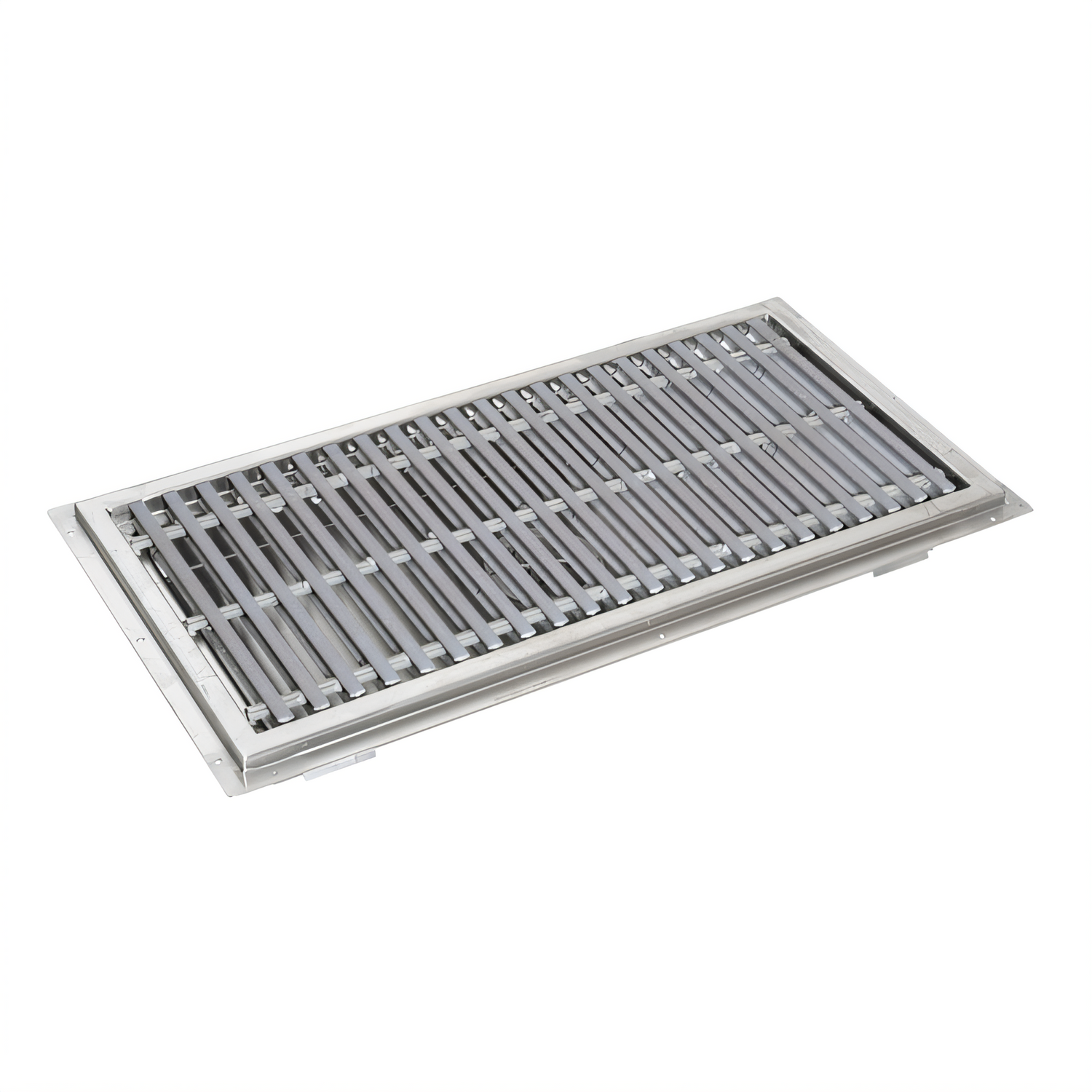

- The gray fiberglass "subway" grate has a non-slip walking surface and is spaced on 1.5-inch centers, making it easy to lift out for cleaning.

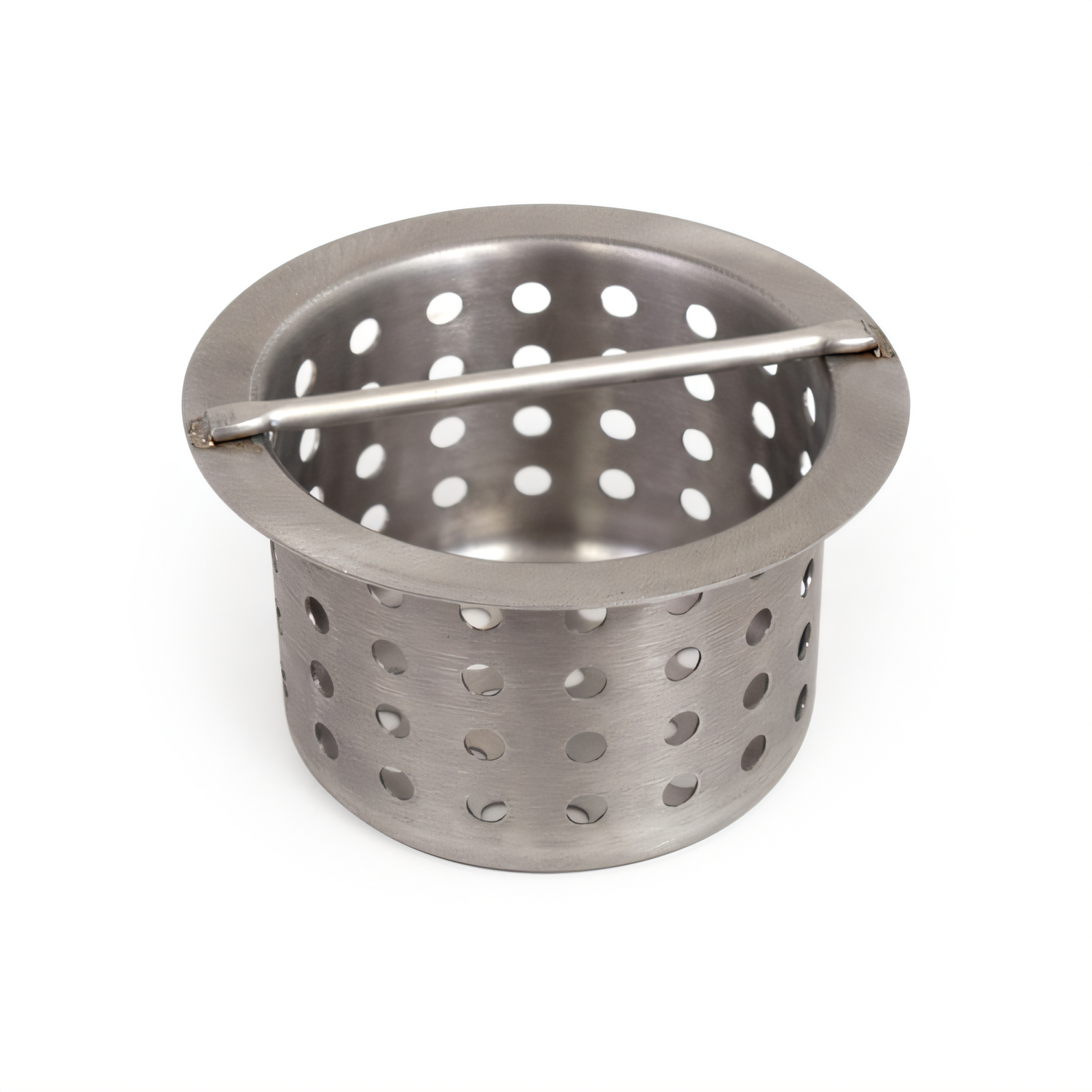

- Stainless steel removable perforated strainers prevent solids from entering the plumbing line.
- The shower pan is made of 14-gauge, Type 300 stainless steel with TIG-welded seams that are polished to match the adjacent surfaces.
Ideal For:
- Commercial kitchens and dish washing areas
- Supermarkets and food preparation zones in retail stores
- Meat, seafood, produce, and dairy processing facilities
- Breweries, wineries, and beverage production plants
Product Specs
| Specification | Value |
|---|---|
| Model | FTFG-18120 |
| Overall Length | 120" (3048 mm) |
| Overall Width | 18" (457 mm) |
| Pan Depth | 4" (102 mm) |
| Drain Outlets | (2) 4" O.D. collars, 3.25" long |
| Drain Center (A) | 28-15/16" from each end |
| Material | 14-Gauge, Type 300 stainless steel pan & frame |
| Grating | Gray fiberglass, non-slip, 1-1/2" bar spacing (subway style) |
| Included Accessories | (2) Stainless steel removable perforated strainers |
| Shipping Weight | 146 lb (66 kg) |
Features
| Specification | Value |
|---|---|
| Manufacturer | John Boos |
| Height | 4.0in |
| Width | 120.0in |
| Depth | 18.0in |
| Shipping Weight | 146.0lbs |
| Depth (short side) | 18" |
| Grate Construction | fiberglass grates |
| Grate Type | subway-style grating |
| Deep (pan depth) | 4" |
| Width (long side) | 109 - 120" (10 ft) |
| Trough Construction | 14 ga stainless steel trough |
| Pan Type | non anti-splash |
| Specifications | Floor Trough, 120"W x 18"D, subway-style fiberglass grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel |
