John Boos FTSG-1296 Commercial Faucets & Plumbing

Product Description

John Boos Model FTSG-1296 is a durable and efficient floor trough designed for high-traffic food service and industrial wash-down areas. Constructed with a 14-gauge, type 300 stainless steel body and a subway-style grate, this floor trough provides uncompromising strength, smooth drainage, and NSF-listed sanitation. Built to withstand years of heavy use, the FTSG-1296 quickly channels away water and debris, ensuring a clean and safe work environment. For stubborn stains or restoration, John Boos Stainless Steel Cleaner & Polish is recommended.

Why You'll Love It:

  • This unit has a full 8 ft. span (96 in. L) to handle large prep, dish, or bar areas in one run.
  • The space-saving 12 in. wide profile is ideal for tight aisle ways.

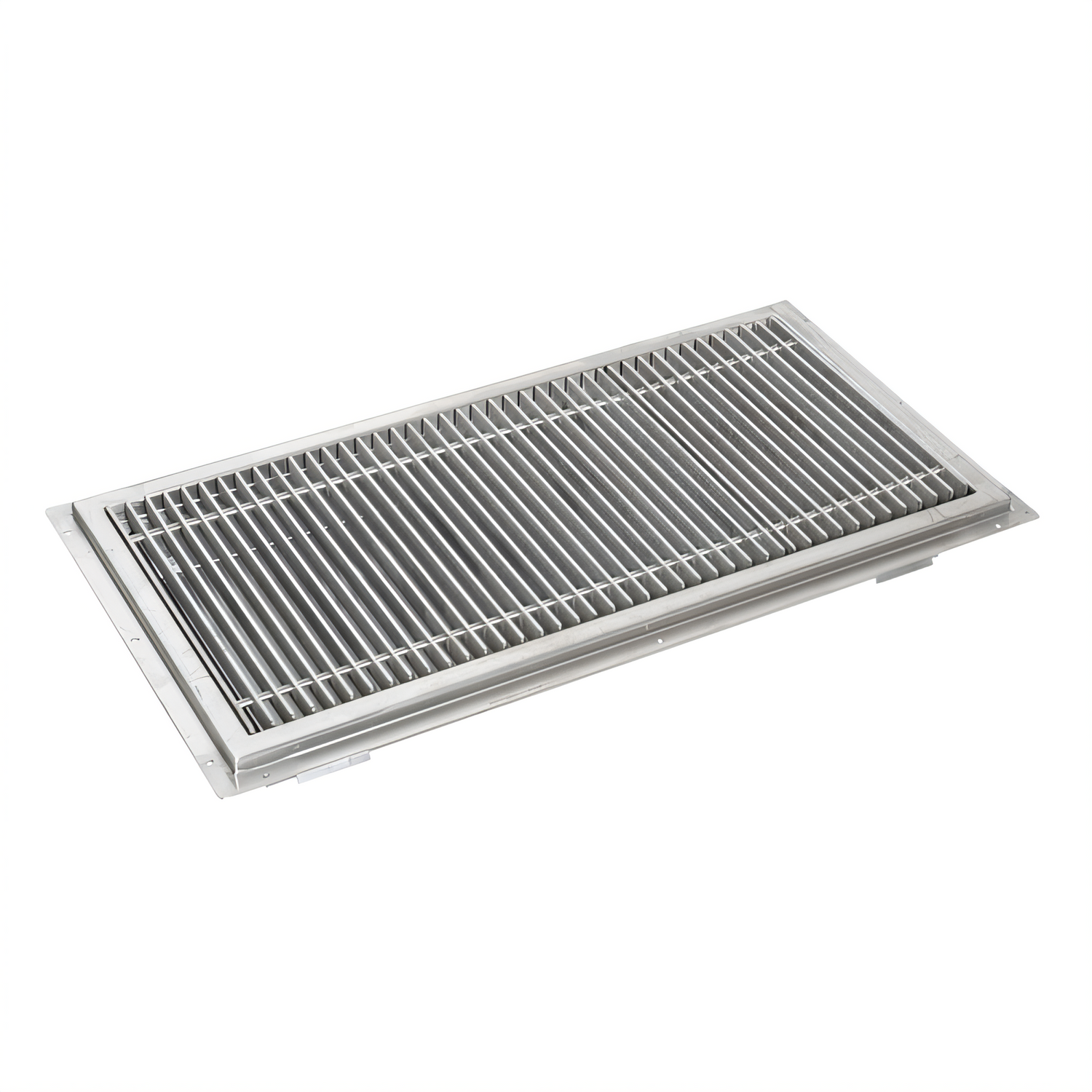

  • The subway-style stainless steel grate features 3/8 in. rods and 3/16 in. x 1 in. bars on 3/4 in. centers, providing superior load support and easy cleaning.
  • The 4 in. deep, all-welded drain pan has a 5° built-in pitch for positive drainage.
  • Dual centrally located drains (accepts up to 4 in. O.D. pipe, 3.25 in. long) maintain high flow rates over the full length.

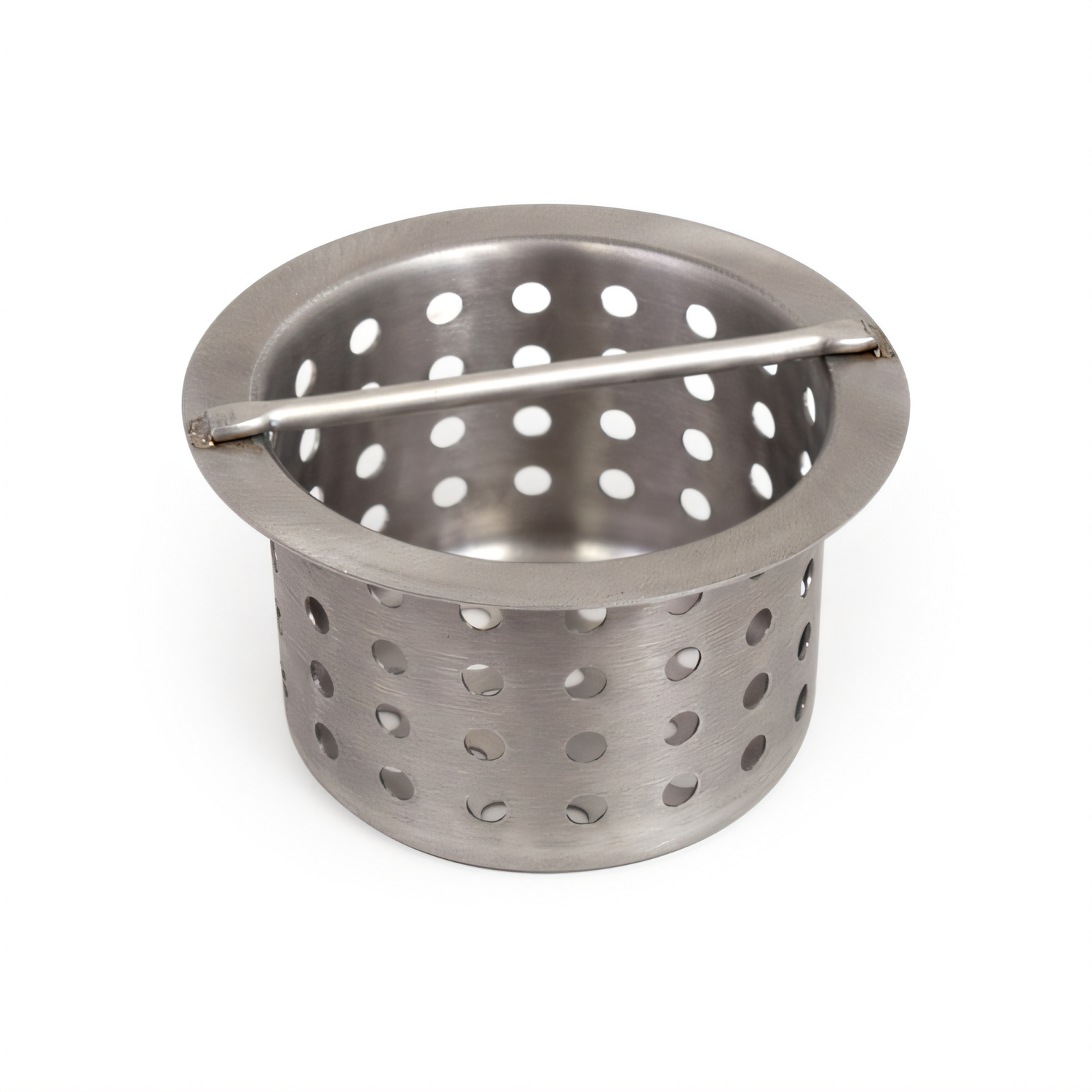

  • The removable perforated strainer basket catches solids before they reach your plumbing.
  • The all TIG-welded construction with polished exposed welds matches adjacent surfaces.
  • The 14-gauge, 300-series stainless steel resists corrosion and heavy impact.
  • This unit is NSF listed for food-service sanitation.

Technical Specifications:

  • Clean the surface daily using a mild, non-chloride detergent and a soft cloth or plastic scouring pad.
  • Wipe in the direction of the stainless steel's polish lines.
  • Avoid using abrasive tools, steel wool, or cleaners containing bleach or quaternary salts.
  • Rinse and dry the surface thoroughly to maintain the protective stainless steel film.

Product Specs

Specification Value
Model FTSG-1296
Overall Length 96 in. (2438 mm)
Overall Width 12 in. (305 mm)
Pan Depth 4 in. (102 mm)
Material & Thickness 14-ga Type 300 stainless steel
Grate Style Removable subway-style stainless steel grate
Drain Connection (2) outlets, 4 in. O.D., 3.25 in. long
Drain Basket Stainless steel, perforated, removable
Net Weight Approximately 100 lb.
Certifications NSF

Features

Specification Value
Manufacturer John Boos
Height 4.0in
Width 96.0in
Depth 12.0in
Shipping Weight 100.0lbs
Pan Type non anti-splash
Deep (pan depth) 4"
Trough Construction 14 ga stainless steel trough
Width (long side) 85" - 96" (8 ft)
Grate Construction stainless steel grates
Grate Type subway-style grating
Depth (short side) 12"
Specifications Floor Trough, 96"W x 12"D, subway-style stainless steel grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel
