Description
John Boos FTSG-1236 Commercial Faucets & Plumbing
Product Description

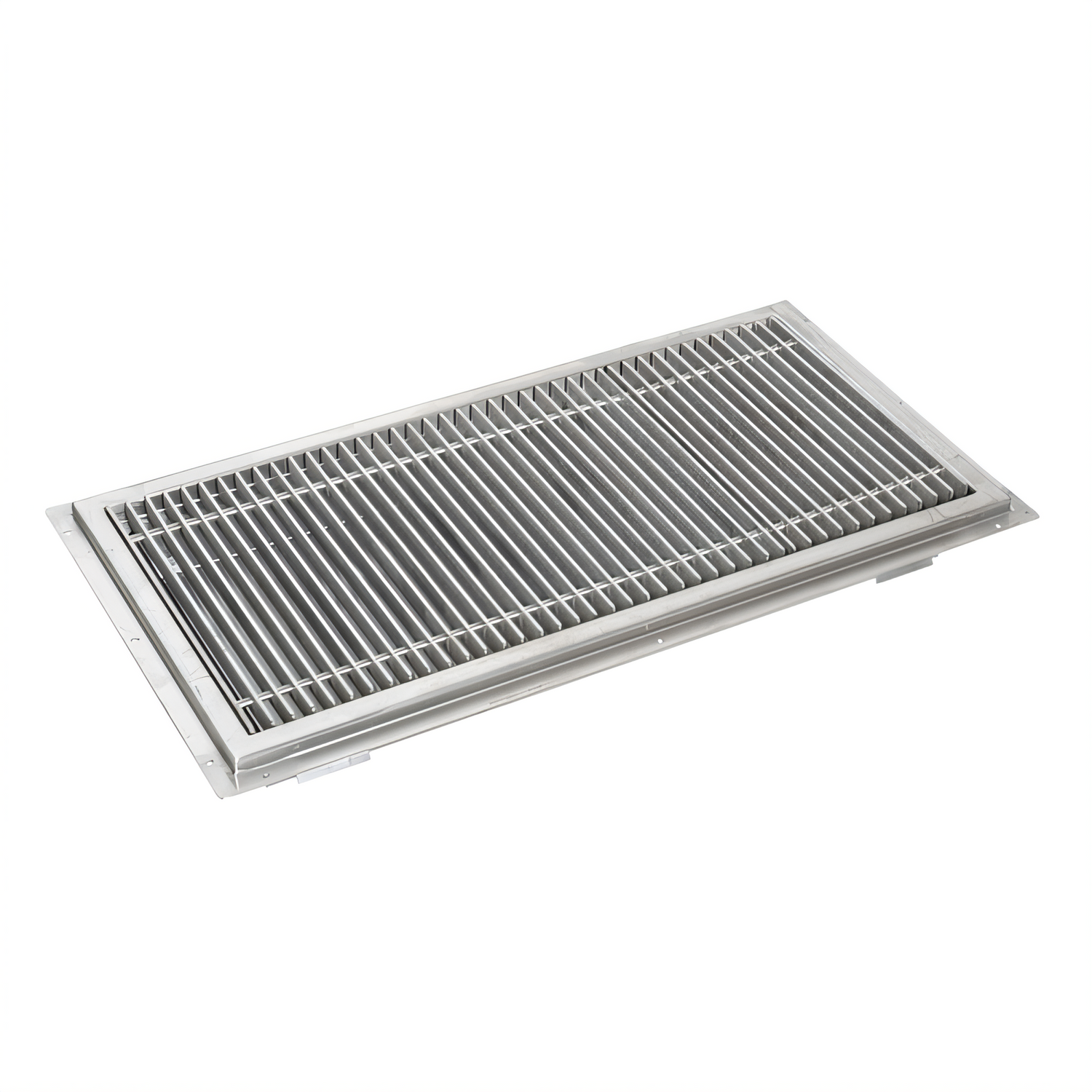

The FTSG-1236 floor trough is designed for high-traffic food service and industrial environments. Its 36-inch length and 12-inch width make it ideal for channeling liquids and debris away from work areas, promoting a safe, clean floor. The heavy-duty, subway-style grate can be easily lifted out for thorough cleaning, while the all-welded, pitched drain pan directs water toward a centered outlet that accepts up to a 4-inch diameter pipe. Crafted from 14-gauge Type 300 stainless steel, this floor trough is built to withstand the demands of busy, wet workspaces. Proper maintenance will preserve the passive stainless film and prevent corrosion.
Why You'll Love It:
- The subway-style grate is built from sturdy 3/8" stainless rods and 3/16" × 1" bars spaced 3/4" apart, providing superior load capacity and a sleek appearance.
- The 4" deep TIG-welded drain pan has 5° breaks for positive drainage, ensuring there is no standing water.
- The centered drain accommodates a 4" O.D. pipe (3.25" long) for efficient water removal.

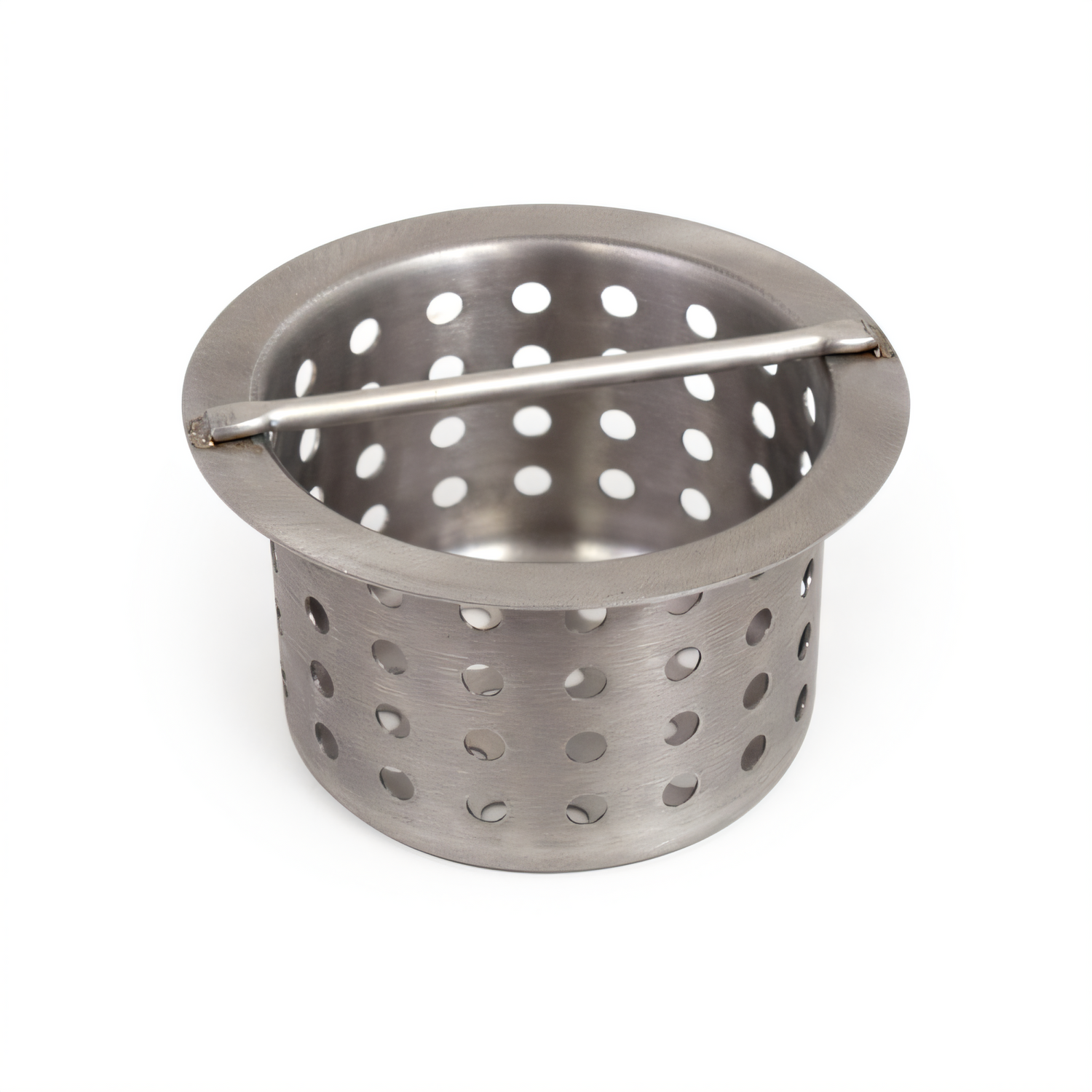

- The included removable perforated stainless steel strainer basket catches solids before they enter your plumbing system.
- The unit is fabricated from 14-gauge, Type 300 stainless steel, ensuring maximum corrosion resistance.
- The exposed welds are ground and polished to match the surrounding finish, creating a seamless appearance.
- This product is NSF listed, making it ready for commercial kitchen or food-processing installation.
Care & Maintenance:
- Clean your product regularly using mild soap, water, and a soft cloth or sponge. Rinse and dry the surface thoroughly.
- Avoid using chlorine bleach or cleaners with chlorides. If these products come into contact with the surface, rinse it off immediately.
- For stubborn stains or buildup, use Bar Keepers Friend and a plastic scouring pad. Always scrub in the direction of the grain.
- After cleaning, apply a non-chloride stainless steel polish, such as John Boos Stainless Steel Cleaner, to restore the shine.
Product Specs
| Specification | Value |
|---|---|
| Model | FTSG-1236 |
| Overall dimensions | 36" L × 12" W × 4" D (grate sits flush with floor) |
| Grate style | Subway-style, removable |
| Material & thickness | 14 GA (0.078") Type 300 stainless steel |
| Drain outlet | Centered; fits up to 4" O.D. pipe, 3.25" long |
| Weight | Approx. 37 lb |
| Certifications | NSF |
| Tolerances | ± 0.50" |
Features
| Specification | Value |
|---|---|
| Manufacturer | John Boos |
| Height | 4.0in |
| Width | 36.0in |
| Depth | 12.0in |
| Shipping Weight | 37.0lbs |
| Pan Type | non anti-splash |
| Deep (pan depth) | 4" |
| Trough Construction | 14 ga stainless steel trough |
| Grate Construction | stainless steel grates |
| Width (long side) | 25" - 36" (3 ft) |
| Depth (short side) | 12" |
| Grate Type | subway-style grating |
| Specifications | Floor Trough, 36"W x 12"D, subway-style stainless steel grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel |
