John Boos FTSG-1896 Commercial Faucets & Plumbing

Product Description

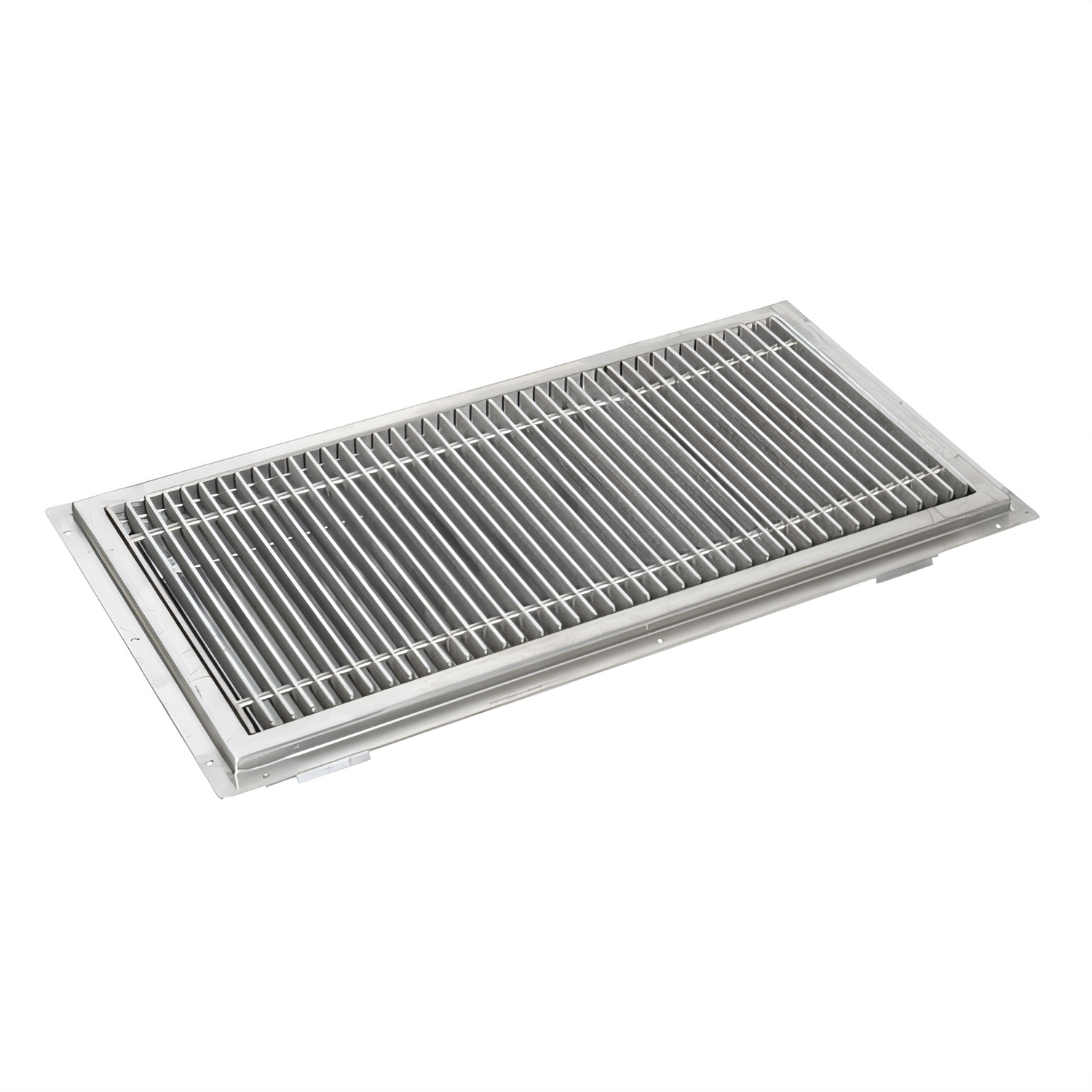

The John Boos FTSG-1896 floor trough is designed for the demands of commercial kitchens, food-processing facilities, and other high-traffic, wash-down areas. Constructed with heavy-duty 14 gauge, 300-series stainless steel, this floor trough offers precise engineering for fast, sanitary drainage. The subway-style grating and dual drains ensure efficient water flow and easy cleaning. To maintain the protective stainless steel finish, clean the trough with non-chloride cleansers and a soft cloth or plastic scouring pad, wiping along the polish lines.

Key Features:

  • The drain grate is removable, like a subway grate, and is made of 3/8-inch diameter stainless steel rods with 3/16-inch by 1-inch bar stock spaced 3/4-inch apart.
  • The drain pan is 4 inches deep, fully TIG-welded, and has a 5-degree pitch to ensure positive drainage flow.
  • The drain can accommodate up to a 4-inch outer diameter drain pipe, with a 3-1/4-inch long connection.

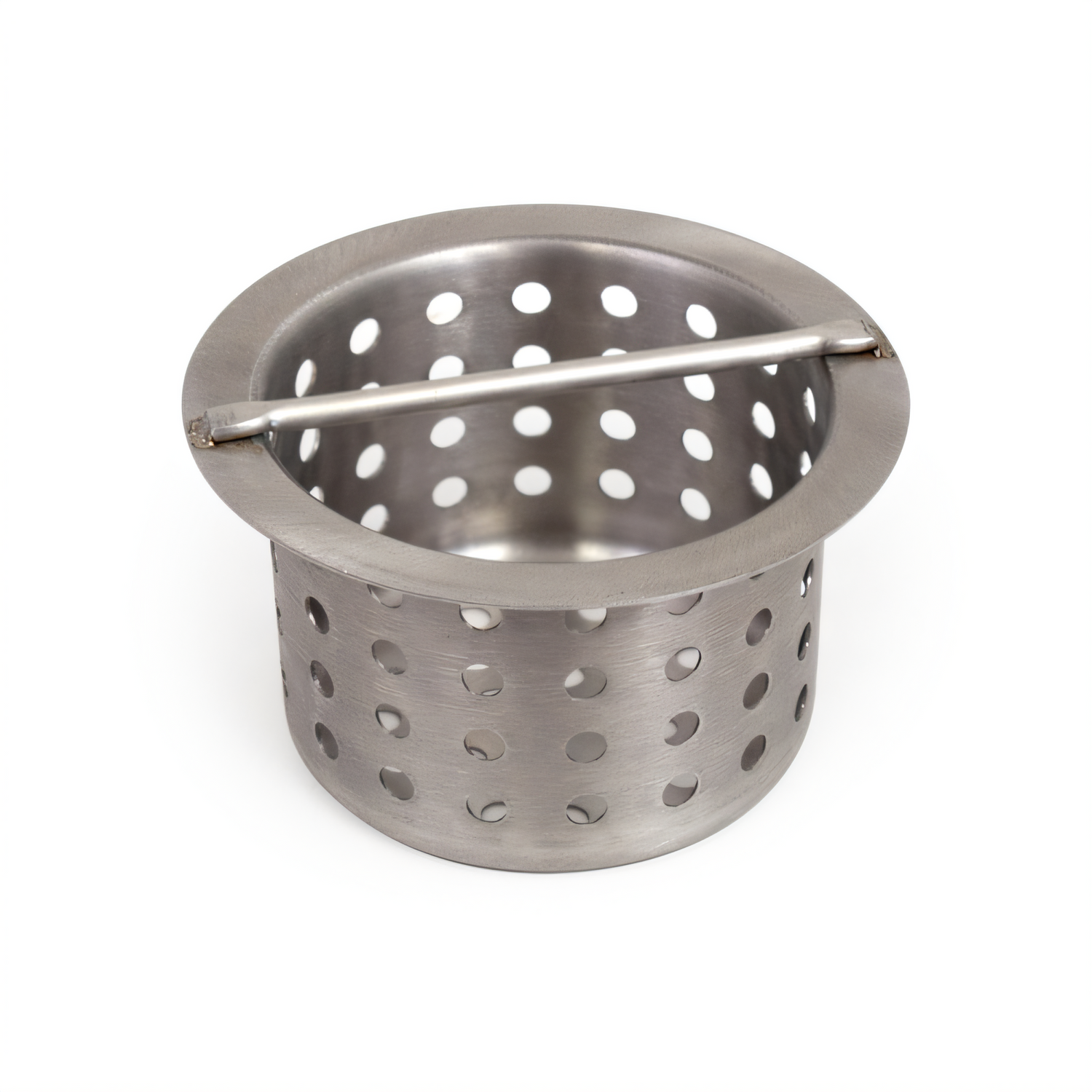

  • Includes two removable, perforated stainless steel strainer baskets.
  • The exposed welds are polished to match the adjacent surfaces, creating a seamless look.
  • This product is NSF (National Sanitation Foundation) listed and proudly made in the USA by John Boos & Co.

Why Choose John Boos?:

  • John Boos has been making high-quality American-made products for over 130 years since 1887.
  • The products feature precision TIG welding, which ensures they are leak-proof and durable.
  • The easy-lift grating and strainer make daily cleaning a simple task.
  • The 14-gauge construction is built to withstand heavy use and rolling racks.

Product Specs

Specification Value
Model FTSG-1896
Overall Dimensions 96" L × 18" W × 4" D
Material & Gauge 14 ga, Type 300 stainless steel
Grate Style Subway-style stainless steel grating (removable)
Drain Quantity / Size 2 drains, accepts up to 4" Ø pipe
Included Accessories 2 stainless steel strainer baskets (removable)
Weight Approx. 135 lb
Certifications NSF

Features

Specification Value
Manufacturer John Boos
Height 4.0in
Width 96.0in
Depth 18.0in
Shipping Weight 135.0lbs
Width (long side) 85" - 96" (8 ft)
Grate Construction stainless steel grates
Deep (pan depth) 4"
Grate Type subway-style grating
Depth (short side) 18"
Trough Construction 14 ga stainless steel trough
Pan Type non anti-splash
Specifications Floor Trough, 96"W x 18"D, subway-style stainless steel grating, 4" deep all-welded drain pan with built-in pitch, accommodates up to a 4" diameter pipe, includes stainless steel removable perforated strainer, 14/300 stainless steel
