Description

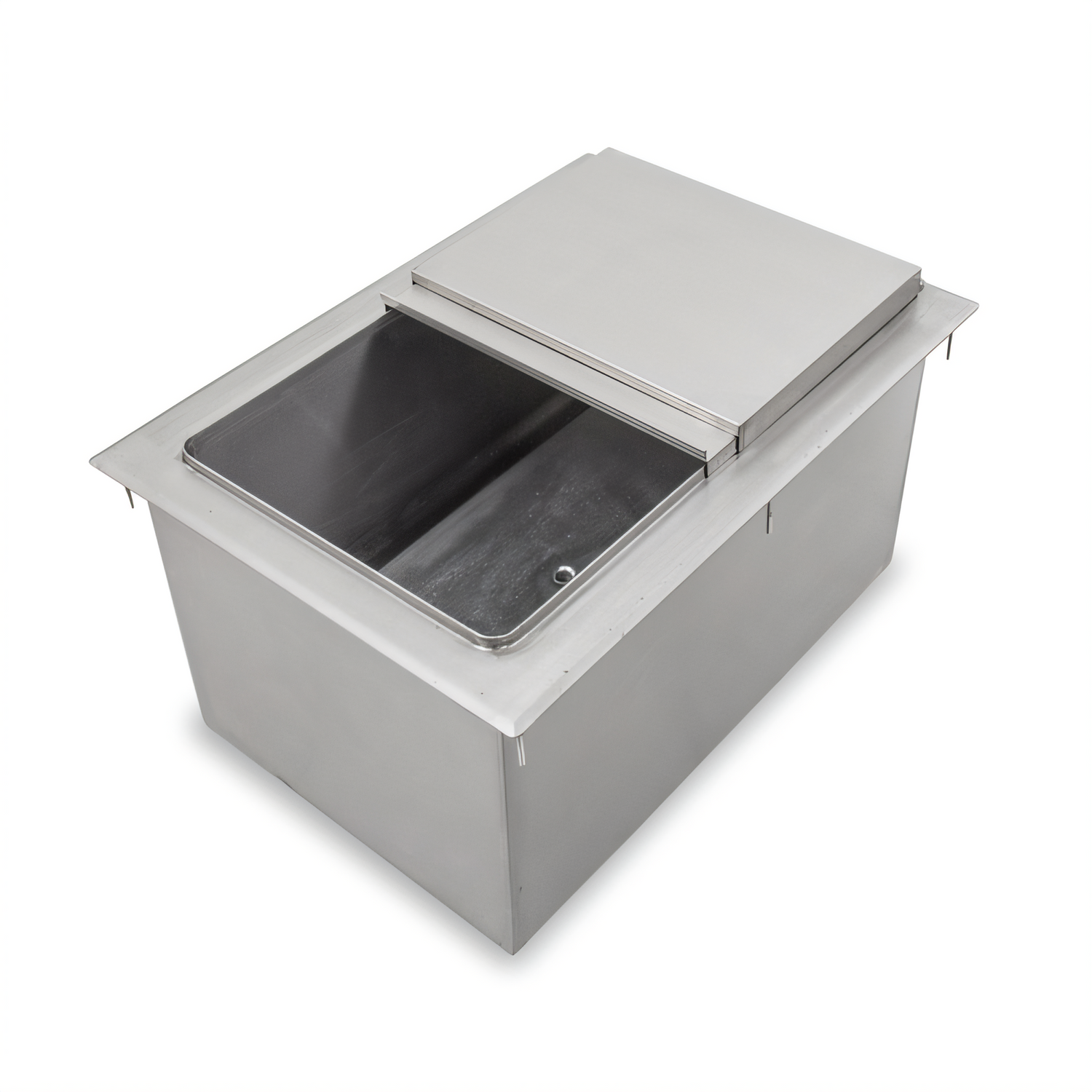

John Boos PB-DIIB3420CP10 Bar Equipment
Product Description
The John Boos PB-DIIB3420-CP10 is a high-capacity ice solution designed for busy commercial environments like bars and beverage stations. Equipped with a cold plate, this drop-in unit keeps a ready supply of ice while instantly chilling up to ten beverage lines. Built to withstand the demands of commercial service, this ice solution offers a sleek and efficient way to maintain a steady flow of perfectly chilled drinks.
Key Features:
- The insulated basin is 10 inches deep and measures 30 inches long and 15 inches front-to-back, helping to preserve ice and hold up to 96 pounds.

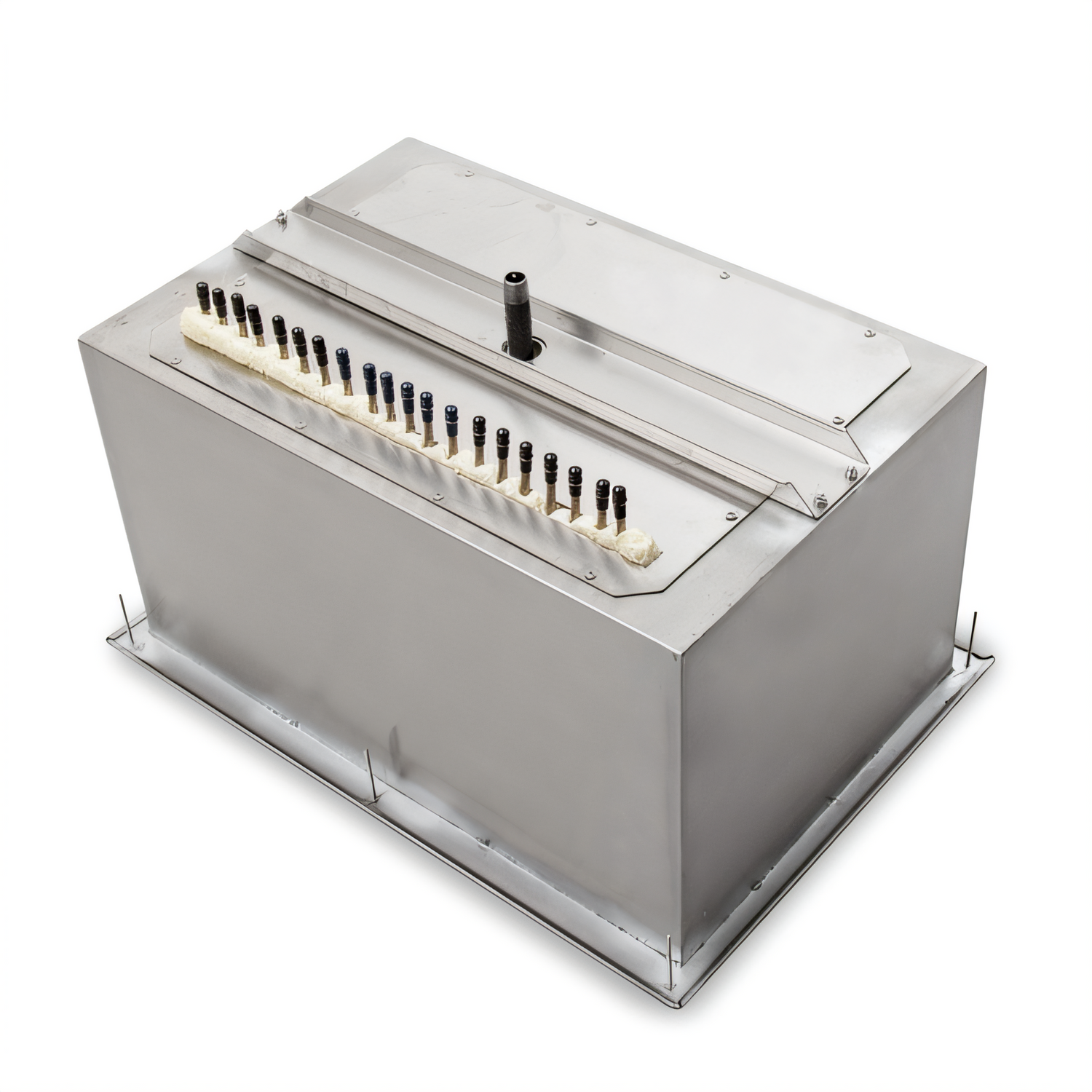

- The integrated 10-circuit cold plate has a ½-inch by 5-inch MPT nipple for quickly cooling soda or beer.
- The 14-gauge type 300 stainless steel deck has a ½-inch raised lip to contain spills.
- The 18-gauge type 300 stainless steel base is TIG-welded with polished exposed seams.
- The removable stainless steel sliding lid shields the ice from contaminants.
- A factory-installed drain allows for quick removal of meltwater.
- The unit is NSF listed for food-service safety and sanitation.
Perfect For:
- Busy cocktail bars and nightclubs that serve a lot of customers
- Restaurant soda or beer stations
- Concession stands and stadium suites
- Catering services and banquet lines
Product Specs
| Specification | Value |
|---|---|
| Model | PB-DIIB3420-CP10 |
| Overall dimensions (W × D × H) | 34" × 20" × 14-3/16" |
| Recommended cut-out | 33" × 19-1/8" |
| Internal bin size | 30" × 15" × 10" deep |
| Ice capacity | 96 lb |
| Cold plate | 10 circuits, ½" × 5" MPT outlet |
| Construction – deck | 14 ga 300-series stainless steel |
| Construction – base | 18 ga 300-series stainless steel |
| Net weight | 127 lb |
| Certifications | NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | John Boos |
| Height | 14.19in |
| Width | 34.0in |
| Depth | 20.0in |
| Shipping Weight | 126.2lbs |
| Type | with cold plate |
| Material | stainless steel |
| Cover | sliding cover |
| Specifications | Ice Bin, drop-in, 34"W x 20"D x 14-3/16"H overall size, 30"W x 15" front-to-back x 10" deep insulated ice bin, 10-circuit cold plate, removable sliding lid, drain, 14/300 stainless steel deck, 18/300 stainless steel base, 33"W x 19-1/8"D cutout recommended |
