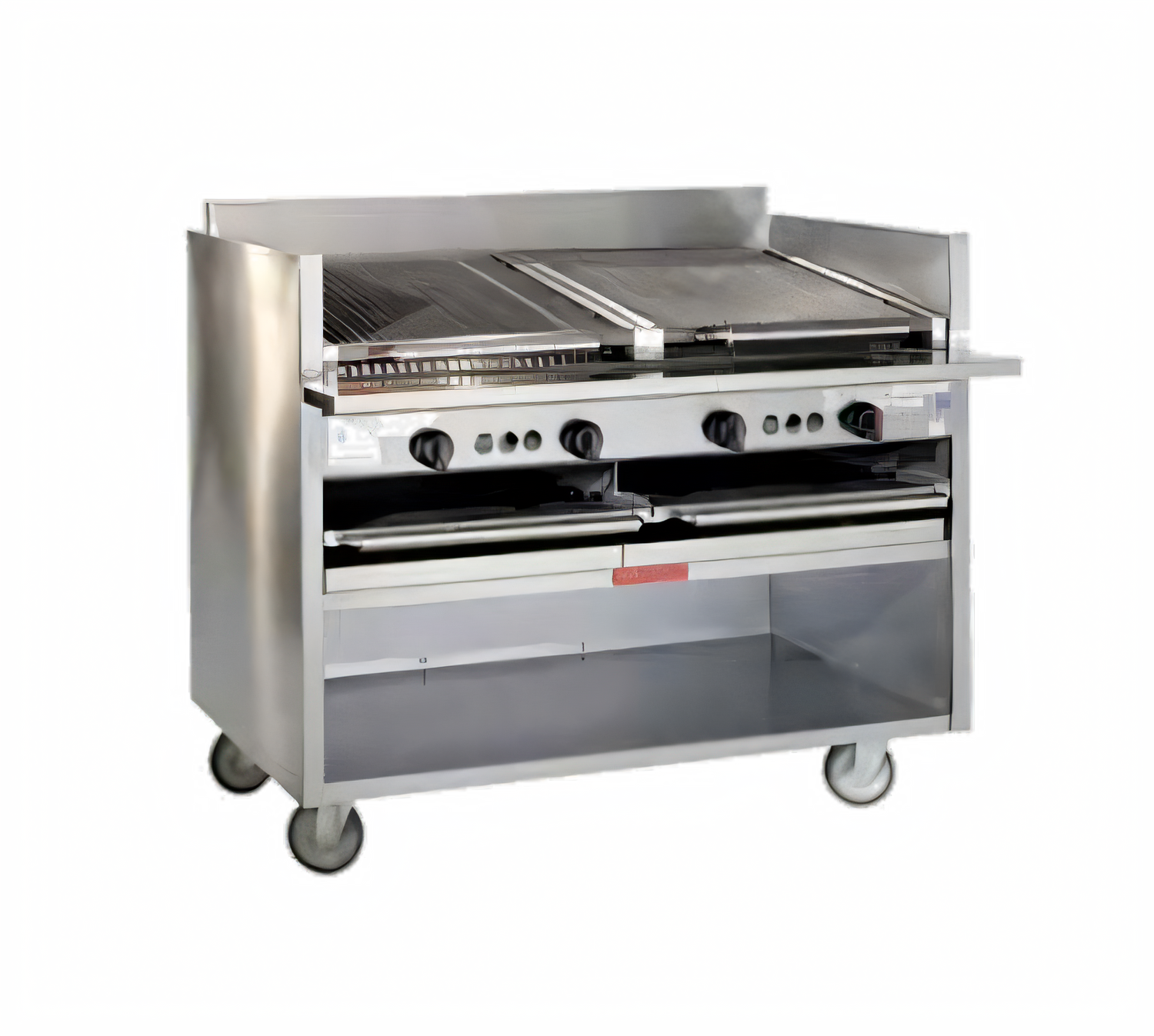

Magikitch'n (Middleby) FM-SMB-648 Gas Charbroilers
Product Description
The Magikitch'n FM-SMB-648 is a 48-inch commercial grill designed for high-volume kitchens. Its ceramic briquette heating system provides even, high-intensity heat that locks in authentic char flavor and maintains consistent temperature, even under heavy use. The rugged, free-floating grate prevents warping for reliable performance. An optional 200,000 BTU/hr upgrade is available for extra searing power.
Top features & benefits:
- Large 1,107 square inch cooking surface to handle steaks, chicken, burgers, and more in one pass.
- Ceramic briquettes that radiate intense, even heat while minimizing flare-ups.
- ½ inch round-rod free-floating grate that expands and contracts without stress and can be lifted out for easy cleaning.
- E-Z Tilt grate design that sends grease straight to the full-width front trough for a cleaner cooking area.
- 10 all-stainless burners with individual front-panel controls to create multiple heat zones.
- Standing pilot and runner-tube ignition that requires no electric connection.
- 6 inch stainless steel service shelf with a utility/towel bar to keep utensils and pans within reach.
- Water tubs that add humidity, help control grease, and speed up end-of-shift clean-up.
- Open cabinet base that offers convenient under-broiler storage.
- 6 inch adjustable stainless steel legs to level the unit on uneven floors.
What's included:
- A coal charbroiler, model FM-SMB-648, which can run on either natural gas or liquid propane.
- A standard-spacing round-rod top grate.
- Ceramic briquettes and screens that are factory-installed.
- A top-grid scraper.
- Removable water tubs.
- A gas regulator and a ½" NPT to ¾" adaptor.
- An owner's manual and a quick-start guide.
Why Magikitch'n?:
- Magikitch'n has over 80 years of experience in making charbroilers, and all their products are manufactured in the USA.
- The cabinets are fully welded and have a double-wall stainless steel construction, making them durable and suitable for high-volume, heavy-duty kitchens.
- Magikitch'n has a nationwide network of factory-authorized service agencies, so customers can easily get their equipment repaired or maintained.
Product Specs
| Specification | Value |
|---|---|
| Model | FM-SMB-648 (Ceramic Coal) |
| Overall dimensions | 48" W × 35 ½" D × 39 ½" H |
| Cooking area | 48" W × 23 ⅛" D (1,107 in²) |
| Heat output | 150,000 BTU/hr standard (200,000 BTU/hr high-output model available) |
| Burners | 10 stainless steel, individually controlled |
| Gas connection | Single ½" NPT; regulator included |
| Supply pressure | Natural 7–10" W.C. | LP 11–13" W.C. |
| Manifold pressure | Natural 4" W.C. | LP 10" W.C. |
| Shipping weight | ≈ 685 lb (311 kg) |
| Certifications | CSA Flame • CSA Star • NSF |
| Warranty | 2-year parts & labor limited warranty |
Features
| Specification | Value |
|---|---|
| Manufacturer | Magikitch'n (Middleby) |
| Certifications | NSF, CSA Star, CSA Flame |
| Height | 39.5in |
| Width | 48.0in |
| Depth | 35.5in |
| Shipping Weight | 685.0lbs |
| Grid | adjustable tilt round rod |
| Depth (front - back) | 27" |
| Heat | ceramic briquettes |
| Base | open cabinet base |
| Exterior Finish | all stainless steel exterior |
| Width (side - side) OA | 37 - 48" |
| Specifications | Coal Charbroiler, floor model, gas, 48"W x 35-1/2"D x 39-1/2"H overall size, free floating round rod top grate with EZ tilt to front grease trough, ceramic briquettes, standing pilot, 6" service shelf with utility bar, water tubs, open cabinet base, top grid scraper, 6" adjustable legs, CSA Flame, CSA Star, NSF |
