Description
Moffat E28D4 Turbofan Convection Ovens
Product Description
The Turbofan E28D4 is a compact, full-size countertop oven that delivers professional-grade baking results. At just 26 inches high, it fits four full-size sheet pans and features twin reversing fans for even heat distribution. The digital controls provide precise temperature and steam injection programming, while the porcelain-enameled baking chamber can handle high-volume commercial use. With 3-inch adjustable feet, this versatile oven brings bakery-quality performance to any countertop.
Key Features:
- Can hold 4 full-size (18 × 26 inch) sheet pans with 3-1/8 inch (80 mm) tray spacing.
- Has an intuitive digital panel with large 3/4 inch (20 mm) LED displays for time and temperature.
- Allows for manual or programmable operation, with the ability to store 20 recipes, each with 3 cooking stages and end-stage alarms.
- Offers five automatic steam levels plus a manual shot of steam for crusty breads and roasted proteins.
- Features twin 7-inch (180 mm) bi-directional stainless steel fans for rapid and even heat circulation.
- Includes an electronic thermostat with a temperature range of 150 – 500 °F (50 – 260 °C).
- Comes with 5.6 kW (220–240 V) / 5.0 kW (208 V) heating elements.
- Has a safe-touch vented drop-down door with twin-pane glass and a stay-cool handle.
- Includes a one-piece porcelain-enameled chamber with a halogen light for clear visibility.
- Features removable side racks, a hinge-out inner glass, and a plug-in door seal for tool-free cleaning.
- Stands on 3-inch (76 mm) anti-skid, height-adjustable stainless steel feet.
- Ships in 100% recyclable packaging.
What's in the Box:
- 4 chrome wire oven racks
- Removable and replaceable door seal
- 3-inch adjustable stainless steel feet (already installed)
Optional Accessories:

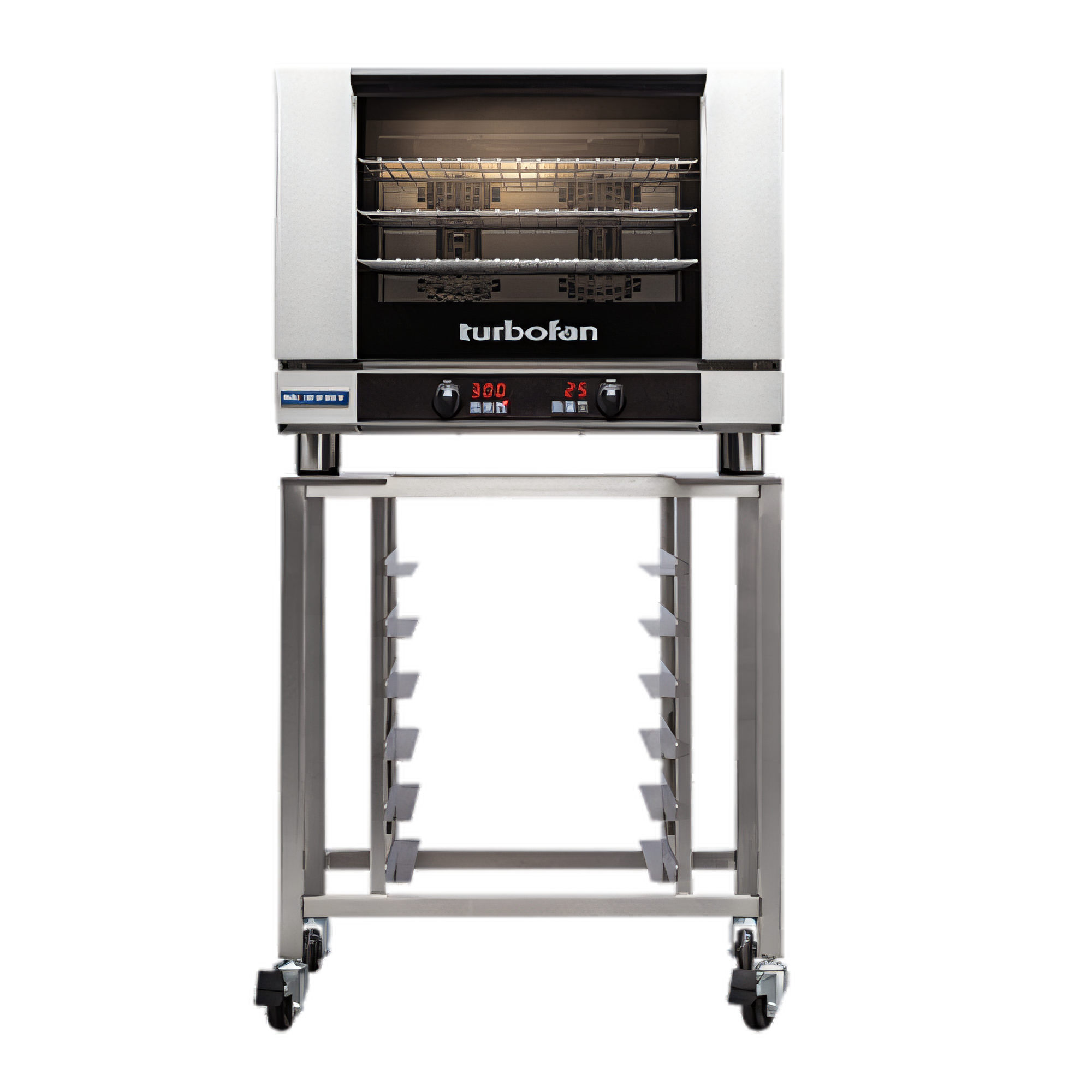

- Stainless steel oven stand with locking wheels, capable of holding up to 6 sheet pans (model SK2731U)
Product Specs
| Specification | Value |
|---|---|
| Model | Turbofan E28D4 |
| Capacity | 4 full-size sheet pans (18 × 26 in) |
| Tray Spacing | 3-1/8 in / 80 mm |
| Temperature Range | 150 – 500 °F / 50 – 260 °C |
| Programmability | 20 programs • 3 stages each • stage alarms |
| Steam Injection | 5 automatic levels + manual injection |
| Heating Power | 5.6 kW @ 220–240 V, 1-ph (25 A) 5.0 kW @ 208 V, 1-ph (25.8 A) |
| Exterior Dimensions* | W 31 7/8 in (810 mm) × D 30 in (762 mm) × H 26 in (662 mm) |
| Interior Volume | 4.1 ft³ / 0.116 m³ (W 27 in × H 14 in × D 18 ½ in) |
| Net Weight | 153 lb / 69.5 kg |
| Construction | Stainless steel exterior; porcelain-enameled chamber |
| Door | Vented drop-down, twin-pane glass, plug-in seal |
| Fans | Twin reversing 7 in stainless steel fans |
| Water Connection (optional) | ¾ in BSP; 20–80 psi |
| Minimum Clearances | 1 in (25 mm) sides & rear; 12 in (300 mm) from heat sources |
Features
| Specification | Value |
|---|---|
| Manufacturer | Moffat |
| Brand Name | Turbofan |
| Height | 26.0in |
| Width | 31.88in |
| Depth | 30.0in |
| Shipping Weight | 191.0lbs |
| Type | standard |
| Exterior Finish | all stainless steel exterior |
| Deck Qty | 1 deck |
| Base | legs |
| Size | full/standard size |
| Interior Finish | porcelain interior |
| Control Type | digital controls |
| Capacity per Compartment | 4 pan capacity, per compartment |
| Specifications | Turbofan® Convection Oven, electric, countertop, 26" assembled height, (4) full-size sheet pan capacity, 3-1/8" tray spacing, digital display time & temperature controls, electronic thermostat range 150 - 500° F, 20 programs, electronic timer, stainless steel front, sides and top exterior, pull-down twin pane glass door, porcelain interior, 3" adjustable stainless steel feet |
