Description

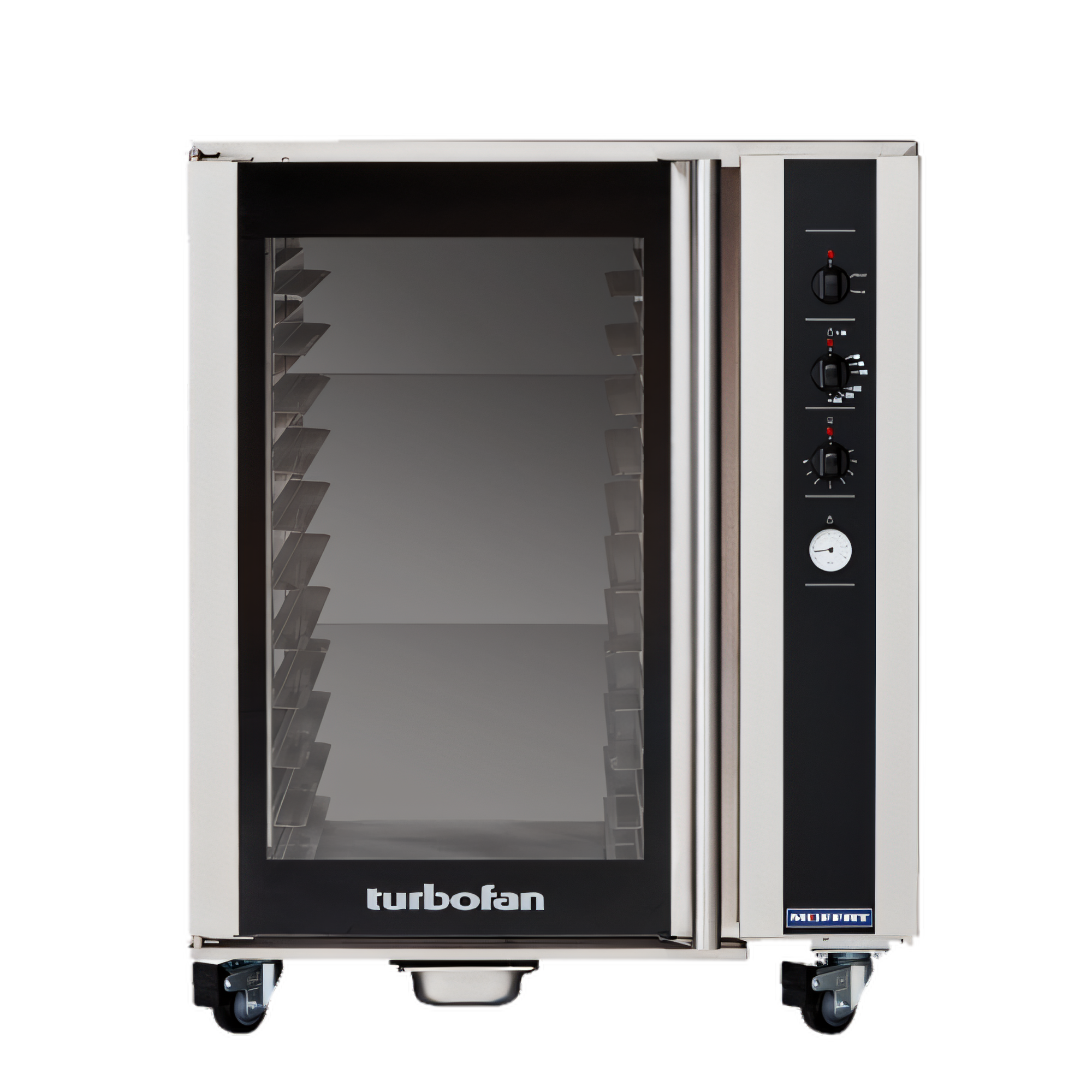

Moffat P85M12 Turbofan Proofing Cabinets
Product Description
The Turbofan P85M12 is a powerful cabinet that can accommodate up to 12 full-size sheet pans. Its dual-mode design gently circulates warm, humid air around the pans, ensuring consistent proofing and reliable hot holding in a compact, stainless-steel unit. For optimal performance, allow 1 inch (25 mm) of clearance on the sides and rear, and keep the cabinet at least 12 inches (300 mm) away from heat sources.
Key Features:
- The cabinet can switch between Proof and Hold modes with a simple dial.
- It can hold 12 full-size (18 × 26 in) or 24 half-size pans with 2-7/8 in (74 mm) tray spacing.
- The mechanical thermostat has a temperature range of 65–185 °F (20–85 °C).
- The adjustable humidity level and auto-fill water system can be enhanced with an optional 3M Cuno filter kit.
- The low-velocity circulation fan ensures even heat and moisture distribution.
- The full 304 stainless-steel interior and exterior, double-skin construction, and continuous door seal provide durability.
- The field-reversible, glass door with dual halogen cabinet lights allows for easy product monitoring.
- The four 3 in castors, with front dual-wheel swivel and rear rigid options, provide effortless mobility.
- The unit can be stacked or suited with Turbofan E35D / E35T convection ovens.
- The unit is cETLus and NSF-4 listed, and it is shipped in 100% recyclable packaging.
What's Included:
- The coffee maker comes with a factory-installed power cord that has a NEMA 5-20P plug, which is the standard plug type for electrical outlets in the United States.
- The coffee maker includes the necessary fittings to easily connect it to a water supply for automatic water filling.
- A comprehensive operator's manual is provided to guide you in using the coffee maker.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 12 full-size or 24 half-size sheet pans |
| Tray Spacing | 2-7/8 in (74 mm) |
| Temperature Range | 65–185 °F (20–85 °C) |
| Operating Modes | Off / Proof / Hold |
| Controls | Mechanical thermostat, humidity dial, cabinet thermometer |
| Construction | 304 stainless steel, double-skin; field-reversible glass door |
| Water System | Auto-fill, ¾ in GHT cold-water inlet (20–80 psi) |
| Air Movement | Low-velocity single-speed fan |
| Lighting | Dual halogen interior lamps |
| Mobility | (4) 3 in castors – front swivel/lock, rear rigid |
| Electrical | 110–120 V, 1-phase, 1.95 kW, 15.6 A, NEMA 5-20P cordset |
| Exterior (W × D × H) | 35-7/8 × 34-5/8 × 43-1/2 in (910 × 880 × 1110 mm, inc. castors) |
| Net Weight | 235 lb (107 kg) |
| Certifications | cETLus, NSF |
Features
| Specification | Value |
|---|---|
| Manufacturer | Moffat |
| Brand Name | Turbofan |
| Certifications | NSF, cETLus |
| Height | 44.5in |
| Width | 35.88in |
| Depth | 34.63in |
| Shipping Weight | 320.0lbs |
| Heater | side mounted heater |
| Exterior Finish | all stainless steel exterior |
| Sections | 1 section w/1 compartment |
| Doors | full height doors, glass |
| Half Size Sheet Pan Capacity | (24) 14" x 18" pans |
| Interior Finish | stainless steel interior |
| Slide Centers | fixed centers on 3" |
| Full Size Sheet Pan Capacity | (12) 18" x 26" pans |
| Specifications | Turbofan® Proofer/Holding Cabinet, capacity (12) full-size sheet pans, 2-7/8" tray spacing, mechanical thermostat 65-185°F, humidity level control, off/proof/hold mode selection, auto water fill, stainless steel interior & exterior with glass door, 3" casters (2 swivel with locks), cETLus, NSF |
