Description

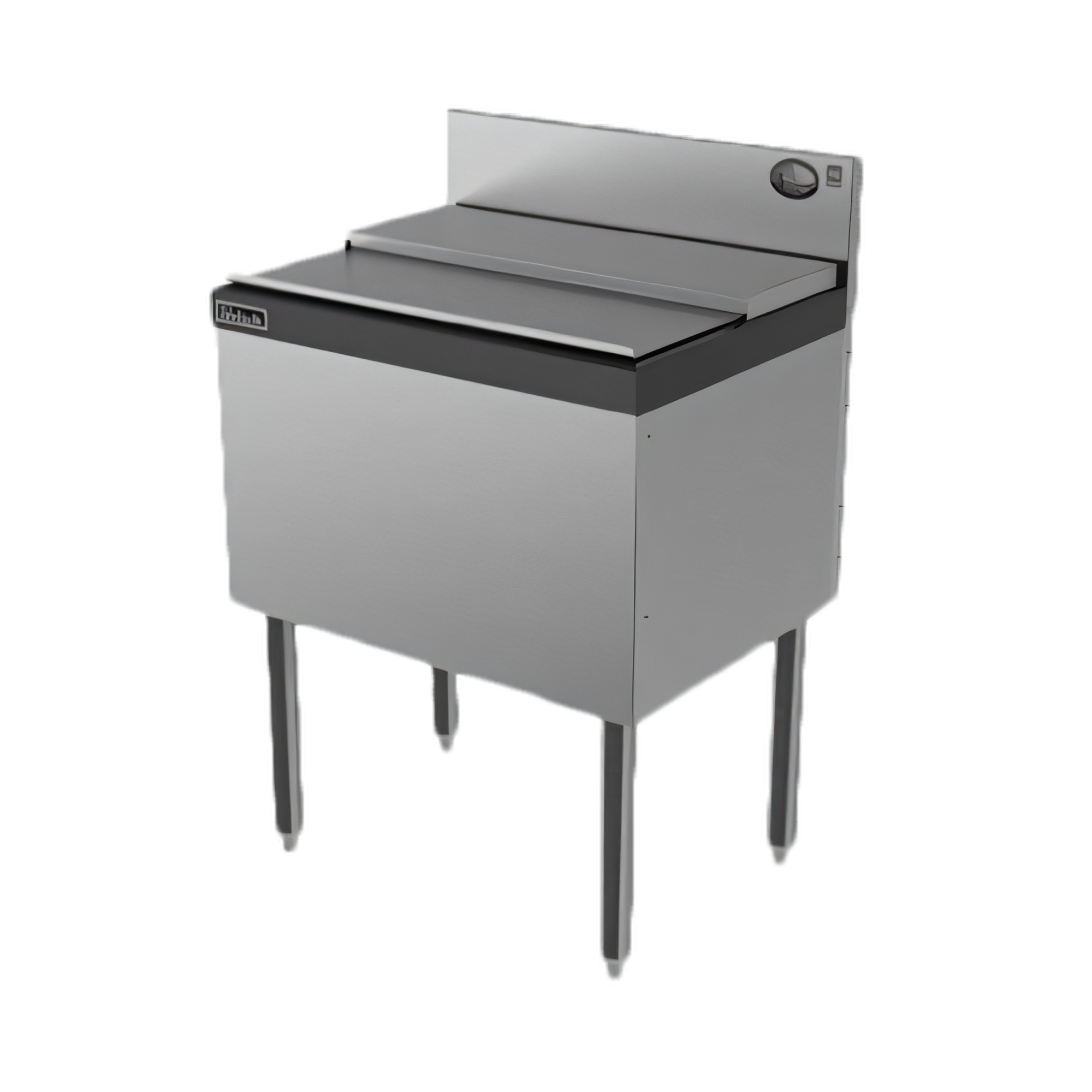

Perlick Corporation TSD24IC10 Top Shelf Bar Equipment
Product Description
The Perlick TSD24IC10 Top Shelf Ice Bin is a commercial-grade underbar ice bin and cocktail unit designed for busy bars. This 24-inch wide by 24-inch deep NSF-rated module features a 50-pound capacity stainless steel ice bin, a concealed 10-circuit aluminum cold plate, a 6-inch backsplash, an ABS top ledge, stainless steel front and sides, a galvanized back and bottom, a 1/2-inch NPS drain, and adjustable tubular stainless steel legs for easy installation. This durable and sanitary unit is ideal for high-volume cocktail service.
Features
| Specification | Value |
|---|---|
| Manufacturer | Perlick Corporation |
| Brand Name | Top Shelf |
| Certifications | NSF |
| Height | 36.5in |
| Width | 24.0in |
| Depth | 24.0in |
| Shipping Weight | 130.0lbs |
| Bin Depth | 10" deep ice bin |
| Construction | stainless steel & galvanized |
| Ice Capacity | 15 - 69 lbs. |
| Width (side - side) OA | 19" - 24" |
| Cold Plate | (10) circuit |
| Depth (front - back) OA | 24" - 27" |
| Splash | 6" |
| Specifications | TSD Series Underbar Ice Bin/Cocktail Unit, modular with cold plate, 24"W x 24"D, approximately 50-lb. ice capacity, 10-circuit aluminum cold plate concealed under bin liner, 6"H backsplash with 1" return at top, ABS plastic top ledge, 10-3/4" deep stainless steel ice bin, stainless steel front & sides, galvanized steel back & bottom, 1/2" NPS male drain, 1-5/8" tubular stainless steel legs with 1" adjustable thermoplastic feet, NSF |
Documents
CAD Files
Certifications
Purchase Notice
Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
