Description

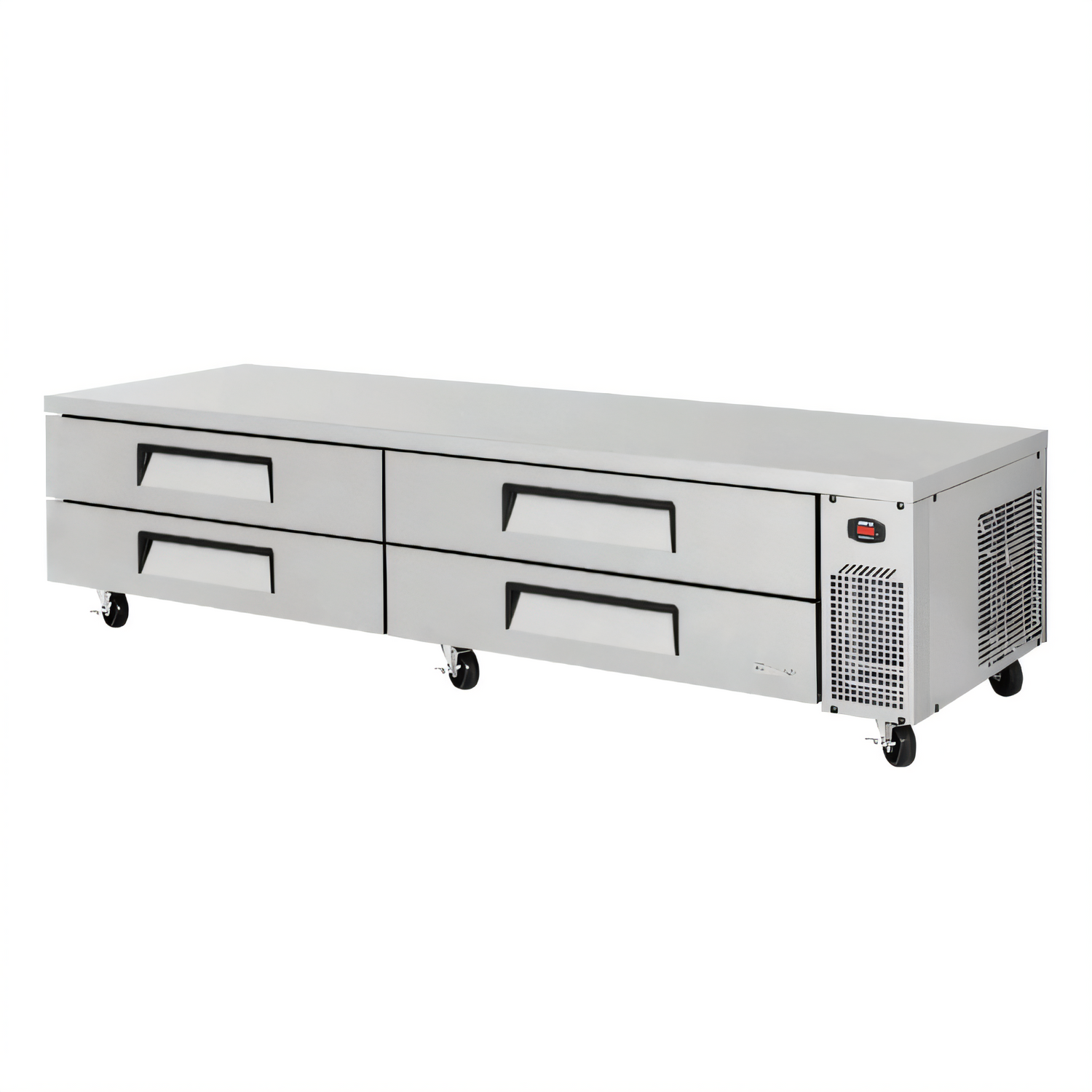

Turbo Air TCBE-96SDR-N Super Deluxe Undercounter & Worktop Refrigeration
Product Description
Model TCBE-96SDR-N | 4-Drawer Side-Mounted Self-Contained Unit
Maximize your kitchen efficiency with the Turbo Air Super Deluxe chef base. It provides 18.6 cu. ft. of chilled storage space right beneath your countertop equipment, up to 1,435 lbs. This rugged, low-maintenance refrigeration solution features a patented self-cleaning condenser and a heavy-duty 16-gauge stainless steel top, ensuring reliable performance shift after shift.
Key Features:
- The unit has a patented self-cleaning condenser that sweeps away dust daily, helping to prevent costly downtime.
- It has 4 durable drawers with recessed handles, each capable of holding three 6-inch deep full-size pans (pans not included).
- The reinforced 16-gauge one-piece stainless steel top is insulated to block heat migration and can support heavy equipment.
- It uses eco-friendly R-290 refrigerant and a high-efficiency 2/5 HP side-mounted compressor with a front air intake.
- The digital temperature control maintains an optimum food storage temperature between 33°F and 38°F for safety.
- The high-density, CFC-free polyurethane insulation and anti-corrosion coated evaporator help prolong the cabinet's lifespan.
- It comes standard with 4-inch swivel casters (with locking front casters), and 6-inch stainless steel legs are available as an optional upgrade.
Product Specs
| Specification | Value |
|---|---|
| Exterior dimensions | 96 3⁄8" W × 32" D × 20 1⁄4" H* |
| Net capacity | 18.6 cu. ft. |
| Drawers / pan capacity | 4 drawers | 3 full-size pans per drawer (6" deep) |
| Temperature range | 33 °F – 38 °F |
| Countertop load rating | 1,435 lb |
| Refrigerant | R-290 (hydrocarbon) |
| Compressor horsepower | 2/5 HP, side-mounted |
| Voltage / phase | 115 V / 60 Hz / 1-ph |
| Amperage | 6.3 A |
| Plug | NEMA 5-15P, 9 ft cord |
| Net / ship weight | 484 lb / 517 lb |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 5 yr parts & labour | 7 yr compressor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Turbo Air |
| Brand Name | Super Deluxe |
| Certifications | cETLus, ETL-Sanitation |
| Height | 25.25in |
| Width | 85" - 96" wide |
| Depth | 32.0in |
| Shipping Weight | 517.0lbs |
| Drawer Qty | 4 drawers |
| Top Finish | stainless steel top |
| Refrigeration | self-contained, side mounted |
| Compressor HP | 3/8 HP |
| Exterior Finish | all stainless steel exterior |
| Specifications | Super Deluxe Chef Base Refrigerator, 96-3/8"W x 32"D x 20-1/4"H, 18.6 cu. ft. side mounted self-contained refrigeration system, self-cleaning condenser device, (4) durable drawers with recessed handles, accommodates pans up to 6" deep, capacity: (3) full size pans per drawer (NOT included) 16 ga. stainless steel one-piece reinforced insulated top, stainless steel front & sides, digital temperature display, R290 Hydrocarbon refrigerant, 2/5 HP, 115v/60/1-ph, 6.3 amps, NEMA 5-15P, cETLus, ETL-Sanitation |
Purchase Notice
Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
