Description

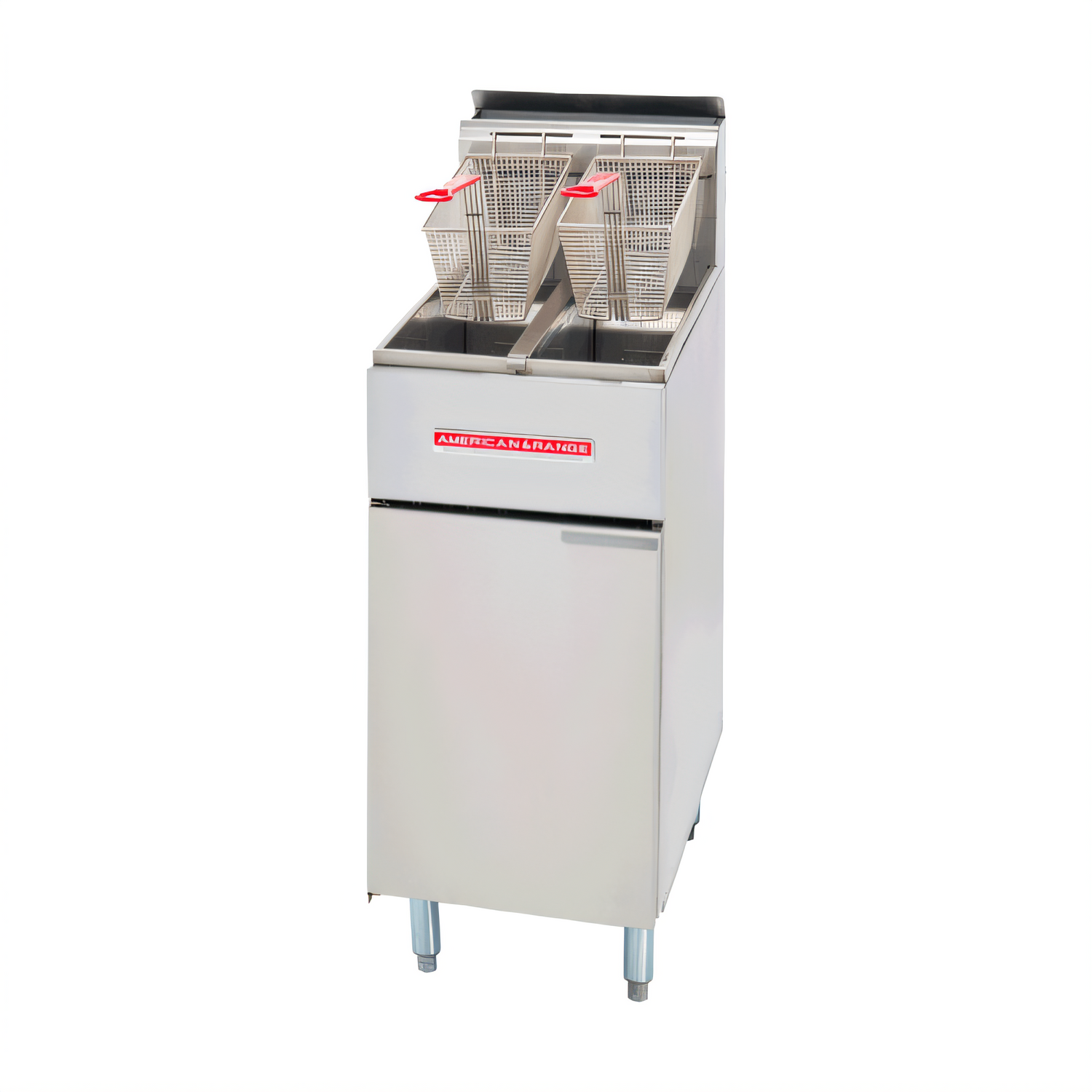

American Range AF-25/25 Gas Fryers
Product Description
The American Range AF-25/25 is a compact, high-capacity frying solution for commercial kitchens. Measuring just 15-1/2" wide, this unit packs two independent 25-lb tube-style fry pots that deliver a combined 160,000 BTU output. This design allows for faster cooking times and the ability to fry different menu items simultaneously, preserving distinct flavors. Manufactured in the USA, the AF-25/25 is built to withstand the demands of a busy professional kitchen. For details on the warranty and coverage, please contact the company.
Performance & Construction:
- The fryer has a total output of 160,000 BTU (47 kW) from two 80,000 BTU burners, which heat the oil quickly and recover quickly during peak usage periods.
- The millivolt pilot system has a 100% safety shut-off, so no external power is required.
- The thermostatic control allows for a temperature range from 200°F to 400°F (93°C to 204°C), ensuring consistent and crispy frying results.
- The tube-style heat exchangers provide even heating, reducing oil absorption for better-tasting food.
- The two separate full-port 1-1/4" drain valves speed up the filtering process and help prevent flavor transfer between batches.
- The unit has an all-stainless front and sides with 6" chrome-plated adjustable legs (casters are optional).
- Each tank has an 8-3/4" x 14" frying area and includes two rugged wire fry baskets.
Why Choose a Twin-Tank Fryer?:
- With two separate tanks, you can use different types of oil or cook different menu items at the same time. This is great for separating allergens, proteins, or flavors.
- You can prepare food in one tank while finishing it in the other, making it easier to handle busy periods.
- If one tank needs to be cleaned or the oil needs to be filtered, you can still use the other tank to keep cooking, providing you with a backup.
Popular Options (sold separately):
- Stainless steel tank covers protect the fryer tanks.
- 4-inch locking casters on the front and rear provide mobility and stability.
- Stainless steel splash guards (available for the left side, right side, or both) help contain oil splatter.
- Joiner strip seals the gap between twin fryers or a fryer and a dump station.
- Heat lamp with a 120V cord set (1 amp) provides warmth for keeping food at the desired temperature.
Product Specs
| Specification | Value |
|---|---|
| Model | AF-25/25 |
| Total Oil Capacity | 25 lb + 25 lb (11.3 kg each) |
| Cooking Area (per tank) | 8-3/4" × 14" (222 mm × 356 mm) |
| Cabinet Width | 15-1/2" (394 mm) |
| Depth | 30-1/4" (768 mm) |
| Height (to flue) | 45-3/4" (1,162 mm) |
| Gas Input | 160,000 BTU/hr (47 kW) |
| Manifold Pressure | Natural Gas 5.0" W.C. / Propane 10.0" W.C. |
| Gas Connection | 3/4" NPT, rear |
| Shipping Weight | 198 lb (90 kg) |
| Certifications | cETLus, ETL-Sanitation, NSF compliant |
| Country of Origin | Designed & Built in the USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | American Range |
| Height | 45.75in |
| Width | 15.5in |
| Depth | 30.5in |
| Shipping Weight | 240.0lbs |
| Type | Restaurant |
| Filter | no filter |
| Controls | thermostatic controls |
| Fry pot | stainless steel |
| With or without basket lifts | without basket(s) |
| Exterior Finish | all stainless steel exterior |
| Fat Capacity (approximate) | 25 lbs each |
| Specifications | Fryer floor model, gas, (2) half size, 25/25 lb. fat capacity, (2) baskets, thermostat control, millivolt pilot system, stainless construction, 6" chrome plated adjustable legs, 47.0kW, 160,000 BTU, cETLus, ETL-Sanitation, Made in USA |
