Description

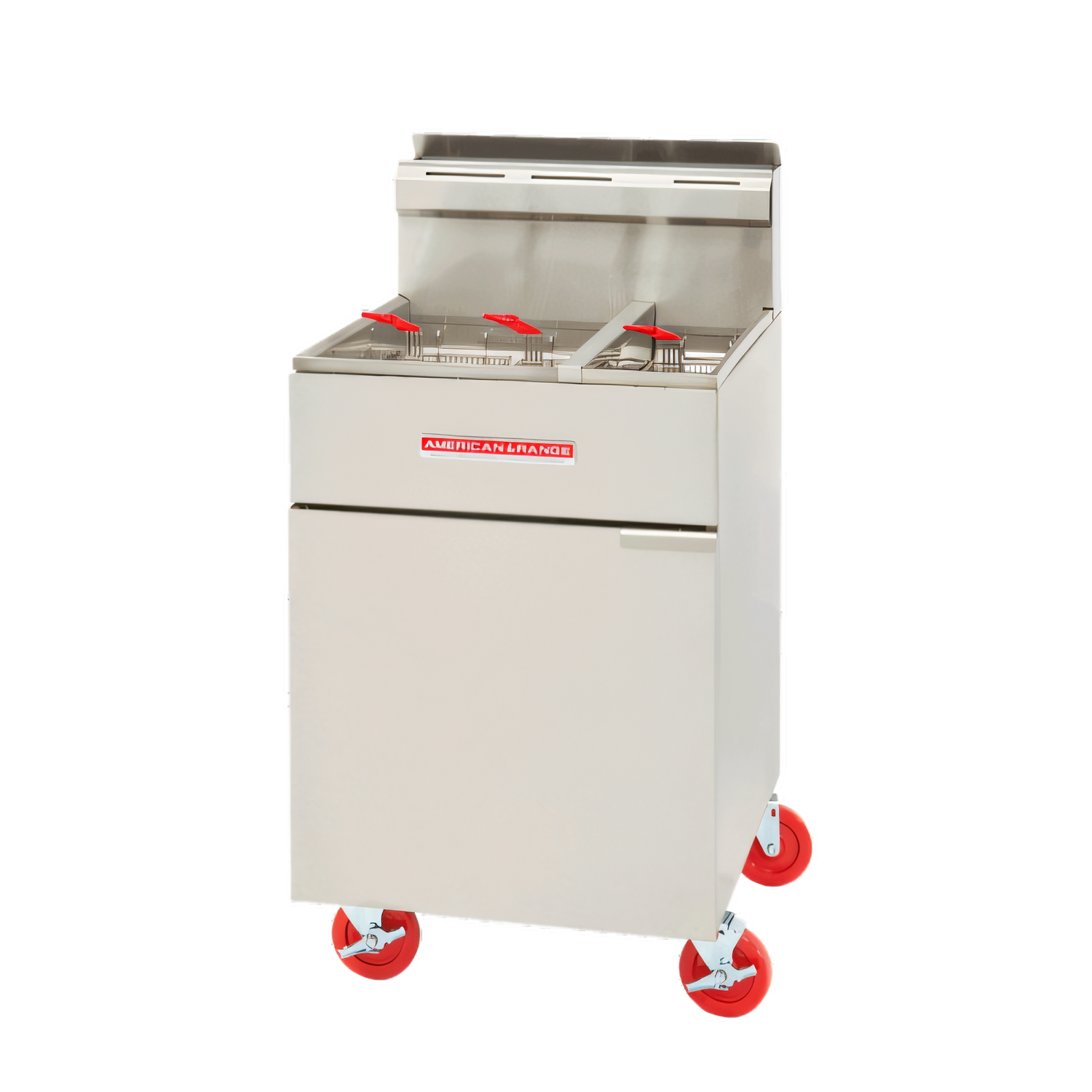

American Range AF-50/25 Gas Fryers
Product Description
The American Range AF-50/25 fryer provides the efficiency of two fryers in a single, durable stainless-steel unit. With a 50-pound vat and a 25-pound companion tank, this high-powered appliance delivers 200,000 BTUs, allowing you to quickly prepare menu items and maximize your kitchen's productivity. The fryer accommodates both natural and LP gas, giving you the flexibility to adapt to your facility's infrastructure.
Key Performance Features:
- The unit has two separate stainless steel tanks, one that can hold up to 50 lbs and one that can hold up to 25 lbs, allowing you to cook different menu items simultaneously and manage flavors.
- The five tube burners, with three large and two small, can deliver a total of 200,000 BTUs, providing powerful and precise heat.
- The millivolt control system with a 100% safety shut-off feature allows the fryer to operate without the need for an electrical connection.
- The snap-action thermostat maintains the oil temperature between 200°F and 400°F (93°C and 204°C), ensuring consistent and accurate temperature control.
- The special alloy diffusers in each burner tube maximize heat transfer and extend the life of the cooking oil.
- The 1-1/4" full-port drain valve with a clean-out rod allows for fast and clog-free draining of the fryer.
- The all-stainless steel front and sides are built to withstand the rigors of a commercial kitchen environment.
- The fryer is made in the USA and is ETL listed for both gas and sanitation requirements.
What's Included:
- The package includes a floor model AF-50/25 fryer, which can be configured for natural gas or liquid propane fuel.
- You'll receive three nickel-plated fry baskets with stay-cool, plastic-coated handles.
- The fryer has 6-inch adjustable stainless steel legs.
- An owner's manual and warranty registration are also provided.
Popular Options (sold separately):
- The four-caster kit includes two locking casters on the front, allowing you to easily move the fryer while keeping it secure in place.
- The stainless steel tank covers protect the interior of the fryer and enhance its appearance.
- The stainless steel splash guard helps contain any oil splatter during the frying process.
- The quick-disconnect and flexible gas hose makes it easy to connect and disconnect the fryer from the gas supply.
- The joiner strip allows you to connect multiple fryers or dump stations together, creating a cohesive and integrated setup.
Product Specs
| Specification | Value |
|---|---|
| Model | AF-50/25 |
| Oil Capacity | 50 lb & 25 lb (dual tanks) |
| Cooking Area | 14" × 14" (large) • 8-3/4" × 14" (small) |
| Burners | 5 tube burners (3 + 2) |
| Total Input | 200,000 BTU/hr (59 kW) |
| Thermostat Range | 200 °F – 400 °F |
| Exterior Dimensions | 23-1/4" W × 30-1/4" D × 45-3/4" H (591 × 768 × 1162 mm) |
| Gas Connection | 3/4" NPT rear manifold |
| Manifold Pressure | Natural 5.0" W.C. • LP 10.0" W.C. |
| Shipping Weight | 225 lb (102 kg) |
| Certifications | ETL, ETL-Sanitation, Made in USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | American Range |
| Certifications | ETL, Made in USA |
| Height | 45.75in |
| Width | 22.75in |
| Depth | 30.5in |
| Shipping Weight | 225.0lbs |
| Fry pot | stainless steel |
| Controls | millivolt controls |
| Exterior Finish | all stainless steel exterior |
| Fryer Quantity | (2) tanks |
| With or without basket lifts | without basket(s) |
| Filter | no filter |
| Fat Capacity (approximate) | (1) 25 & (1) 50 lb |
| Specifications | Floor model fryer, All stainless steel front and sides, with heavy gauge stainless steel tanks and rated at 40,000BTU/hr. AF-50 fryer tube fryer equipped with 3 burners and a AF-25 fryers equipped with two burners. Unit has one 50 pound capacity tank and one 25 pound capacity tank. Includes three fry baskets with plastic coated handles. Standard Millivolt control system with100% safety shut off and Thermostatic control with a temperature range of 200°F to 400°F. 1-1/4" full port drain valve for easy cleaning. 6" adjustable chrome plated legs, ETL certified. Made in the USA |
