Description

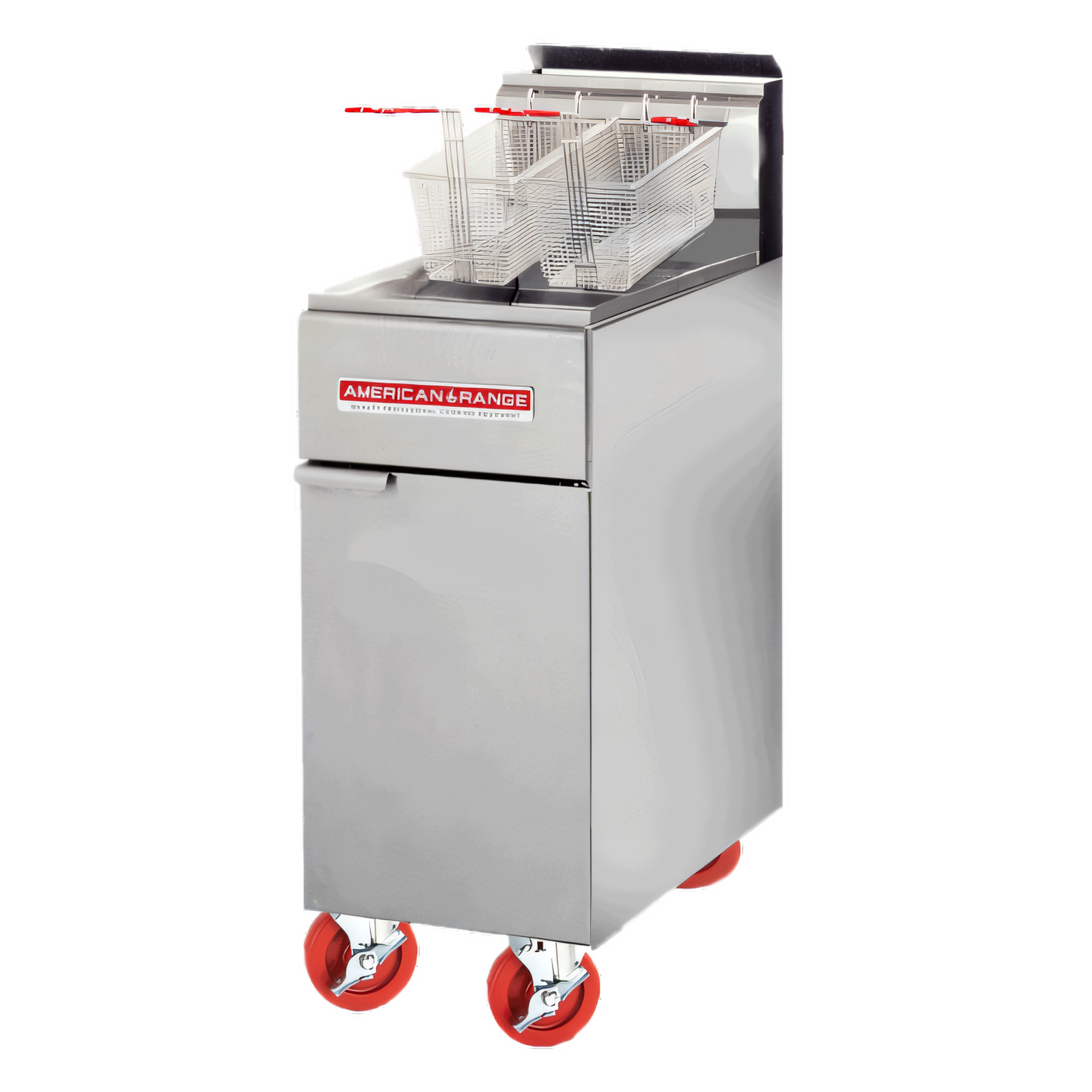

American Range AF-50HE Gas Fryers
Product Description
The American Range AF-50HE is an ENERGY STAR® certified commercial fryer built for high-volume use. Delivering 75,000 BTU/hr of cooking power, it uses up to 35% less gas than standard models. Crafted with a seamless 304 stainless-steel tank and tool-free clean-out features, this durable fryer is made in the USA with quality U.S. workmanship. For details on the warranty and coverage, please contact the manufacturer.
Key Benefits:
- Can handle high-volume orders with ease thanks to its 50 lb (25 L) oil capacity.
- ENERGY STAR® qualified, which means lower utility bills and a faster return on investment.
- Features a triple-tube heat exchanger with an alloy diffuser that maximizes heat transfer and recovery.
- Millivolt control requires no external electricity and offers 100% safety shut-off.
- Snap-action thermostat maintains a temperature range of 200 °F–400 °F (93 °C–204 °C) for perfect, repeatable results.
- 1-1/4" full-port drain valve and removable crumb screen speed up end-of-shift clean-up.
- Heavy-gauge stainless steel front and sides can be wiped clean in seconds.
- Comes with 4" adjustable legs as standard, and optional locking swivel casters are available.
What's Included:
- Two nickel-plated fry baskets with plastic-coated handles for easy handling.
- Removable stainless-steel crumb screen to catch and remove food particles.
- Detailed operator's manual and quick-start guide to help you get started.
Product Specs
| Specification | Value |
|---|---|
| Model | AF-50HE |
| Oil Capacity | 50 lb / 25 L (approx.) |
| Heat Output | 75,000 BTU/hr (22 kW) |
| Energy Rating | ENERGY STAR® certified |
| Gas Connection | 3/4″ NPT – Natural or LP (specify at order) |
| Thermostat Range | 200 °F – 400 °F (93 °C – 204 °C) |
| Control Type | Millivolt mechanical; no electrical hookup required |
| Tank Construction | 304 stainless steel, seamless TIG welds |
| Overall Dimensions | 15 1/2″ W × 30 1/2″ D × 45 3/4″ H (394 × 788 × 1162 mm) |
| Cooking Area | 14″ × 14″ (356 × 356 mm) |
| Shipping Weight | 150 lb (68 kg) |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
| Origin | Designed & built in the USA |
Features
| Specification | Value |
|---|---|
| Manufacturer | American Range |
| Certifications | cETLus, ETL-Sanitation, Made in USA, ENERGY STAR |
| Height | 45.75in |
| Width | 15.5in |
| Depth | 30.5in |
| Shipping Weight | 150.0lbs |
| Filter | no filter |
| Exterior Finish | all stainless steel exterior |
| Basket Lifts | without basket lifts |
| Controls | millivolt controls |
| Fry pot | stainless steel fry pot |
| Energy Efficiency | ENERGY STAR® |
| Fat Capacity (approximate) | 50 lb |
| Specifications | High efficiency gas fryer, floor model, 50 lb. capacity fryers, 304 stainless steel TIG welded tank, thermostat control, millivolt pilot system, (2) baskets, removable crumb screen, stainless construction, 6" adjustable chrome plated legs, 22.0kW, 75,000 BTU, cETLus, ETL-Sanitation, Made in USA, ENERGY STAR |
