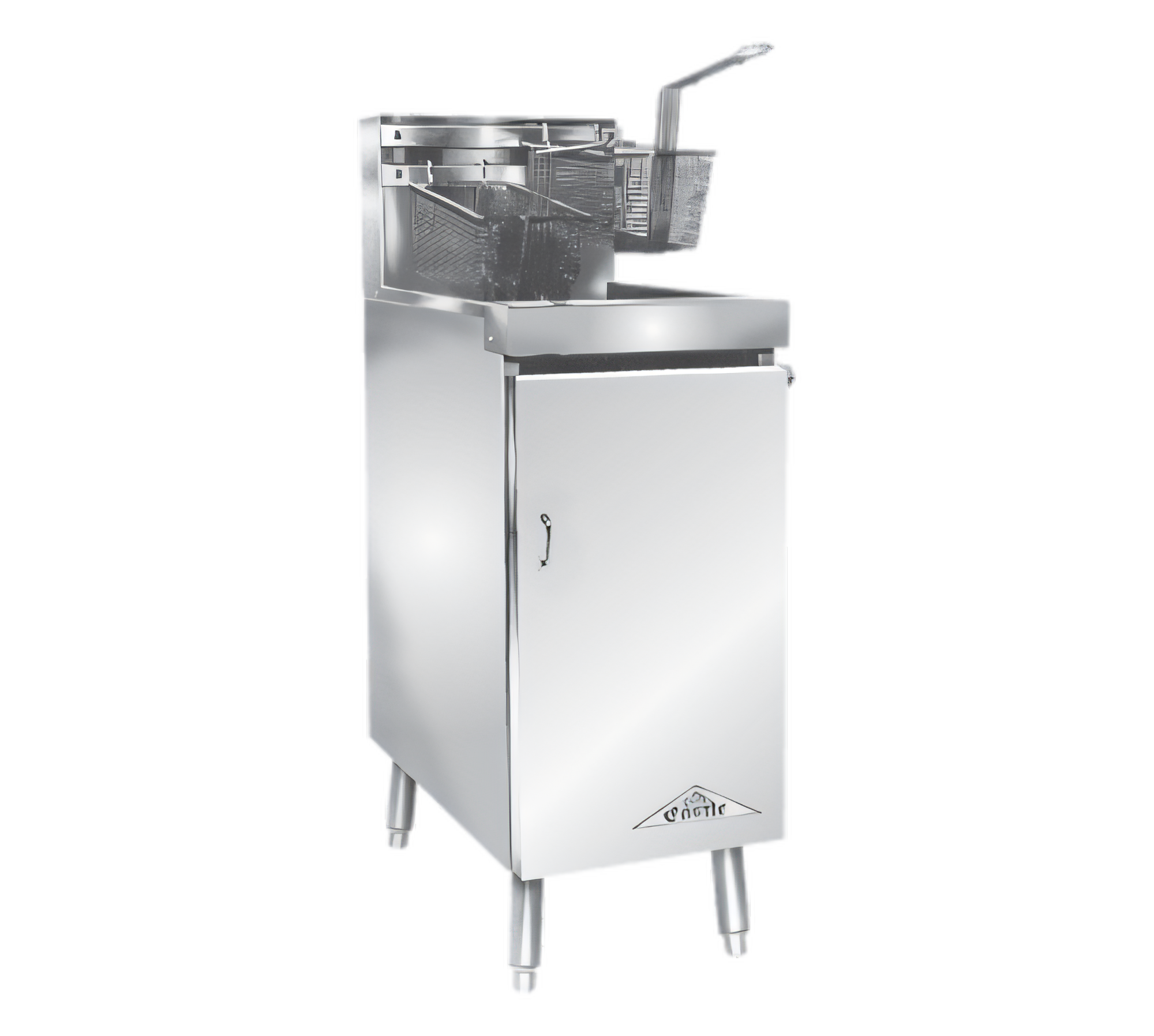

Comstock-Castle 14HF Castle Series Gas Fryers
Product Description
The Castle Series 14HF tube-type fryer is a heavy-duty, commercial-grade appliance designed for the demands of busy kitchens. With a compact 15-inch footprint, it boasts a powerful 90,000 BTU stainless-steel tube burner system that provides rapid heat recovery and consistent temperature control. The deep cold zone and tube radiant inserts help preserve oil quality for extended fry life and enhanced food flavor. Certified by NSF, this durable fryer is built to withstand the relentless pace of high-volume operations.
Key Features:
- Holds up to 40 lbs (around 5 gallons) of oil, perfect for frying French fries, chicken, seafood, and more.
- Features three stainless-steel tube burners with radiant inserts to provide maximum heat transfer.
- Snap-action thermostat with 100% safety shut-off and high-limit protection for safety.
- Automatic standing pilot for instant start-up.
- Stainless-steel fry tank, front, sides, and door, with a welded aluminized inner frame for durability.
- 6-inch adjustable stainless-steel legs for easy leveling on any surface.
- 1-inch gate valve drain for fast and mess-free oil removal.
- Includes two heavy-duty, nickel-plated frying baskets and a removable basket hanger.
- NSF listed, meeting commercial sanitation standards.
What's Included:
- Two nickel-plated fry baskets with coated handles for easy and comfortable use.
- A removable basket hanger rack for convenient storage and organization.
- A 1-inch drain valve with an extension pipe to make draining the fryer quick and easy.
- An installation and operation manual to guide you through setting up and using the fryer.
Product Specs
| Specification | Value |
|---|---|
| Model | 14HF |
| Oil Capacity | 40 lb / 5 gal (19 L) |
| Overall Width | 15 in (38.1 cm) |
| Overall Depth | 26 in (66 cm) |
| Overall Height | 43.5 in (110.5 cm) with 6" legs |
| Tank Interior (WxLxH) | 14 in × 18 in × 8 in |
| Burners / Type | 3 stainless-steel tubes |
| Total Input | 90,000 BTU/hr |
| Gas Type | Natural 4" WC / Propane 10" WC (field convertible) |
| Gas Connection | ¾" NPT (rear manifold) |
| Clearances | Non-combustible: 2" sides, 6" rear • Combustible: 6" sides & rear |
| Shipping Weight | ≈170 lb (78 kg) |
| Certifications | NSF |
| Warranty | 1 year parts & labor (see warranty terms) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Comstock-Castle |
| Brand Name | Castle Series |
| Certifications | NSF |
| Height | 43.5in |
| Width | 15.0in |
| Depth | 26.0in |
| Shipping Weight | 170.0lbs |
| Fry pot | stainless steel fry pot |
| Exterior Finish | all stainless steel exterior |
| Type | restaurant |
| Controls | thermostatic controls |
| Filter | no filter |
| Fat Capacity (approximate) | 40 lb |
| Basket Lifts | without basket lifts |
| Specifications | Castle Series Fryer, Floor Model, Gas, 15" wide, 40 lb. fat capacity, tube type, snap action thermostat, standing pilot, stainless steel fry tank, stainless steel exterior, 6" stainless steel legs, ¾" rear gas connection, 90,000 BTU, NSF |
