Description

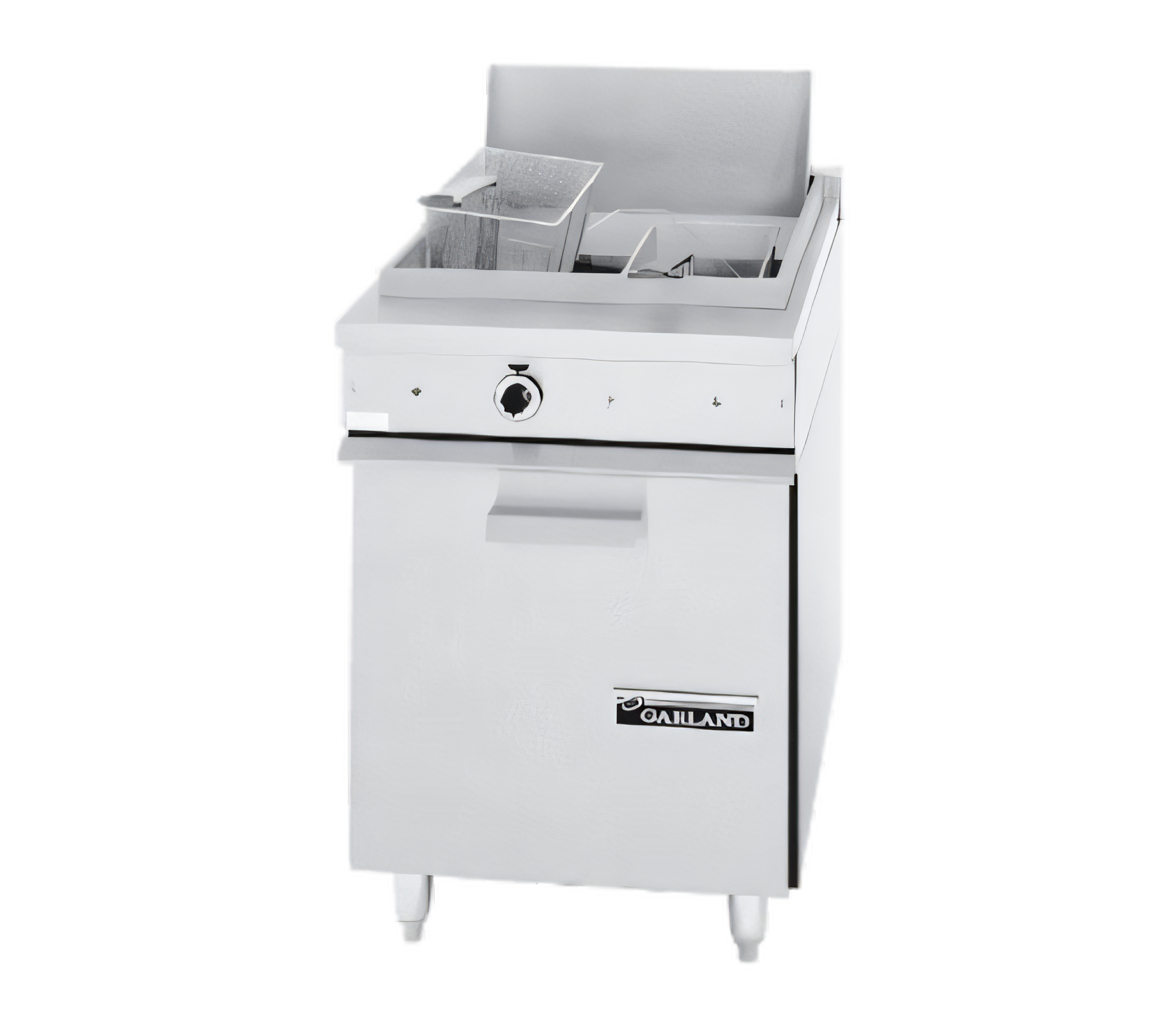

Garland 36ES21 36E Series Electric Fryers
Product Description
The Model 36ES21 20 kW Range-Match Fryer is designed to seamlessly integrate with Garland 36E heavy-duty ranges. Packing 20 kW of electric power into a compact 24-inch footprint, this fryer can handle everything from crispy appetizers to high-volume entrees. The 70-pound nickel-plated steel frypot allows it to keep up with the demands of the busiest commercial kitchens, without the open flames or ventilation issues associated with gas fryers.
Key performance benefits:
- The all-electric design uses four Inconel immersion elements to quickly heat the oil and recover temperature between batches.
- The electromechanical thermostat maintains the oil temperature between 200 °F – 375 °F (93 °C – 190 °C) with precise accuracy, ensuring consistent cooking results.
- The continuously welded, nickel-plated 10-gauge steel tank is hardened to withstand heavy use and resist warping and corrosion.
- The 1-inch bottom drain speeds up the oil filtering process, and the lift-up element assembly can be locked safely out of the way for a cleaner operation.
- The built-in cabinet provides convenient storage space for filters, baskets, and seasoning, keeping them within easy reach.
Standard features:
- The frypot has a 70 lb (31 kg) shortening capacity.
- The total heat is 20 kW (electric).
- The immersion elements can be lifted up and have a safety lock.
- The thermostat is electromechanical and can be set between 200 °F and 375 °F.
- A chrome wire basket is included.
- The front and sides are made of stainless steel, with a 3" vent riser and front rail.
- The 6" (152 mm) legs are adjustable and chrome-plated.
- The 1" (25 mm) drain valve is located at the bottom.
- The unit has a storage cabinet with a hinged door.
- The appliance is CSA and NSF certified for commercial use.
Popular options & accessories:
- The main back panel is made of durable stainless steel.
- The tank cover is also made of stainless steel.
- An extra fry tank is available, with or without a 1-inch drain valve.
- You can choose between a twin basket set or a large single basket.
- The unit has 6-inch adjustable stainless steel legs.
- The swivel casters are non-marking and have front brakes.
- Marine-grade hand rails and deck fasteners are available.
- The unit can be configured for high-voltage 460V power.
Product Specs
| Specification | Value |
|---|---|
| Overall width | 24" (610 mm) |
| Overall depth | 30" (762 mm) |
| Overall height | 37-1/2" (953 mm) to cook surface + 3" vent riser |
| Shortening capacity | 70 lb / 31 kg |
| Heat input | 20 kW (electric) |
| Available voltages | 208, 240 or 460 VAC | 1- or 3-phase (specify when ordering) |
| Nominal amps (208 V 3 Ø) | 54 A per line |
| Drain valve size | 1" (25 mm) NPT, bottom mounted |
| Shipping weight | 270 lb / 122 kg | 34 cu ft |
Features
| Specification | Value |
|---|---|
| Manufacturer | Garland |
| Brand Name | 36E Series |
| Certifications | NSF, CSA |
| Height | 37.38in |
| Width | 24.0in |
| Depth | 36.0in |
| Shipping Weight | 270.0lbs |
| Controls | thermostatic controls |
| Fat Capacity (approximate) | 70 lb |
| Fry pot | steel |
| Exterior Finish | stainless steel front & sides |
| Type | Heavy duty, range match |
| With or without basket lifts | without basket(s) |
| Specifications | 36E Series Heavy Duty Fryer, electric, 24" W, 70 lb. fat capacity, steel nickel finish frypot, lift-up elements with safety lock, thermostatic control, front rail and 3" vent riser, stainless steel front and sides, 6" legs, 20kW, CSA, NSF (Garland) |
