Description

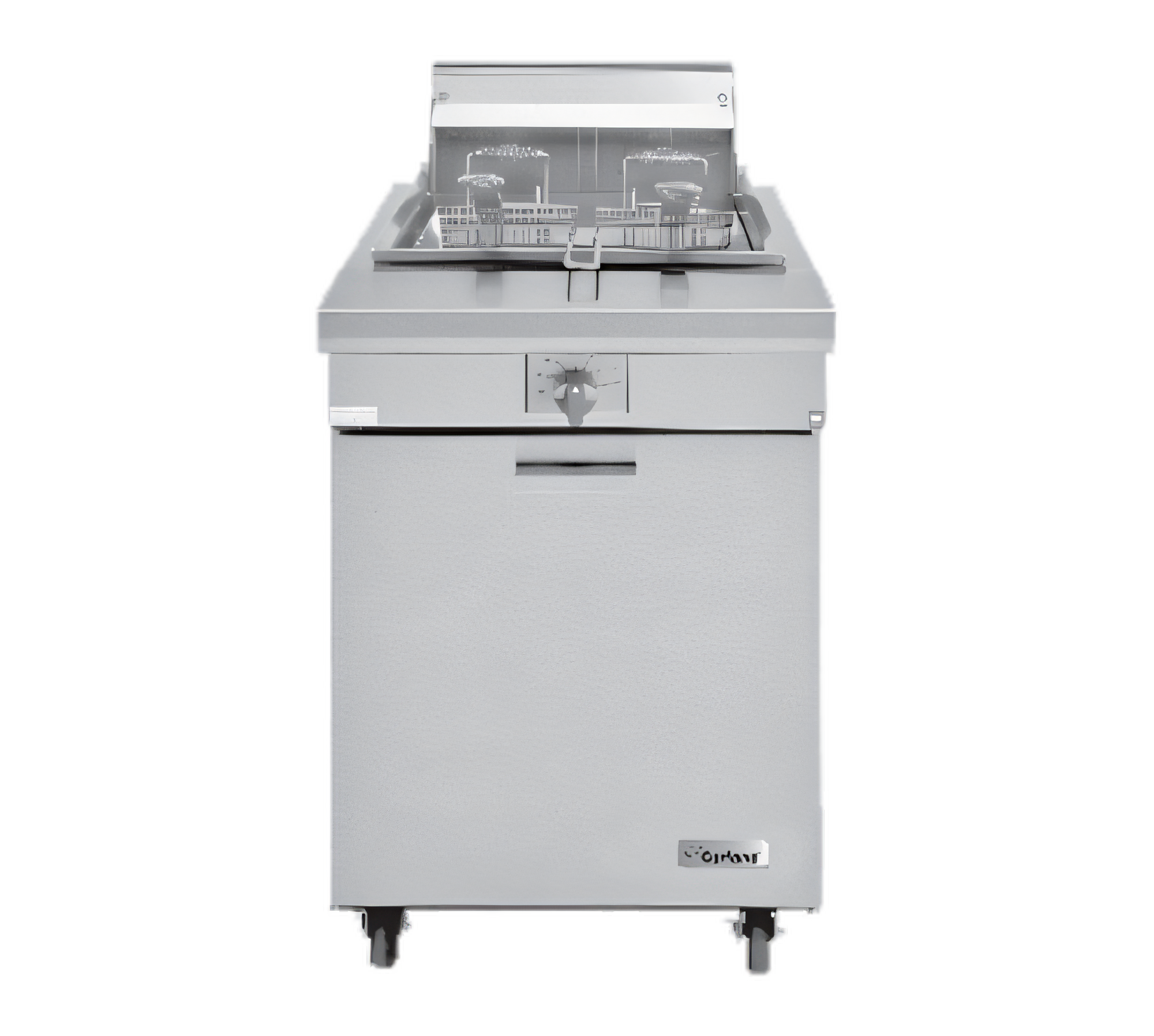

Garland M70SS Master Gas Fryers
Product Description
The Garland Master Series M70SS is a powerful and durable fryer designed for the demanding needs of professional kitchens. With a generous 70-lb frying capacity, this range-match fryer provides the precision control and reliable performance that experienced chefs require. Engineered to withstand the relentless pace of modern commercial operations, the M70SS is also NSF certified, ensuring it meets rigorous safety and sanitation standards.
Why You'll Love It:
- Powerful performance with a 125,000 BTU infra-red jet-type burner that recovers quickly during peak periods.
- Durable 70 lb (32 kg) stainless steel frypot that can handle high-volume menu items without flavor carryover.
- Seamless integration with Garland Master Series cooking suites, providing a continuous work surface.
- Reliable start-ups with Piezo spark ignition and a constant-burn, 100% safety pilot.
- Consistent flame and efficient gas consumption thanks to the built-in pressure regulator.
- Includes twin chrome-wire baskets (with an optional large single basket available).
- Easy-to-clean, all-stainless exterior (front, rail, and sides) that resists corrosion.
- Comes with 6" (152 mm) adjustable legs, and optional non-marking swivel casters with front brakes.
High-Volume Output:
- The machine can produce up to 95 pounds of french fries per hour, after the potatoes have been blanched to finish cooking.
- The machine can produce up to 100 pounds of battered fish per hour, in 3-ounce portions.
- The machine can produce up to 28 pounds of breaded chicken per hour, cooking the raw chicken all the way through.
Popular Options & Accessories:
- Choose from 10-inch, 17-inch, or 33-inch stainless steel backguards to suit your needs.
- Opt for a stainless steel frypot cover or fish plate for added functionality.
- Upgrade to a large single basket, which replaces the standard twin baskets.
- Enhance the appearance and functionality with a stainless steel main back or common front rail, ideal for battery installations.
- Benefit from a rear ¾-inch gas connection and end caps or covers.
- Enjoy the convenience of polyurethane swivel casters (set of 4) with front brakes, but ensure they are installed with an approved restraining device.
Installation & Clearance:
- Maintain a clearance of 6 inches (152 mm) on the sides and back of the fryer from any combustible materials.
- Ensure a clearance of 29-¼ inches when the fryer is crated, and 17-¼ inches when it is uncrated.
- It is not recommended to have a double-deck high shelf above the fryer.
Product Specs
| Specification | Value |
|---|---|
| Model | M70SS |
| Overall width | 24" / 612 mm |
| Overall depth | 38" / 965 mm |
| Height (with NSF legs) | 36-3⁄8" / 924 mm |
| Oil capacity | 70 lb / 32 kg |
| Heat input | 125,000 BTU/h (36.62 kW) |
| Burner type | Infra-red jet-type with built-in regulator |
| Gas type & pressure | Natural 6" W.C. | Propane 10" W.C. |
| Gas connection | 1-¼" NPT front (¾" rear optional) |
| Shipping weight | 265 lb / 120.5 kg |
| Certifications | NSF, CSA (gas) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Garland |
| Brand Name | Master |
| Certifications | NSF |
| Height | 36.38in |
| Width | 24.0in |
| Depth | 38.0in |
| Shipping Weight | 265.0lbs |
| Controls | thermostatic controls |
| Fry pot | stainless steel fry pot |
| Fat Capacity (approximate) | 70 lb |
| Type | heavy duty, range match |
| Basket Lifts | without basket lifts |
| Exterior Finish | stainless steel front & sides |
| Filter | no filter |
| Specifications | Master Series Fryer, gas, Range Match, 70 lb. fat capacity, thermostat controls, Piezo spark ignition, stainless steel fry pot, stainless steel front, front rail & sides, 6" adjustable legs, 125,000 BTU, NSF (Garland) |
