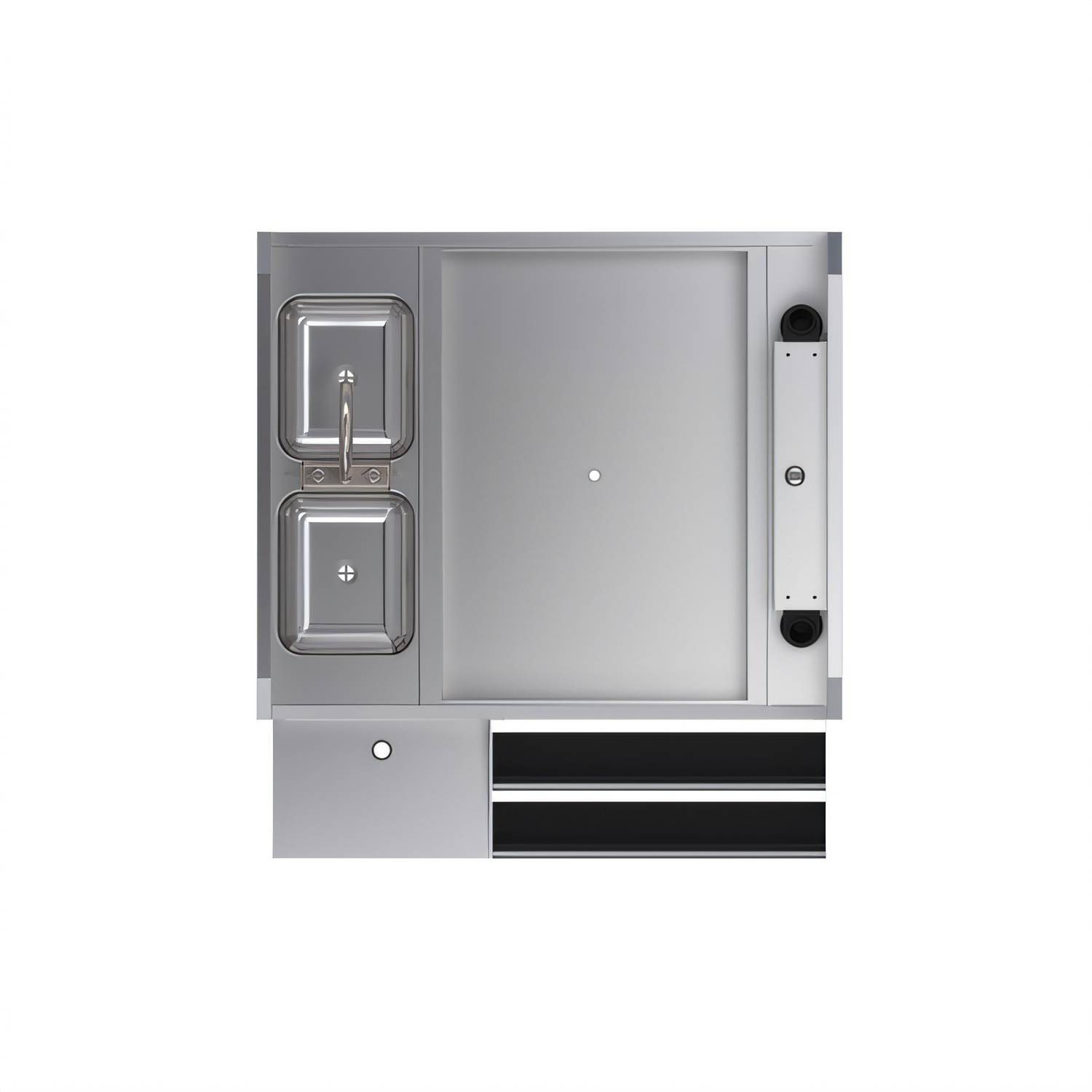

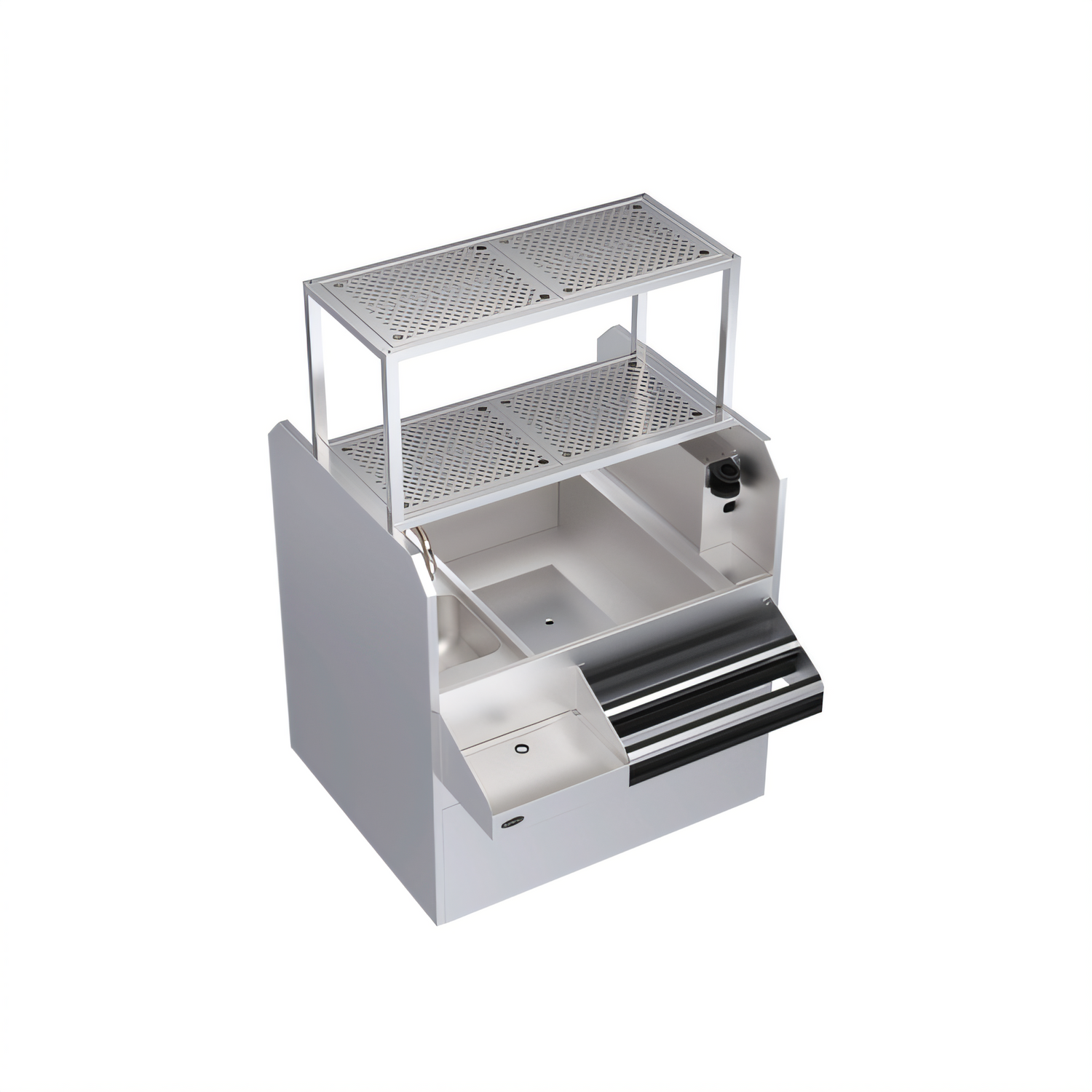

Model KRPT-42RP-10 | Underbar Ice Bin & Workstation with 10-Circuit Cold Plate This 42" Krowne Royal Series pass-thru station is designed for high-volume bars that demand speed and sanitation. It combines an ice bin, cold plate, dual dump sinks, and a blender shelf into a single NSF-listed unit. Constructed with stainless steel, it features a built-in soda gun chase and sound-deadening speed rail to help bartenders work efficiently through every rush.

Highlights:

• The unit has a 24-inch wide pass-through ice bin on the right, with a sealed 10-circuit cold plate made of stainless steel tubing.
• It includes an integrated 24-inch double speed rail that is sound-deadened for quieter service.
• There are two 10-inch by 14-inch by 7-inch dump sinks on the left, each with their own drains.
• The unit features a Royal Series 4-inch center gooseneck faucet with ceramic cartridges and low-lead compliance.
• It has a 16-inch wide blender shelf with a pre-wired duplex outlet mounted below.
• The 18-inch deep perforated glass tray shelf with a drain keeps glassware ready to serve.
• The 4-inch tubing chase includes a stainless steel soda gun holder for clean and protected line routing.
• The ice bin insulation is foamed-in-place to maximize ice retention.
• Stainless steel side panels, tubular legs, and grey plastic bullet feet are included.
• The 45-inch front-to-back depth matches other Royal Series underbar equipment.

Utility Connections:

• The hot and cold water supply lines for the faucet are 1/2 inch in size.
• The drain lines for the sink bowls are 1-1/2 inches in size.
• The drain line for the cold plate is 1/2 inch in size.
• The drain line for the glass shelf is 1 inch in size.
• There is one pre-wired 120-volt duplex outlet located under the blender shelf.
