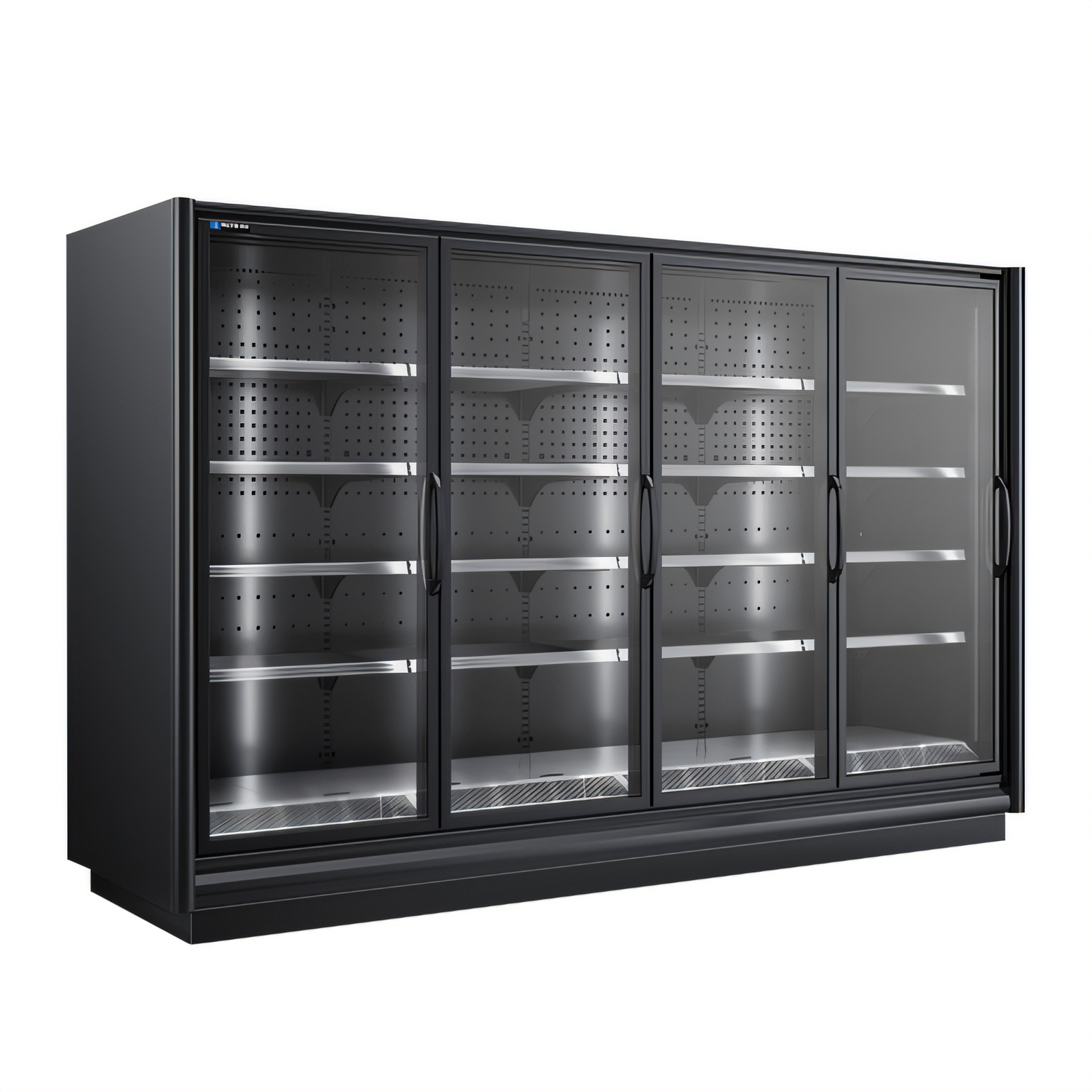

Master-Bilt Products BEL-4-30 Endless Configurable Glass Door Merchandisers

Product Description

The BEL-4-30 frozen display module lets you showcase more frozen products in less floor space. It features four full-height glass doors, energy-saving LED lighting, and the industry's deepest adjustable shelves. Built for connection to a remote refrigeration system, this low-temperature module maintains product at 0 to -15 °F while cutting energy costs and simplifying aisle design. When planning a larger run, Endless modules ship with factory joining kits to connect multiple coolers and freezers for a seamless presentation. Mixed-temperature line-ups can be achieved by adding the correct insulated partition between cases.

Why you'll love it:

  • The low-temperature freezer case can maintain temperatures between 0 to -15 °F (-18 to -26 °C).
  • It features four 30-inch hinged Thermoseal® glass doors with self-closing and adjustable torsion hinges.
  • There are twenty 23-inch deep cantilever shelves (5 per door), each rated for 135 pounds and supplied with price-tag molding.
  • The front air screen minimizes frost build-up and reduces defrost cycles, leading to lower operating costs.
  • The high-efficiency EC fan motors use up to 65% less energy than shaded-pole motors.
  • The bright, evenly distributed LED lighting on every shelf level eliminates dark spots.
  • The 2 1/2-inch foamed-in-place walls (R-factor 20.0) and cam-locked panels provide superior insulation and rigidity.
  • The durable painted, textured galvanized steel interior and exterior are made in the USA.
  • The remote-ready refrigeration features a bottom-mounted copper-tube evaporator coil with a pre-installed expansion valve.
  • The unit is certified cULus and UL EPH Classified for safety and sanitation.

Perfect for:

  • Supermarkets and grocery stores: This product is ideal for traditional grocery stores and supermarket chains.
  • Convenience stores and fueling stations: This product can be a great fit for convenience stores, gas stations, and other similar retail locations.
  • Specialty frozen-food retailers: This product is well-suited for stores that specialize in frozen food items.
  • Warehouse clubs and distributors: This product can be a valuable addition for wholesale clubs and distribution centers.

Product Specs

Specification Value
Model BEL-4-30 (Endless Low-Temp Module)
Overall width 122 ⅞" / 312 cm (ends sold separately)
Overall depth 40 ⅜" / 103 cm (incl. handles & rear stand-offs)
Overall height 81 ⅞" with skid runner • 79 ¾" without
Doors 4 hinged glass, black frames, self-closing
Shelf count / size 20 adjustable shelves • 23" deep
Merchandising volume 107.1 ft³ pack-out • 55.9 ft² visible facing
Temperature range 0 to -15 °F (-18 to -26 °C)
Refrigerant R-448A / R-449A (remote system – condensing unit not included)
Electrical 120/208-230 V, 60 Hz, 1-phase, 4-wire hard-wire • MCA 22.1 A • MOP 25 A
Interior lighting 5 integrated LED fixtures
Crated weight 1,785 lb / 811 kg (without ends or condensing unit)
Warranty 2-year parts & labor on cabinet

Features

Specification Value
Manufacturer Master-Bilt Products
Brand Name Endless Configurable
Certifications cULus, UL EPH Classified, Made in USA
Height 81.88in
Width 122.88in
Depth 40.38in
Shipping Weight 1785.0lbs
Capacity 86 cu. ft. (and up)
Size 4 section
Exterior Finish black
Refrigeration remote (refrigeration not included)
Doors hinged
Specifications Endless Low-Temperature Merchandiser, remote, 122.88" W, (4) 30" W hinged glass door sections (ends are not included), (20) shelves with tag molding, LED lighting, painted textured galvanized steel interior & exterior, bottom mount coil, cULus, UL EPH Classified, Made in USA (SPECIAL ORDER - Contact factory for availability)
