Description

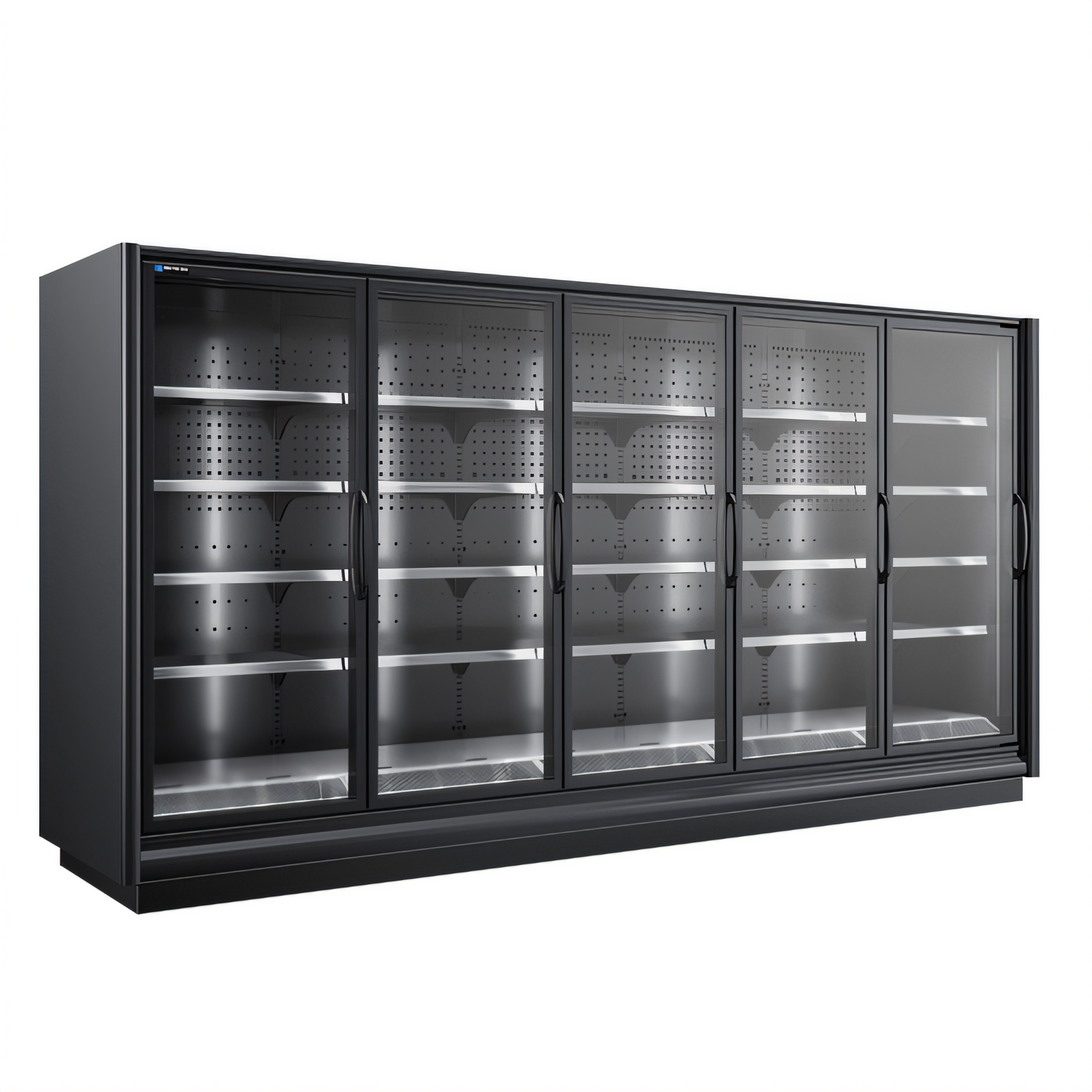

Master-Bilt Products BEL-5-30 Endless Configurable Glass Door Merchandisers
Product Description
This premium-quality, made-in-the-USA remote freezer case from Master-Bilt offers an expansive 153-5/16" W x 81-7/8" H x 40-3/8" D display area to showcase your frozen products. With nearly 70 sq. ft. of product facing and a spacious 133.7 cu. ft. pack-out capacity, this Endless low-temperature module keeps merchandise chilled to a consistent 0 to -15 °F. Its energy-efficient features, including a front air curtain, high-efficiency EC fans, and brilliant LED lighting, help maintain optimal temperatures and product visibility to drive sales.
Why You'll Love It:
- The unit has a massive capacity with five 30-inch hinged glass doors and 25 deep 23-inch shelves, each rated for 135 pounds.
- The energy-efficient EC fan motors use up to 65% less energy than shaded-pole motors, reducing your energy costs.
- The front air curtain blocks warm air during door openings, cutting frost and defrost cycles and improving efficiency.
- The remote refrigeration system keeps the heat and noise off the sales floor, making it easier to service the unit.
- The LED illumination evenly lights every shelf, eliminating dark spots and boosting impulse buys.
- The unit is built to last, with cam-locked, 2.5-inch thick galvanized steel panels and zero-ODP insulation (R-factor 20.0).
- The user-friendly doors are self-closing and field-adjustable, with standard black frames.
- The unit is food-safe and compliant, being cULus listed, UL EPH Classified, ANSI/NSF 7, and DEKRA certified.
- The unit is eco-friendly, ready for R-448A / R-449A refrigerant systems.
Product Specs
| Specification | Value |
|---|---|
| Model | BEL-5-30 (Remote, Low Temp) |
| Temperature Range | 0 °F to -15 °F (-18 °C to -26 °C) |
| Overall Dimensions | 153-5/16" W × 40-3/8" D × 81-7/8" H |
| Doors | 5 hinged, 30" wide each (self-closing) |
| Shelves | 25 solid cantilever shelves with tag molding, 23" deep |
| Pack-Out / Facing | 133.7 ft³ • 69.7 ft² |
| Lighting | 6 LED light strips (one per door mullion) |
| Electrical (case only) | 120/208-230 V, 60 Hz, 1 Ø, 4-wire • MCA 27.5 A • MOP 30 A |
| Refrigeration | Remote connection, bottom-mount coil, electric defrost |
| Interior / Exterior Finish | Painted textured galvanized steel – black |
| Ship Weight* | Approx. 1,955 lb / 889 kg |
Features
| Specification | Value |
|---|---|
| Manufacturer | Master-Bilt Products |
| Brand Name | Endless Configurable |
| Certifications | cULus, UL EPH Classified, Made in USA |
| Height | 81.88in |
| Width | 153.31in |
| Depth | 40.38in |
| Shipping Weight | 1955.0lbs |
| Refrigeration | remote (refrigeration not included) |
| Exterior Finish | black |
| Size | 5 section |
| Doors | hinged |
| Capacity | 86 cu. ft. (and up) |
| Specifications | Endless Low-Temperature Merchandiser, remote, 153.31" W, (5) 30" W hinged glass door sections (ends are not included), (25) shelves with tag molding, LED lighting, painted textured galvanized steel interior & exterior, bottom mount coil, cULus, UL EPH Classified, Made in USA (SPECIAL ORDER - Contact factory for availability) |
