Description

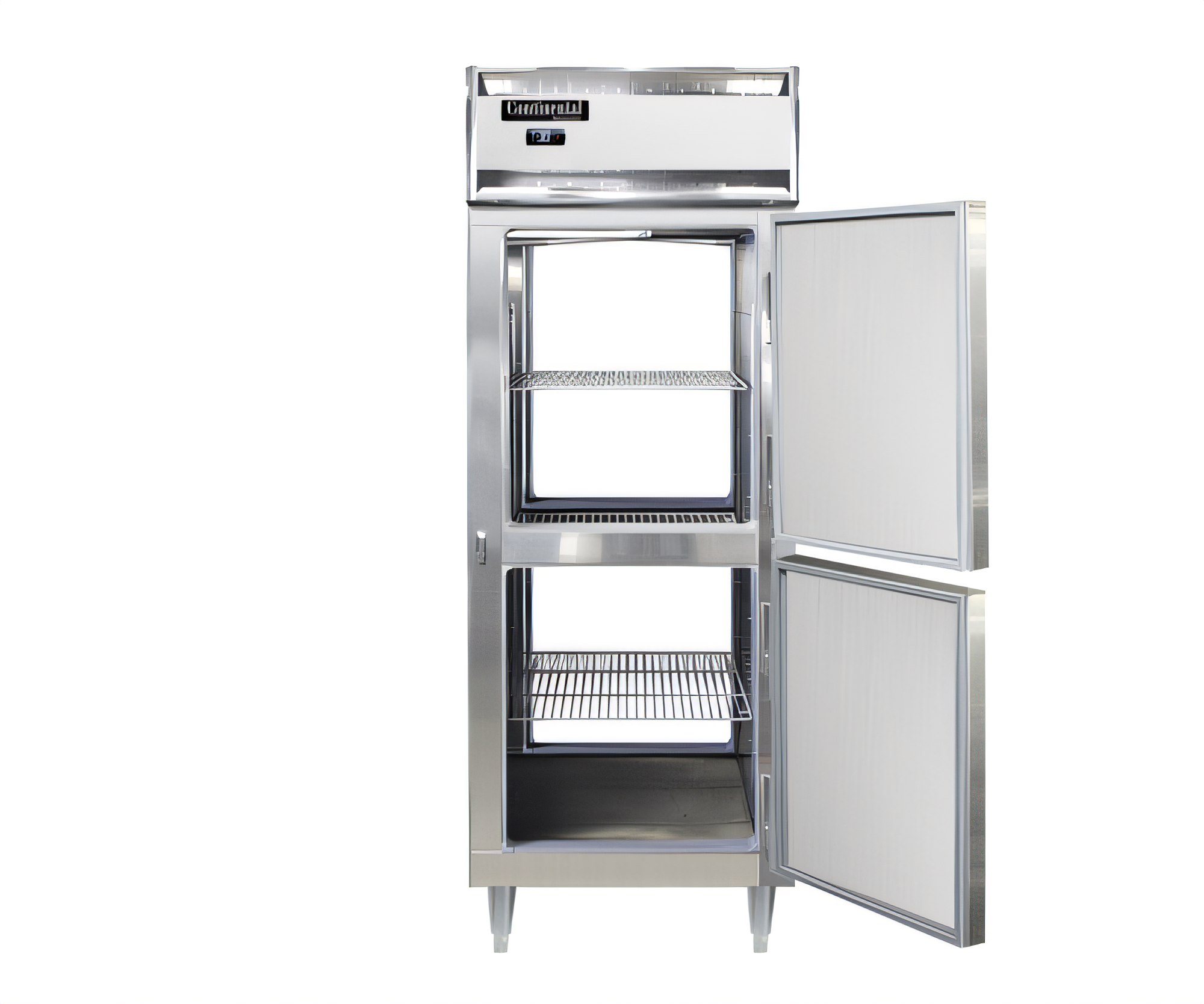

Continental Refrigerator D1FENPTHD Designer Line Reach-In Refrigerators & Freezers
Product Description
The Continental Refrigerator Designer Line pass-thru freezer offers a 28-1/2" wide footprint with half-height solid doors, making it ideal for high-volume kitchens that prioritize both performance and presentation. Featuring eco-friendly R-290 refrigeration and extra-wide door openings, this freezer allows for efficient transfer of frozen items from prep to plating. Factory options like additional shelves, caster kits, and universal pan slides are available to further enhance the unit's functionality.
Key advantages:
- The pass-through configuration allows staff to access the contents from both sides of the line.
- The top-mounted, self-contained "plug" refrigeration system enables fast, drop-in installation.
- The use of natural R-290 refrigerant and an efficient 1/2 HP compressor results in lower operating costs.
- The unit is factory set to hold 0 °F, and can be field-adjusted down to -10 °F in a 90 °F ambient environment.
- The microprocessor control features an LED temperature read-out and high/low alarm.
- The construction includes a stainless steel front, aluminum interior and ends, and 3" foamed-in-place insulation.
- The wide, half-height doors have lift-off cam hinges, self-closing action, and cylinder locks.
- LED interior lighting and three adjustable epoxy-coated shelves are included.
- The unit comes standard with 6" adjustable stainless steel legs (casters are available).
- The unit is cETLus and NSF listed for use in commercial kitchens.
What's included:
- Three adjustable, epoxy-coated steel shelves.
- Magnetic, snap-in Santoprene™ door gaskets.
- Automatic electric defrost and hot-gas condensate evaporation system.
- 10-foot factory-installed power cord.
Product Specs
| Specification | Value |
|---|---|
| Net capacity | 22 cu ft / 623 L |
| Doors | 2 wide half-height solid (front & rear) |
| Shelves supplied | 3 adjustable (20.4 sq ft total) |
| Temperature range | 0 °F to -10 °F (-18 °C to -23 °C) |
| Refrigerant | R-290 hydrocarbon |
| Compressor | 1/2 HP, top-mounted |
| Electrical | 115 V / 60 Hz / 1-ph • 6.9 A • NEMA 5-15P plug |
Features
| Specification | Value |
|---|---|
| Manufacturer | Continental Refrigerator |
| Brand Name | Designer Line |
| Certifications | NSF, cETLus |
| Height | 83.25in |
| Width | 28.5in |
| Depth | 39.0in |
| Shipping Weight | 385.0lbs |
| Capacity | 10 - 23 cu. ft. |
| Compressor HP | 1/3 HP |
| Refrigeration | self-contained, top mounted |
| Door Style | half door(s), wide |
| Size | 1 section |
| Exterior Finish | stainless steel front, aluminum sides |
| Door Type | solid |
| Specifications | Designer Line Wide Freezer, pass-thru, 28-1/2"W, one-section, self-contained refrigeration, aluminum exterior & interior, stainless steel front, standard depth cabinet, wide half-height solid doors, cylinder locks, electronic control with digital display, hi-low alarm, 6" stainless steel legs, R290 hydrocarbon refrigerant, 1/2 HP, cETLus, NSF |
Documents
CAD Files
Certifications
Purchase Notice
Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
