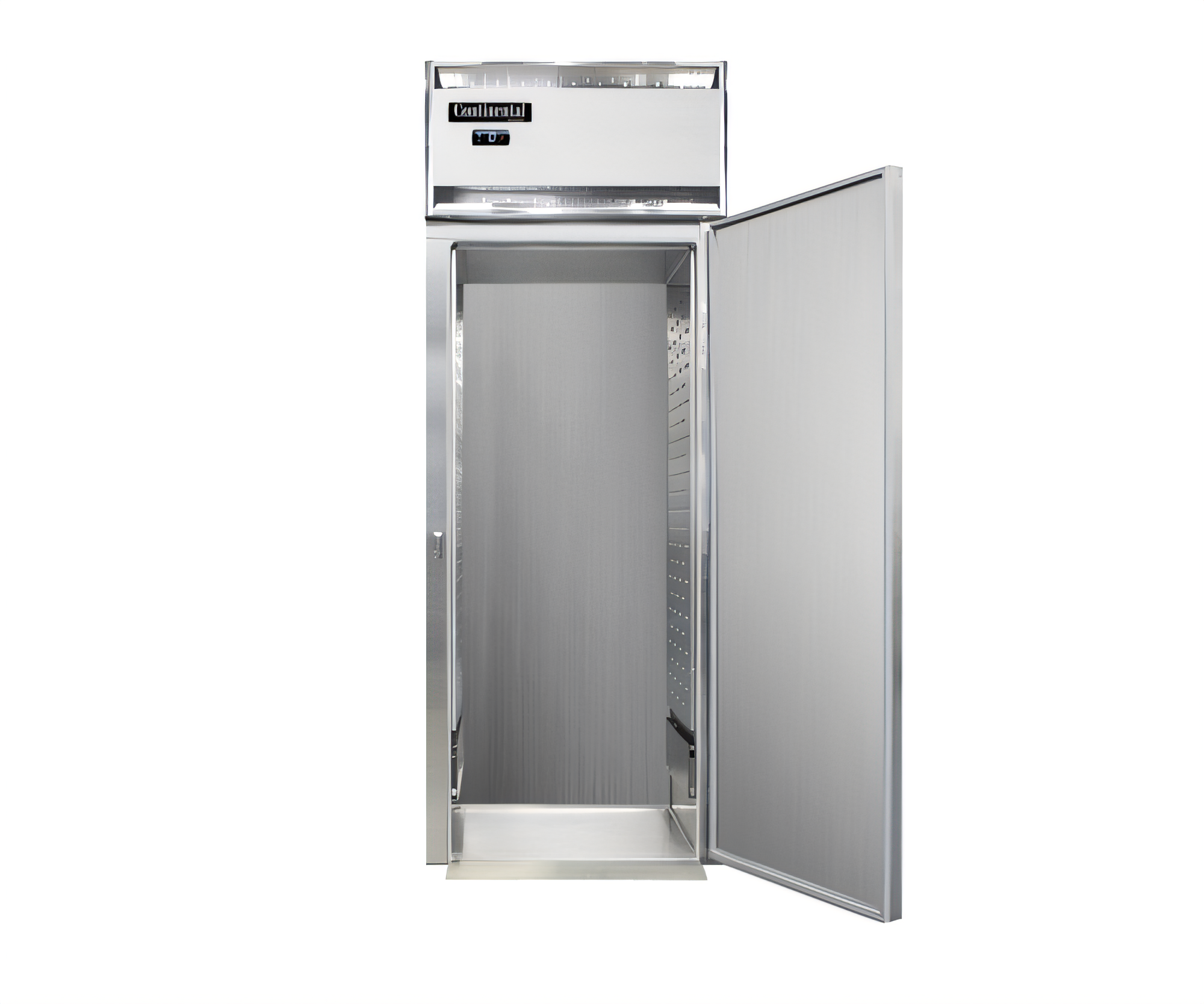

Continental Refrigerator D1FINSA Designer Line Reach-In Refrigerators & Freezers
Product Description
Model D1FINSA | Natural Refrigerant R-290
Designed for high-volume kitchens that rely on rack handling, the Designer Line roll-in freezer maintains product at a consistent 0 °F while providing the premium quality and finish expected from Continental Refrigerator. Just roll in a full-size rack, secure the solid stainless steel door, and let the powerful 1 HP "plug" refrigeration system handle the rest. Ensure proper ventilation by allowing at least 12 inches of clearance above and 3 inches on the sides and rear.
Performance & Convenience:
- Self-contained, top-mounted "plug" refrigeration system for easy access and service
- Uses natural, energy-efficient R-290 hydrocarbon refrigerant
- Factory-set to maintain a temperature range of 0 °F to -5 °F, adjustable down to -10 °F (in 90 °F ambient conditions)
- Electronic control with digital temperature display, automatic defrost, and high/low temperature alarm
- LED interior lighting and stainless steel air ducts for even cooling
- Roll-in cavity fits one rack up to 27" W × 29" D × 66-1/4" H (rack not included)
- Removable stainless steel ramp and rack guides for faster cleaning and sanitizing
Built to Last:
- The exterior is made of durable stainless steel, and the interior is lined with rugged aluminum.
- The unit is insulated with 3-inch thick, CFC-free polyurethane for maximum thermal retention.
- The full-height solid door has a polished chrome workflow handle for easy operation.
- The self-closing design, cam-lift hinges, magnetic Santoprene™ gasket, and cylinder lock provide reliable performance.
- The reinforced stainless steel floor can withstand the weight of heavy carts.
- The product is cETLus and NSF listed, and it is proudly designed and assembled in the USA.
Product Specs
| Specification | Value |
|---|---|
| Capacity | 32 cu ft (906 L) |
| Door(s) | 1 full-height solid, right-hinged (field rehanging optional) |
| Overall Dimensions | 35-1/4" W × 35-3/8" D × 86" H |
| Clear Door Opening | 27-3/8" W × 66-1/2" H |
| Compressor | 1 HP, top-mount, air-cooled |
| Refrigerant | R-290 (natural hydrocarbon) |
| Voltage | 115/208-230 V, 60 Hz, 1-ph, 6.3 A, NEMA L14-20P plug included |
| BTU Capacity | 3,530 BTU /hr (-15 °F evap., 90 °F ambient) |
| Shipping Weight | 475 lb (standard); 600 lb (all-stainless) |
| Certifications | cETLus, NSF |
| Warranty | 7-year parts, labor & compressor |
Features
| Specification | Value |
|---|---|
| Manufacturer | Continental Refrigerator |
| Brand Name | Designer Line |
| Height | 86.0in |
| Width | 35.5in |
| Depth | 35.38in |
| Shipping Weight | 515.0lbs |
| Interior Finish | all aluminum interior |
| Size | 1 section |
| Compressor HP | 3/4 HP |
| Door Type | hinged |
| Exterior Finish | all stainless steel exterior |
| Refrigeration | self-contained refrigeration |
| Specifications | Designer Line Freezer, roll-in, one-section, self-contained refrigeration, stainless steel exterior, aluminum interior, standard depth cabinet, full-height solid door, cylinder lock, electronic control with digital display, hi-low alarm, removable stainless steel ramp, R290 hydrocarbon refrigerant, 1 HP, cETLus, NSF |
