Description

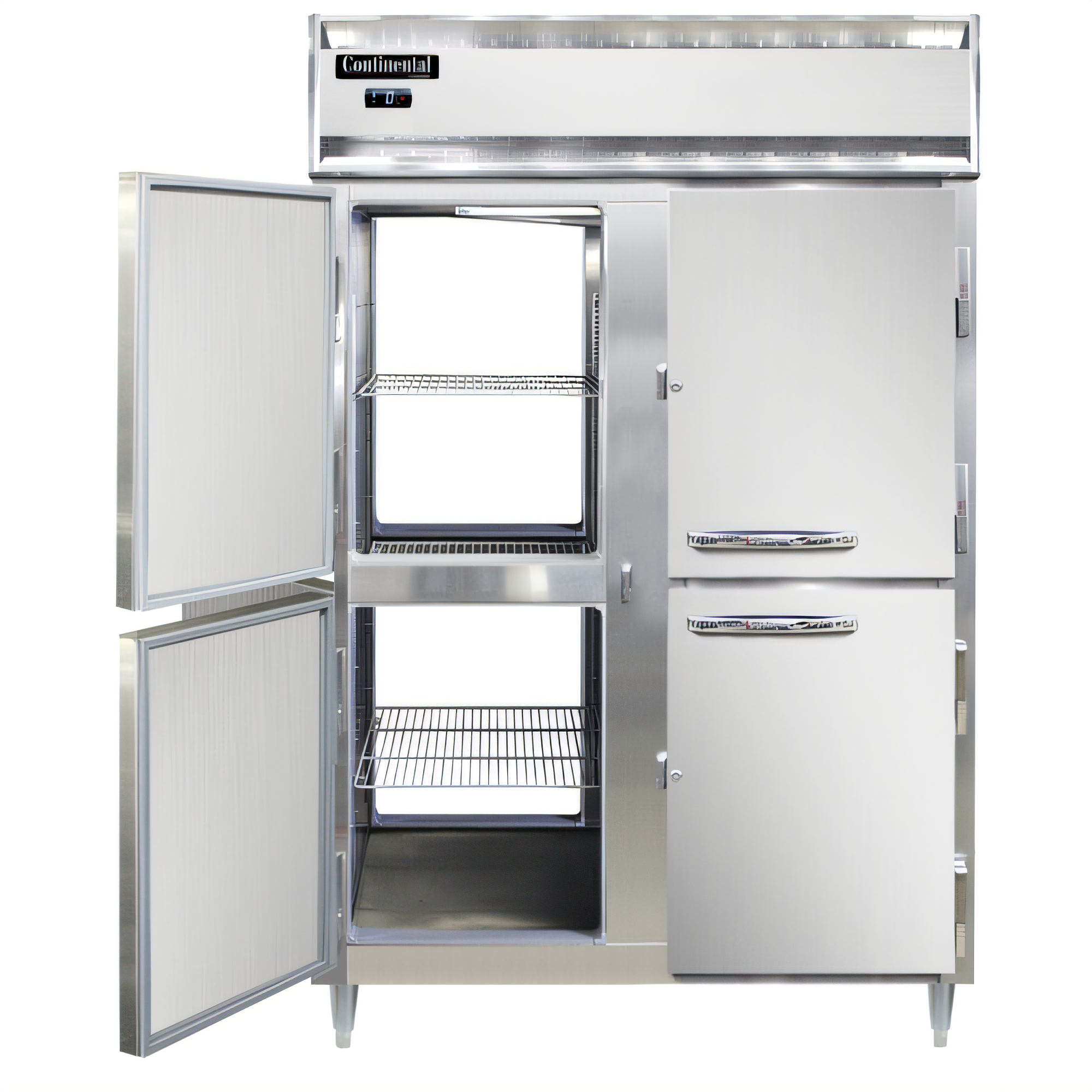

Continental Refrigerator D2FNPTHD Designer Line Reach-In Refrigerators & Freezers
Product Description
Model D2FNPTHD • Continental Refrigerator
Designed for high-volume kitchens, the Designer Line Pass-Thru Freezer offers speed, security, and energy savings. Its top-mounted refrigeration system uses eco-friendly R-290 refrigerant and is covered by a 7-year parts, labor, and compressor warranty. Load from the back, serve from the front, and maintain the cold chain.
Key Features:
- The cabinet has two separate sections - one side for storing stock, the other for pulling items.
- It has a 50 cubic foot capacity while maintaining a standard-depth footprint (52" wide x 38-3/4" deep).
- The top-mounted, self-contained 1 HP refrigeration system uses eco-friendly R-290 refrigerant.
- The electronic thermostat has a large digital display, high-low temperature alarm, and automatic electric defrost.
- The temperature range is factory-set from 0°F to -5°F, but can be adjusted in the field to -10°F in a 90°F ambient environment.
- It has eight half-height solid doors that minimize cold-air loss, each with a cylinder lock, cam-lift hinge, and self-closing action.
- The exterior is stainless steel, the interior is aluminum, and it has 3" of CFC-free polyurethane insulation.
- There are six epoxy-coated wire shelves (40.8 sq ft) on heavy-duty pilasters that are fully adjustable.
- It has bright, energy-efficient LED lighting and magnetic snap-in door gaskets.
- The 6" stainless steel legs are adjustable for easy cleaning underneath the cabinet.
Performance & Certifications:
- This product is ENERGY STAR® certified, which means it has a low operating cost.
- It is cETLus and NSF listed, making it suitable for commercial foodservice use.
- The natural hydrocarbon refrigerant (R-290) used in this product has a reduced Global Warming Potential (GWP).
- The product is designed and assembled in the USA.
Why Choose the Designer Line?:
- The refrigeration "plug" can be easily removed, making service and repairs simpler and reducing downtime.
- The pass-through design helps streamline the workflow between the prep and service areas.
- The energy-efficient construction and components lower the lifetime operating costs of the equipment.
Product Specs
| Specification | Value |
|---|---|
| Net Capacity | 50.0 cu ft (1416 L) |
| Door Configuration | 8 half-height solid doors, pass-thru |
| Exterior | Stainless steel front, aluminum ends |
| Interior | Aluminum with LED lighting |
| Dimensions (W × D × H) | 52" × 38-3/4" × 83-1/4" (including 6" legs) |
| Shelf Area | 40.8 ft² (6 shelves included) |
| Temperature Range | 0 °F to –5 °F (adjustable to –10 °F) |
| Compressor | 1 HP, top-mounted |
| Cooling Capacity | 2,470 BTU/hr @ +25 °F evap., 90 °F ambient |
| Electrical | 115 V / 60 Hz / 1-ph • 8.9 A • NEMA 5-15P cord & plug |
| Refrigerant | R-290 (natural HC) |
| Certifications | ENERGY STAR®, cETLus, NSF |
| Warranty | 7-year parts, labor & compressor (USA/Canada) |
Features
| Specification | Value |
|---|---|
| Manufacturer | Continental Refrigerator |
| Brand Name | Designer Line |
| Certifications | NSF, cETLus |
| Height | 83.25in |
| Width | 52.0in |
| Depth | 38.38in |
| Shipping Weight | 680.0lbs |
| Compressor HP | 3/4 HP |
| Exterior Finish | stainless steel front, aluminum sides |
| Door Style | half door(s) |
| Door Type | solid |
| Refrigeration | self-contained, top mounted |
| Size | 2 section |
| Specifications | Designer Line Freezer, pass-thru, two-section, 50.0 cu. ft., self-contained refrigeration, aluminum exterior & interior, stainless steel front, standard depth cabinet, half-height solid doors, cylinder locks, electronic control with digital display, hi-low alarm, 6" stainless steel legs, 1 HP, cETLus, NSF, Made in USA |
