Description

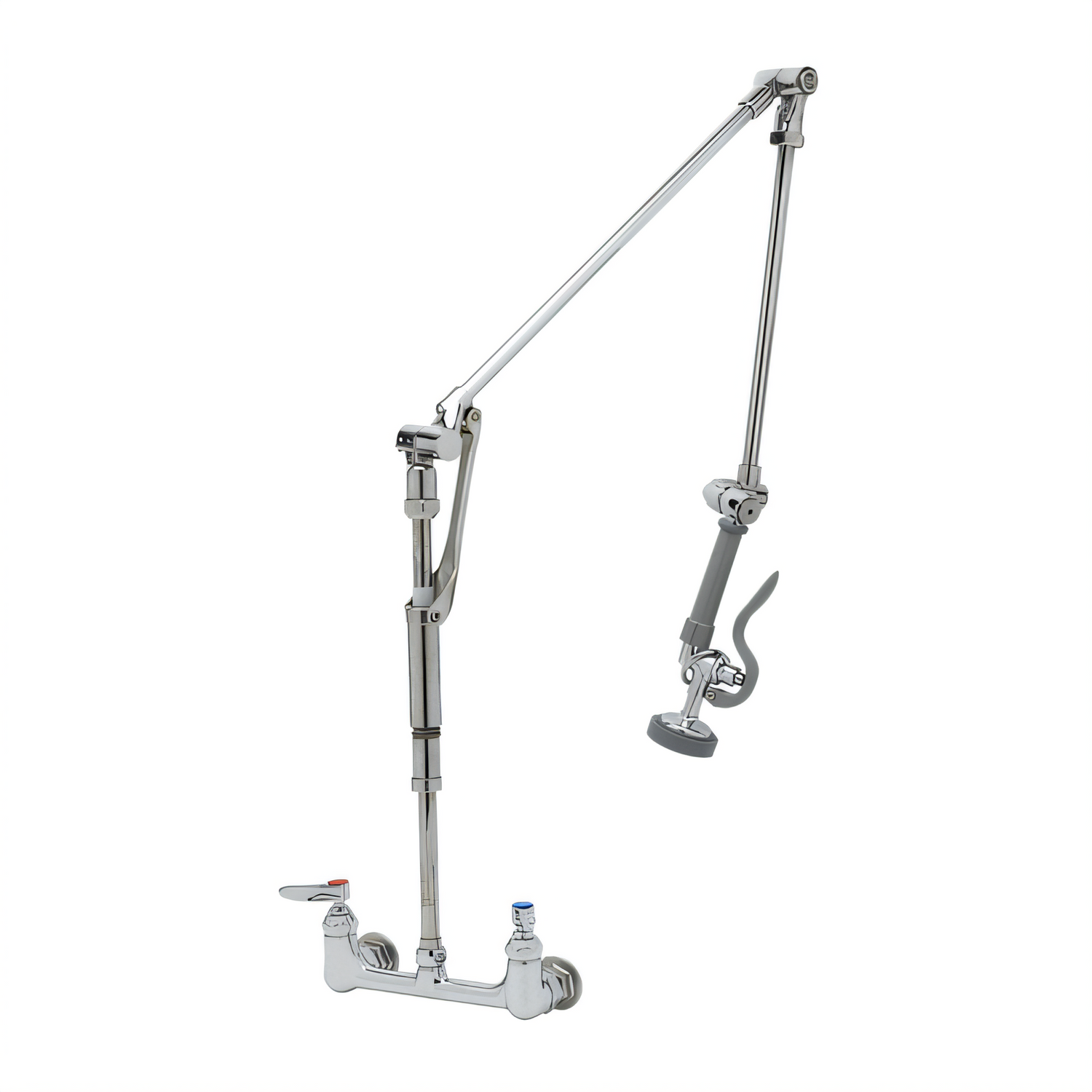

T&S Brass B-0134 EasyInstall Commercial Faucets & Plumbing
Product Description
The T&S Brass EasyInstall B-0134 wall-mount mixing faucet is designed for speed and durability, with a patented lock-nut and bushing system that cuts installation time by nearly half. Featuring quarter-turn Eterna cartridges and a low-flow 1.15 GPM spray valve, this faucet is engineered to save water, reduce maintenance, and keep your dish area running smoothly. T&S also offers optional spray valves with different flow rates, Cerama cartridges, and handle styles to meet your specific needs.
Why You'll Love It:
- Simple, fast installation with the EasyInstall mounting system - no basin wrench required.
- Durable, polished chrome-plated brass body that can withstand daily commercial use.
- Retractable swivel arm reaches 19 ⅝" when fully extended and stands 33 ½" high in the dock.
- Water-efficient B-0107 spray valve delivers a powerful 1.15 GPM rinse.
- Quarter-turn Eterna cartridges with spring checks prevent cross-flow and make maintenance easy.
- Color-coded lever handles for intuitive hot and cold water operation.
- Certified to meet NSF 61, NSF 372, and ASME A112.18.1/CSA B125.1 standards for low lead content and safety.
Perfect For:
- Restaurants and commercial kitchens that need durable and efficient dish washing equipment.
- School and hospital dish rooms that require reliable and high-capacity dishwashing solutions.
- Supermarket prep areas that demand thorough and hygienic dish cleaning.
- Catering commissaries that need versatile and easy-to-use dishwashing machines.
What's in the Box:
- A kit containing a lock-nut and bushing for easy installation.
- A retractable arm assembly with a 24-inch knuckle riser.
- A down pipe with a B-0107 spray valve and a hold-down ring.
- Lever handles with red and blue index buttons.
- A pair of 1/2-inch NPT eccentric flanges and coupling-nut washers.
Product Specs
| Specification | Value |
|---|---|
| Installation | Wall mount, 8" adjustable centers (7 ¾"–8 ¼") |
| Inlet Connections | ½" NPT male (includes eccentric flanges) |
| Overall Height | 33 ½" (850 mm) at normal hanging position |
| Maximum Overhang | 19 ⅝" (499 mm) from mounting wall |
| Spray Valve | B-0107, 1.15 GPM, heat-resistant gray handle |
| Cartridges | Quarter-turn Eterna with integral spring checks |
| Flow Rate | 1.15 GPM @ 60 psi |
| Working Pressure | 20–125 psi (1.4–8.6 bar) |
| Water Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Body Material | Polished chrome-plated brass |
| Compliance | ASME A112.18.1/CSA B125.1, NSF 61/372, 2019 DOE PRSV Class II |
| Warranty | 1-year limited (T&S Brass) |
Features
| Specification | Value |
|---|---|
| Manufacturer | T&S Brass |
| Brand Name | EasyInstall |
| Certifications | CSA |
| Shipping Weight | 15.0lbs |
| Faucet Centers | 8" centers |
| Wall or Deck Mount | splash / wall mount |
| Valve Type | compression valves |
| Specifications | EasyInstall Pre-Rinse Unit, wall mount mixing faucet with 8" adjustable centers, quarter-turn Eterna cartridges with spring checks, lever handles with color coded indexes, retractable arm assembly (33-1/2" high at normal hanging position, 19-5/8" overhang at maximum pull down), down pipe with heat-resistant gray handle & hold down ring, 1.15 GPM spray valve (B-0107), polished chrome-plated brass faucet body, 1/2" NPT male inlets, CSA |
