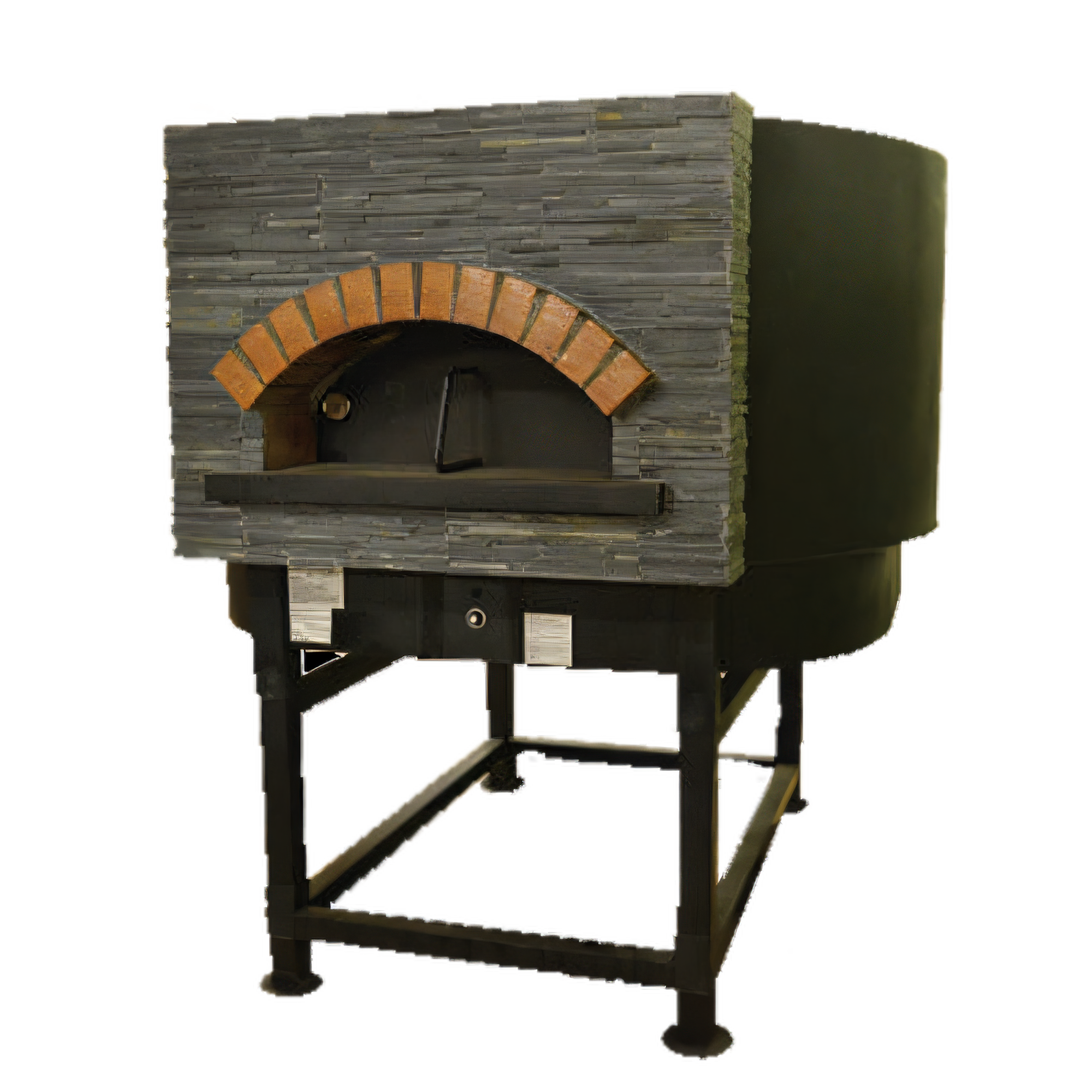

Univex DOME55R Coal/Wood Fired Ovens

Univex DOME55R Coal/Wood Fired Ovens



Regular price $36,374.40
$36,374.40
Sale price
Regular price
Sale Sold out

From $691.11/week with



Need more information? Contact us today!

Univex DOME55R Coal/Wood Fired Ovens

Product Description

The DOME55R gas-fired pizza oven, crafted in Italy and engineered for North American kitchens, offers authentic stone-hearth performance ideal for high-volume pizzerias, bakeries, hotels, and resorts. With an 11 x 12-inch pizza capacity and 97,500 BTU output, its 55 ⅛-inch round firebrick chamber delivers rapid recovery, even heat distribution, and the unmistakable flavor of a true masonry oven—all while maintaining a cool exterior touch.

Key benefits:

  • High-quality refractory firebrick dome and cooking floor provide excellent heat retention.
  • Large 55 ⅛ inch (140 cm) internal diameter allows baking of up to 11 standard 12-inch pizzas at once.
  • Factory-installed insulation keeps the exterior surfaces safe and energy-efficient.
  • Powerful 97,500 BTU gas burner (natural or propane) with a 3⁄8" NPT connection.
  • Built-in analog thermometer enables quick checks of the cooking chamber temperature.
  • Sturdy black iron stand and matching iron door included for immediate installation.
  • Integral 7 ⅞ inch (200 mm) stack exhaust, ready for connection to a natural draft flue.
  • 115 V, single-phase electrical system powers the controls, no separate service required.
  • Certified for gas safety and sanitation (cCSAus & NSF listed).

What's in the crate:

  • A pre-assembled, fully insulated oven body for the DOME55R model.
  • A black iron stand that can be easily assembled after transport.
  • A black iron oven door with a viewing slot.
  • An analog dome thermometer that displays both Fahrenheit and Celsius scales.
  • A factory-installed internal stack exhaust system.
  • A user and installation manual.

Popular custom options (sold separately):

  • Choose from a variety of exterior finish kits, including red or yellow brick, 10 × 10 tiles, marble, mosaic, or metal leaf.
  • Add a decorative mantle or custom logo arch to personalize your space.
  • Opt for an under-oven wood storage base for extra storage and convenience.

Product Specs

Specification Value
Model DOME55R
Internal chamber Ø 55 ⅛" / 140 cm
Production capacity 11 × 12" pizzas per bake cycle
Heat source Gas, 97,500 BTU/h Natural Gas 4.0" WC • LP Gas 10.0" WC
Gas connection 3⁄8" (0.95 cm) NPT, left-hand side
Electrical 115 V / 60 Hz / 1-ph, 16 A
Vent connection 7 ⅞" (200 mm) Ø stack, natural draft (200–300 CFM max. if fan is mandated)
Overall weight 5,512 lb / 2,500 kg
Exterior dimensions (W×D×H) 72.8" × 70.9" × 72.8" (185 × 180 × 185 cm)
Clearances 6" (15 cm) sides & rear • 16" (41 cm) top • 40" (102 cm) front working space
Certifications cCSAus, NSF
Warranty 1-year on-site parts & labor

Features

Specification Value
Manufacturer Univex
Certifications NSF, cCSAus
Height 72.8in
Width 70.9in
Depth 72.8in
Shipping Weight 5511.6lbs
Hearth Width / Diameter 50" - 59"
Shape round
Base Style stationary (stand base)
Fuel Type gas-fired
Interior Deck Construction stone
Specifications Artisan Stone Hearth Round Pizza Oven, gas, (11) 12" pizza capacity, round 55-1/8" diameter internal cooking chamber, includes: thermometer, internal stack exhaust, iron stand & door, insulated, handmade firebrick, 115v/60/1-ph, 16 amps, 97,500 BTU, cCSAus, NSF
NSF
NSFNSF Certified – This product meets NSF International food safety and sanitation standards for commercial foodservice equipment.
cCSAus
cCSAuscCSAus Certified – This product has been tested and meets the requirements for this certification.
