Description

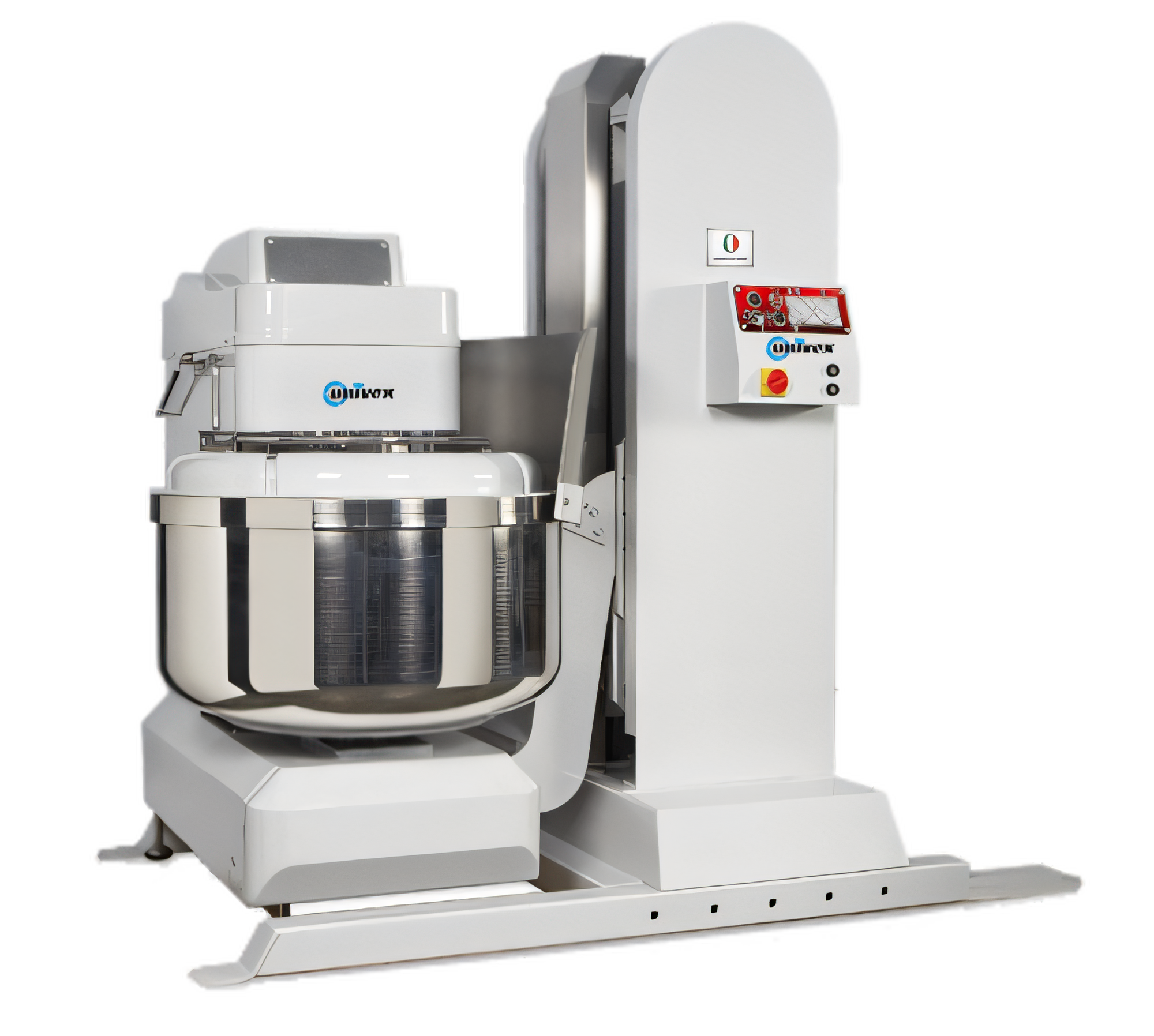

Univex SL120LH Spiral Dough Mixers
Product Description
The Univex Silverline SL120 Series is engineered for industrial bakeries, pizzerias, and commissaries. It can handle up to 265 lb / 120 kg of finished dough, automatically lifting and tilting the bowl for easy discharge. With dual motors, two mixing speeds, and a heavy-duty belt drive, it delivers consistent results batch after batch. Choose the SL120LH model for a higher discharge point for hopper loading, or the SL120LB for bench/table height. Right- or left-hand tilt must be specified when ordering.
Stand-out advantages:
- This mixer can handle up to 265 pounds of finished dough per batch.
- The heavy-duty belt-drive transmission provides low noise, low vibration, and a long service life.
- The mixer features independent, high-torque motors: - 8 HP (6.0 kW) spiral motor - 1 HP (0.75 kW) bowl motor - 3 HP (2.2 kW) hydraulic lifter motor
Features:
- The device has two speed settings: 95 revolutions per minute (RPM) and 190 RPM.
- The mixing bowl rotates at a speed of 15 RPM.
Product Specs
| Specification | Value |
|---|---|
| Specification | SL120LH |
| Finished dough capacity (max) | 265 lb / 120 kg |
| Spiral speeds | 1st 95 RPM | 2nd 190 RPM |
| Bowl speed | 15 RPM |
| Standard power | 220 V • 60 Hz • 3-phase (380 V option) |
| Spiral motor | 8 HP • 27.2 A • 6.0 kW |
| Bowl motor | 1 HP • 4.48 A • 0.75 kW |
| Lifter motor | 3 HP • 13.0 A • 2.2 kW |
| Total connected load | 12 HP • 8.95 kWTotal 31.68 A |
| Overall dimensions (W×D×H) | 96 × 60 × 91 in |
| Net weight | 3,527 lb (1,600 kg) |
| Shipping weight | 3,877 lb (1,759 kg) |
| Installation | Hard-wired connection with local disconnect |
Features
| Specification | Value |
|---|---|
| Manufacturer | Univex |
| Certifications | cETLus, ETL-Sanitation |
| Height | 124.63in |
| Width | 87.5in |
| Depth | 51.63in |
| Shipping Weight | 3877.0lbs |
| Bowl Type | tilting |
| Housing Construction | painted |
| Dough Capacity | 201 - 400 lbs |
| Speed | 2-speed |
| Attachments | bowl, dough hook |
| Controls | timer |
| Specifications | Silverline Spiral Mixer, 265 lb. bowl capacity, 2 speed, control board with separate timers, reverse function, safety switch, includes: built-in lifter, separate bowl & agitator motors, belt drive, stainless steel bowl, spiral dough hook (1st speed 95 rpm & 2nd speed 190 rpm) & shaft, bowl (1 hp, 4.48 Amps, .75 kW) and spiral (8 HP, 27.20 Amps, 6.0 kW) and lift (3 HP, 13.0 amps, 2.2 kW), cETLus, ETL-Sanitation |
Documents
CAD Files
Certifications
Purchase Notice
Pricing, availability, and product details are subject to change without notice. 24/7 Restaurant Equipment is not responsible for typographical errors or omissions. Freight charges may apply where applicable.
