Description

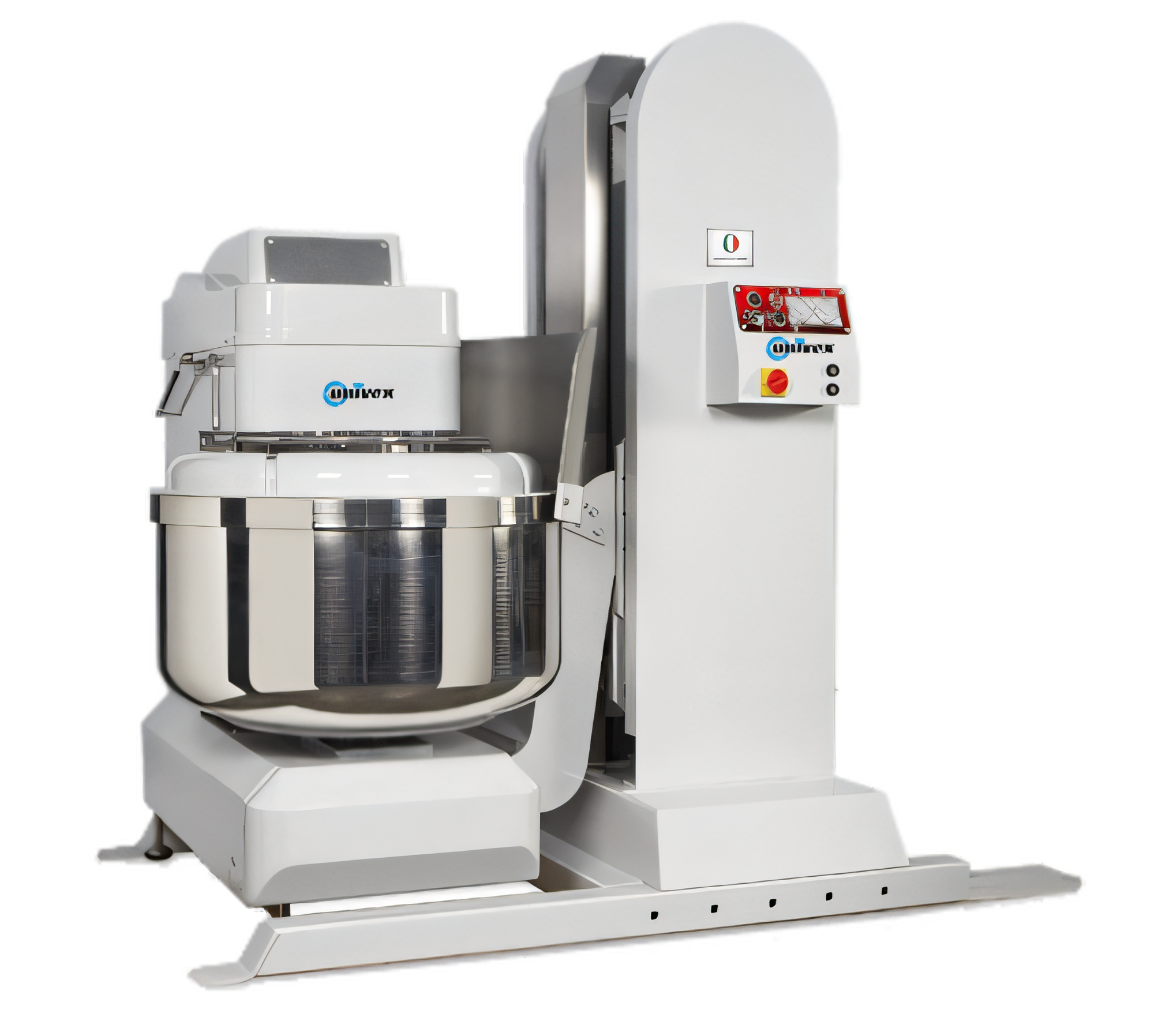

Univex SL160LB Spiral Dough Mixers
Product Description
The Univex Silverline SL160L Series mixers are designed for high-output bakeries, pizzerias, and commissaries. These models (SL160LH high-lift and SL160LB low-lift) can mix up to 350 lb (160 kg) of dough, ensuring perfect gluten development. The mixers feature two speeds, heavy-duty power, and rugged stainless-steel construction, delivering consistent results shift after shift. Customers can request special voltage, tilt direction, or custom paint finishes, as each Silverline mixer is built to order. For more information on the warranty and coverage, please contact the manufacturer.
Key Features:
- The machine can handle up to 350 lbs (160 kg) of finished dough in a single batch.
- It has two hook speeds: 95 RPM (1st) and 190 RPM (2nd), with a bowl reverse function.
- The integrated hydraulic lifter can tilt the bowl left or right (specify at order) for easy, mess-free unloading.
- The independent motors for the bowl (1 HP) and spiral (15 HP) provide maximum torque and longevity.
- The electronic control board has separate timers for low and high speed, allowing you to set it and walk away.
- The food-contact parts, including the bowl, spiral hook, and shaft, are made of heavy-gauge stainless steel.
- The low-noise, low-vibration belt drive helps keep maintenance and energy costs down.
- The swiveling bowl guard and bowl-lid interlock ensure operator safety.
- It is cETLus and ETL-Sanitation listed, meeting electrical and hygiene compliance standards.
Product Specs
| Specification | Value |
|---|---|
| Finished Dough Capacity | 350 lb (160 kg) |
| Hook Speeds | 1st 95 RPM | 2nd 190 RPM |
| Bowl Speed | 15 RPM |
| Lifter Operation | Hydraulic tilt – left or right |
| Spiral Motor | 15 HP (11 kW) – 52.8 A |
| Bowl Motor | 1 HP (0.75 kW) – 4.48 A |
| Lifter Motor | 3 HP (2.2 kW) – 13 A |
| Total Connected Load | 19 HP (13.95 kW) – 57.3 A |
| Electrical | 220 V, 3-Phase, 60 Hz – hard-wired with disconnect |
| Drive System | Heavy-duty belt |
| Net Weight | SL160LH 4,188 lb (1,900 kg) | SL160LB 3,527 lb (1,600 kg) |
| Overall Dimensions (W × D) | 96 " × 60 " (243.8 × 152.4 cm) |
| Height | LH 91 " (231 cm) | LB 71 " (180 cm) |
| Certifications | cETLus, ETL-Sanitation |
Features
| Specification | Value |
|---|---|
| Manufacturer | Univex |
| Certifications | cETLus, ETL-Sanitation |
| Height | 101.13in |
| Width | 88.88in |
| Depth | 54.63in |
| Shipping Weight | 3877.0lbs |
| Housing Construction | painted |
| Dough Capacity | 201 - 400 lbs |
| Speed | 2-speed |
| Bowl Type | tilting |
| Controls | timer |
| Attachments | bowl, dough hook |
| Specifications | Silverline Spiral Mixer, 350 lb. dough capacity, 2 speeds, reverse function, control board with separate timers, includes: built-in lifter, stainless steel bowl, spiral dough hook & shaft, separate bowl & agitator motor, belt drive, bowl (1 hp, 4.48 Amps, .75 kW) and spiral (15 HP, 52.8 Amps, 11.0 kW) and lift (3 HP, 13.0 amps, 2.2 kW), cETLus, ETL-Sanitation |
