Description

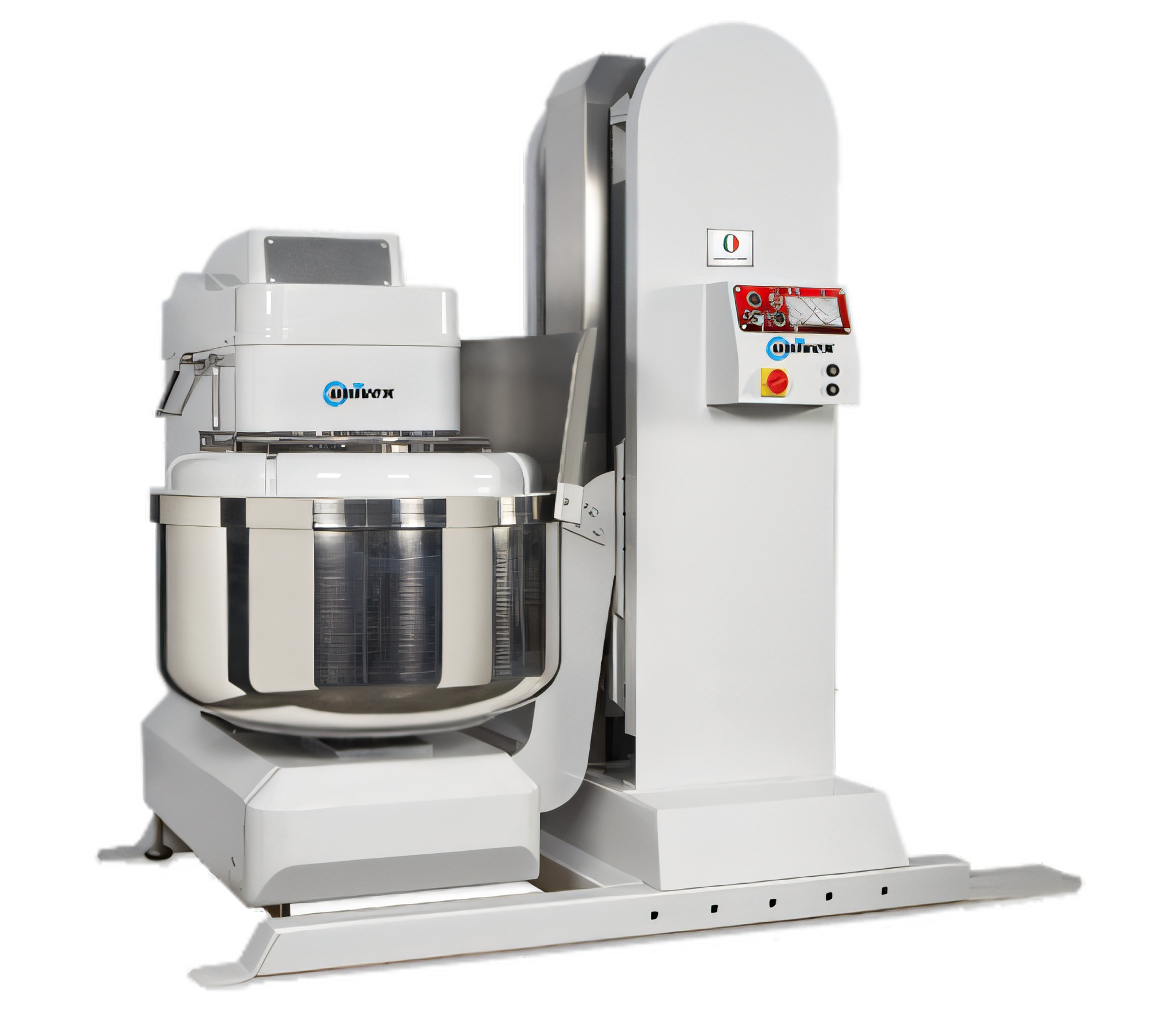

Univex SL160LH Spiral Dough Mixers
Product Description
The Silverline SL160L Series spiral mixer offers a powerful and consistent dough mixing solution for high-volume bakeries, commissaries, and pizza operations. With the ability to handle up to 350 lb (160 kg) of dough, this heavy-duty machine features an integrated bowl lifter and tilter, providing a seamless mix-to-discharge workflow for maximum efficiency and safety.
Why the SL160L Series stands out:
- The mixer can handle large batches of up to 350 lbs of finished dough without compromising gluten development.
- It has two fixed speeds (95 & 190 RPM) and reverse bowl rotation to make pre-mixing and cleanup quicker.
- The integrated hydraulic lifter tilts the bowl left or right (specify at order) for easy discharge into benches, hoppers, or dividers, eliminating the need for manual bowl handling.
- Separate motors for the spiral hook (15 HP), bowl (1 HP), and lifter (3 HP) maintain maximum torque under load.
- The programmable control board has separate timers for low and high speed, allowing you to set it and walk away.
- The food-grade stainless-steel bowl, spiral hook, and shaft resist corrosion and make sanitation easier.
- The belt-drive transmission delivers low vibration, low noise, and virtually maintenance-free operation.
- The full-coverage bowl guard and magnetic safety interlocks meet the latest cETLus and ETL-Sanitation standards.
Included Accessories:
- A fixed stainless-steel mixing bowl that is sturdy and durable.
- A heavy-duty stainless-steel spiral dough hook and shaft for mixing and kneading dough.
- A hydraulic lifter/tilter assembly that makes it easy to access the mixing bowl.
- A removable bowl guard that can be quickly removed for easy cleaning.
Product Specs
| Specification | Value |
|---|---|
| Finished dough capacity | 350 lb / 160 kg |
| Hook speed | 1st speed 95 RPM | 2nd speed 190 RPM |
| Bowl speed | 15 RPM |
| Motor power | Spiral 15 HP (11 kW) | Bowl 1 HP (0.75 kW) | Lifter 3 HP (2.2 kW) |
| Electrical (standard) | 220 V / 60 Hz / 3 Ph • 57.3 A total • Hard-wired with local disconnect |
| Electrical (optional) | 400 V / 50 Hz / 3 Ph • 29 A total |
| Dimensions (W × D × H) | SL160LH 96″ × 60″ × 91″ SL160LB 96″ × 60″ × 71″ |
| Net weight | SL160LH 4,188 lb (1,900 kg) SL160LB 3,527 lb (1,600 kg) |
| Certifications | cETLus • ETL-Sanitation |
| Warranty | One-year, on-site parts & labour |
Features
| Specification | Value |
|---|---|
| Manufacturer | Univex |
| Certifications | cETLus, ETL-Sanitation |
| Height | 129.0in |
| Width | 89.0in |
| Depth | 54.63in |
| Shipping Weight | 4538.0lbs |
| Dough Capacity | 201 - 400 lbs |
| Housing Construction | painted |
| Bowl Type | tilting |
| Speed | 2-speed |
| Attachments | bowl, dough hook |
| Controls | timer |
| Specifications | Silverline Spiral Mixer, 350 lb. dough capacity, 2 speeds, reverse function, control board with separate timers, includes: built-in lifter, stainless steel bowl, spiral dough hook & shaft, separate bowl & agitator motor, belt drive, bowl (1 hp, 4.48 Amps, .75 kW) and spiral (15 HP, 52.8 Amps, 11.0 kW) and lift (3 HP, 13.0 amps, 2.2 kW), cETLus, ETL-Sanitation |
